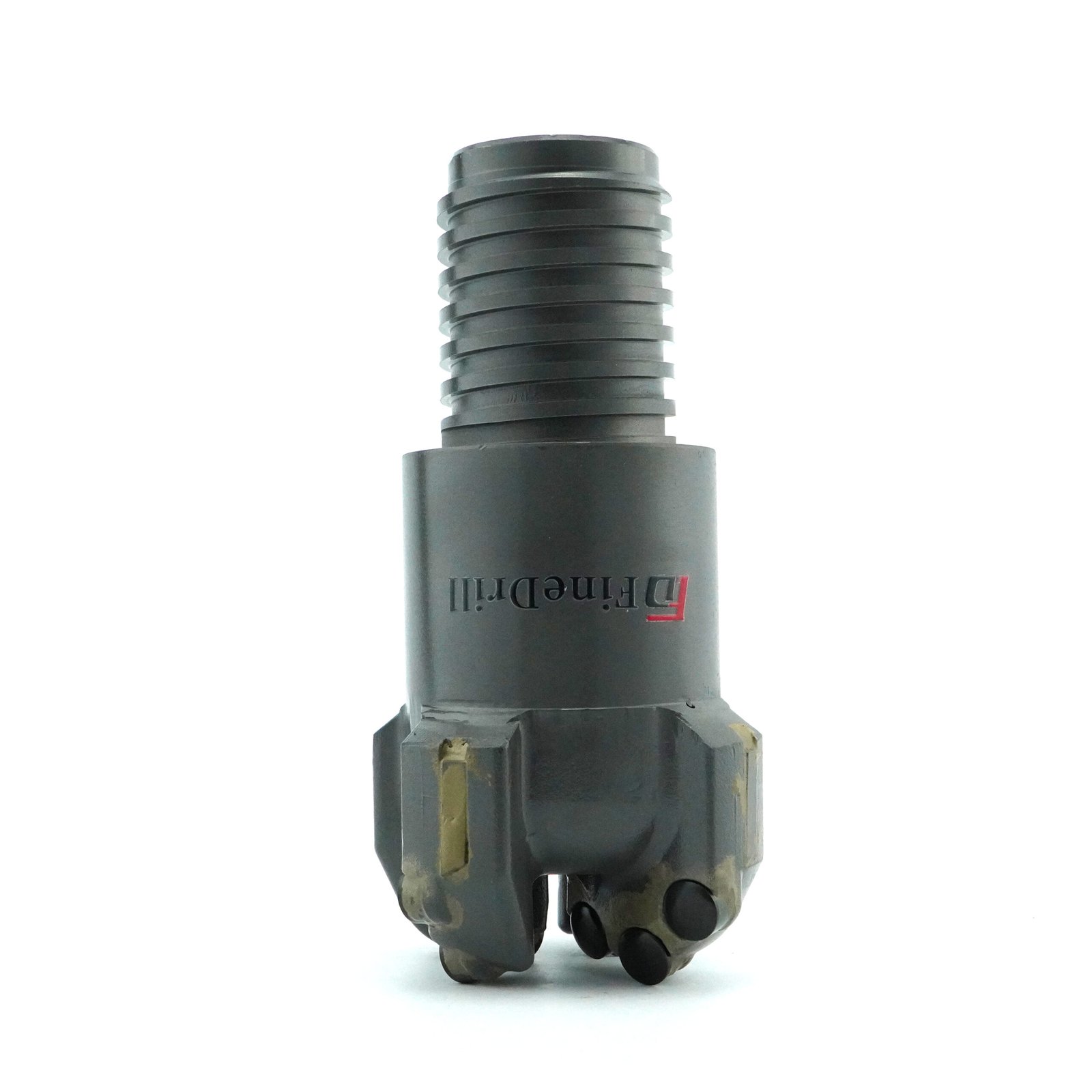

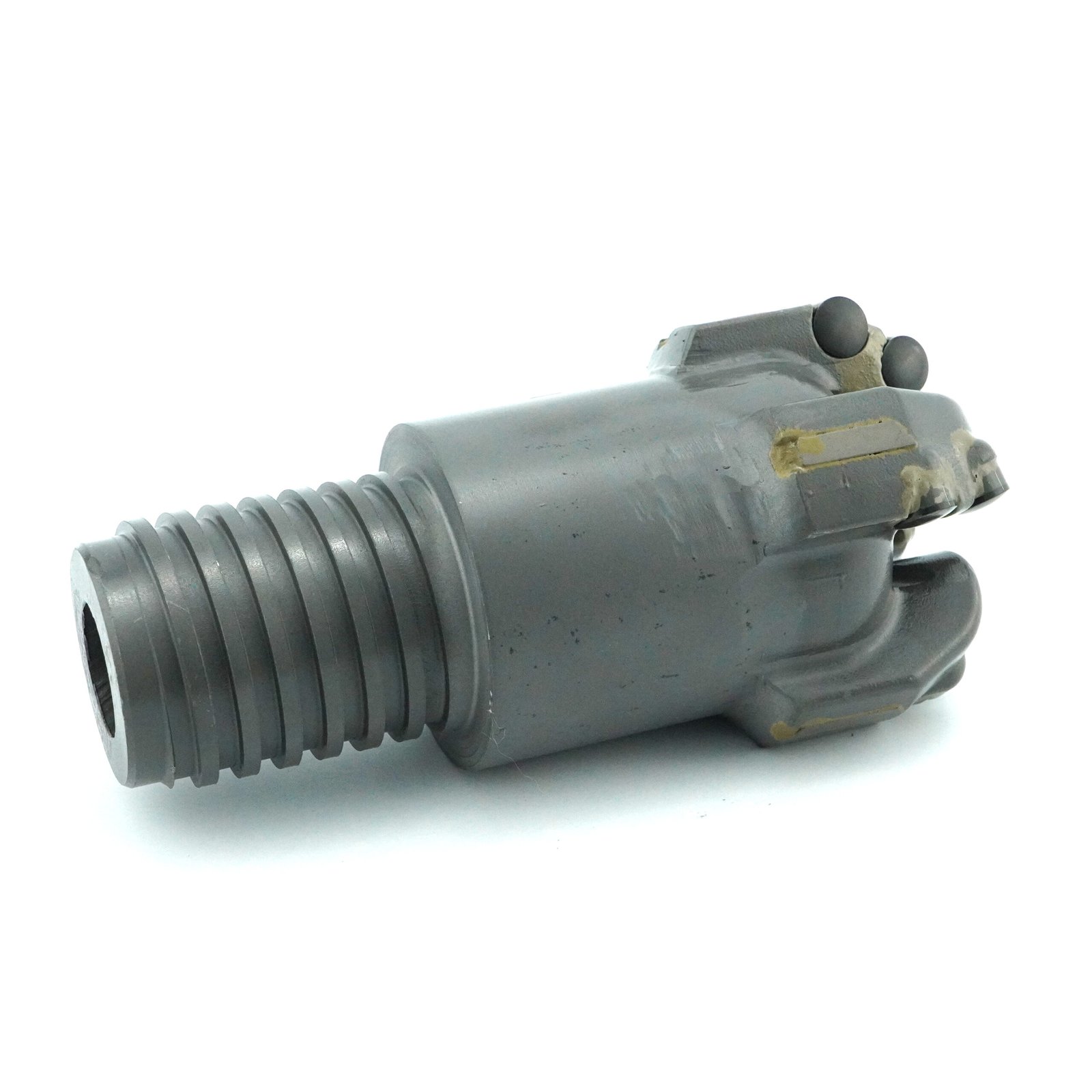

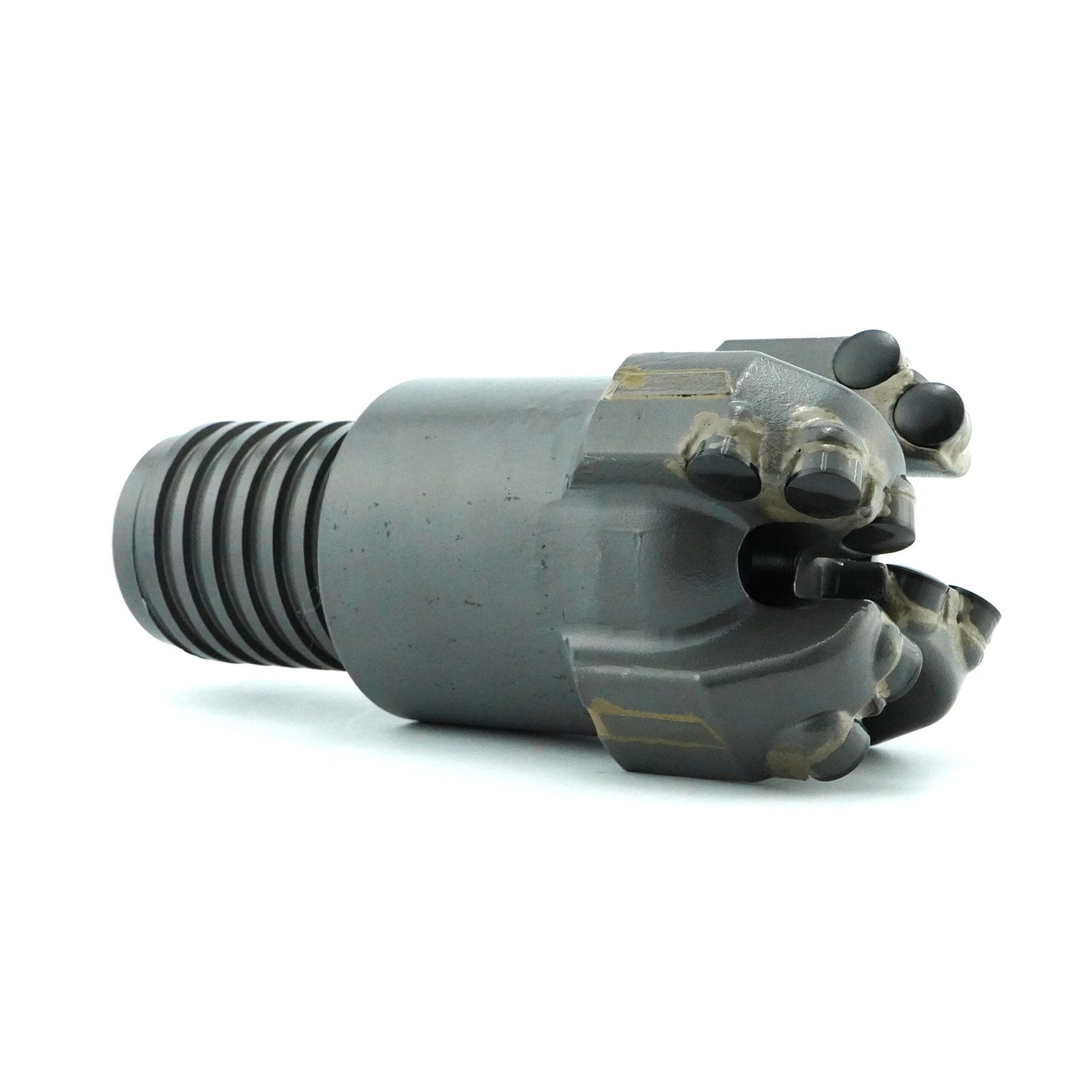

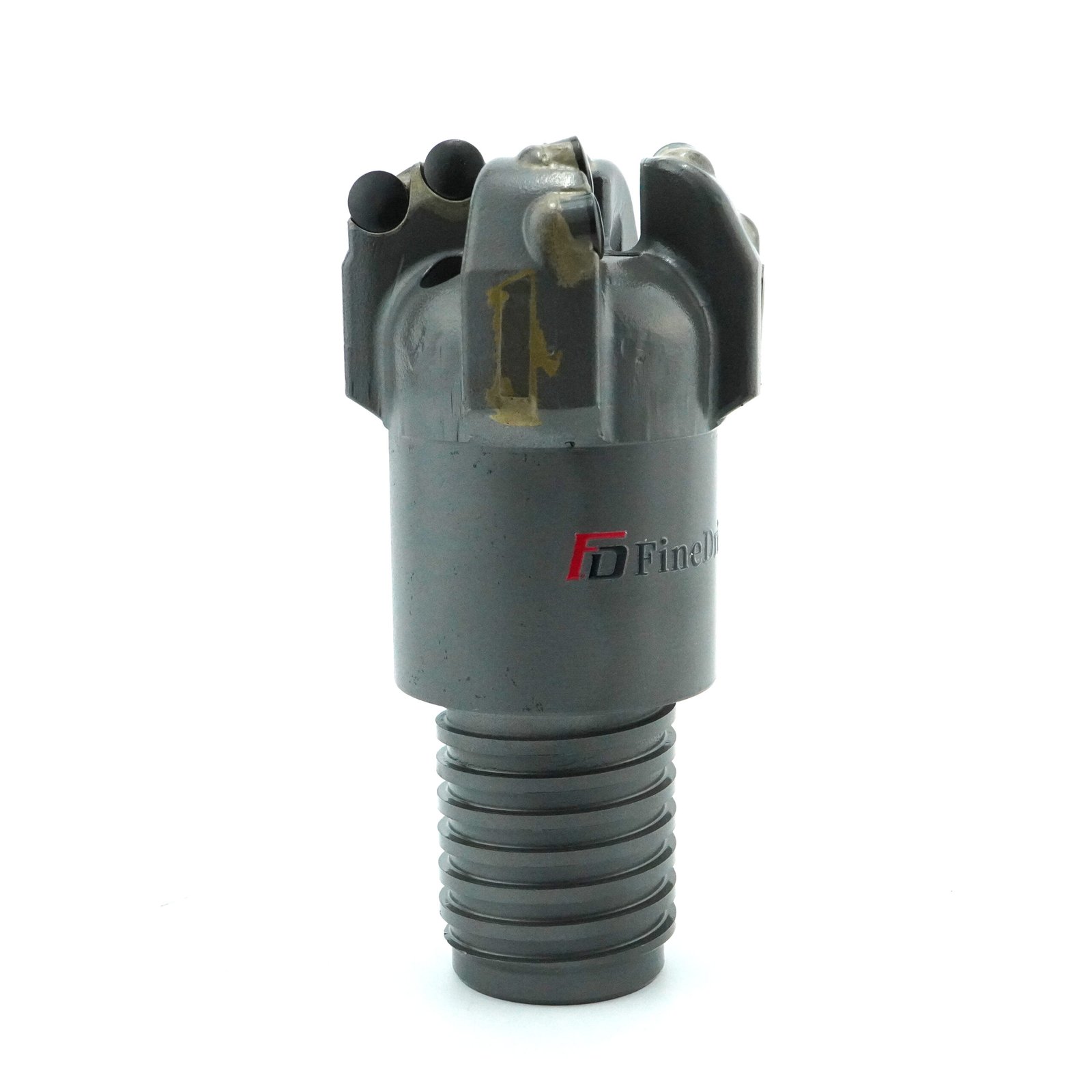

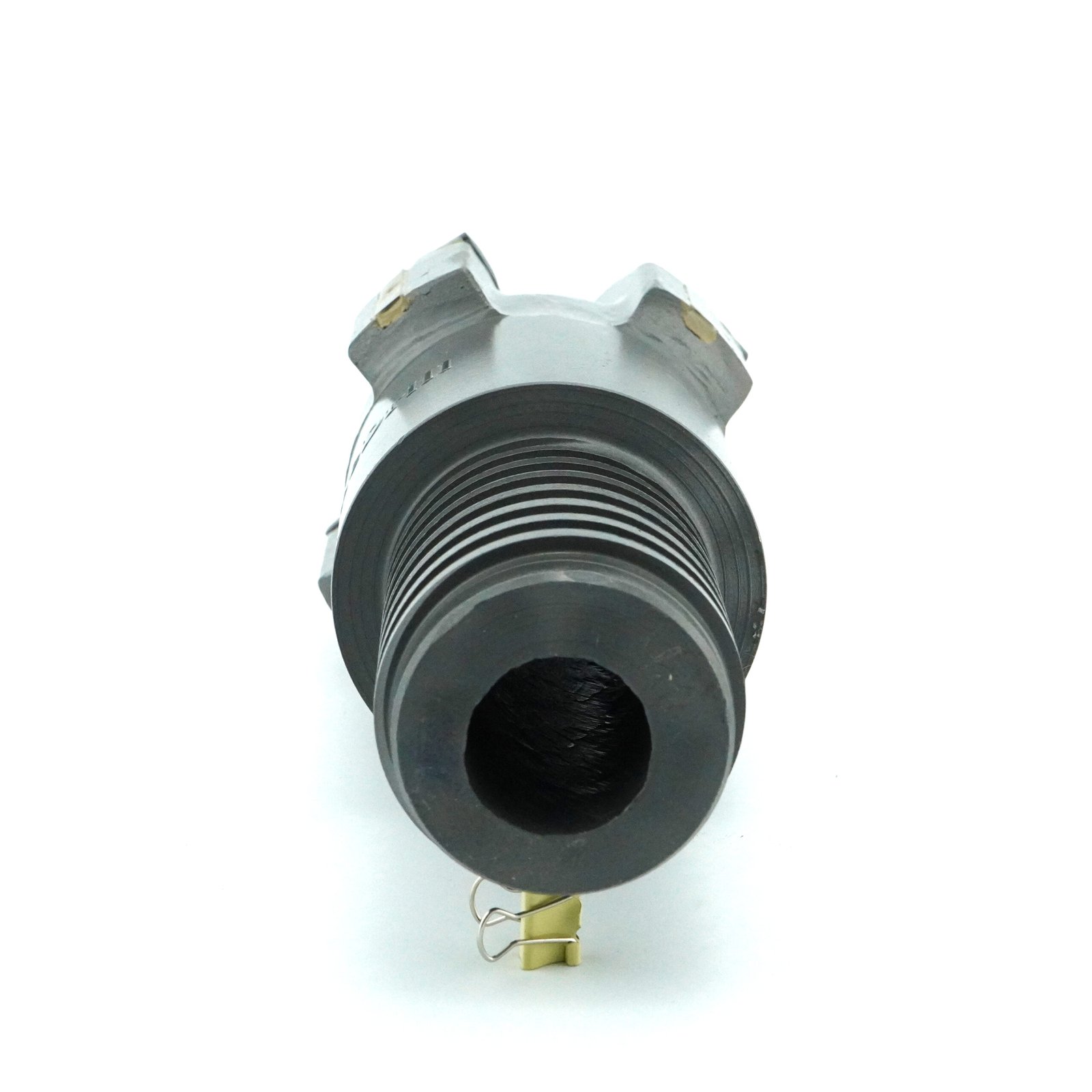

100mm Four-wing Single Tube PDC Flat Top Non-Core Diamond Drill Bit Customizable
100mm Four-wing Single Tube PDC Flat Top Non-Core Diamond Drill Bit Customizable - 图片 2
100mm Four-wing Single Tube PDC Flat Top Non-Core Diamond Drill Bit Customizable - 图片 3
100mm Four-wing Single Tube PDC Flat Top Non-Core Diamond Drill Bit Customizable - 图片 4
100mm Four-wing Single Tube PDC Flat Top Non-Core Diamond Drill Bit Customizable - 图片 5

100mm Four-wing Single Tube PDC Flat Top Non-Core Diamond Drill Bit Customizable

  1. High-Efficiency Drilling
    • The four-wing single tube design ensures fast and efficient drilling, suitable for various hard materials.
  2. PDC Diamond Cutters
    • Equipped with PDC (Polycrystalline Diamond Compact) cutters, offering excellent wear resistance and cutting performance, extending service life.
  3. Flat Top Design
    • The flat top design provides stable and precise drilling, reducing vibration and improving accuracy.
  4. Non-Core Structure
    • The non-core structure allows for smooth debris removal, enhancing drilling efficiency and reducing clogging.
  5. Wide Application
    • Ideal for drilling in concrete, masonry, and other hard materials, making it versatile for construction and engineering projects.

Parameter
