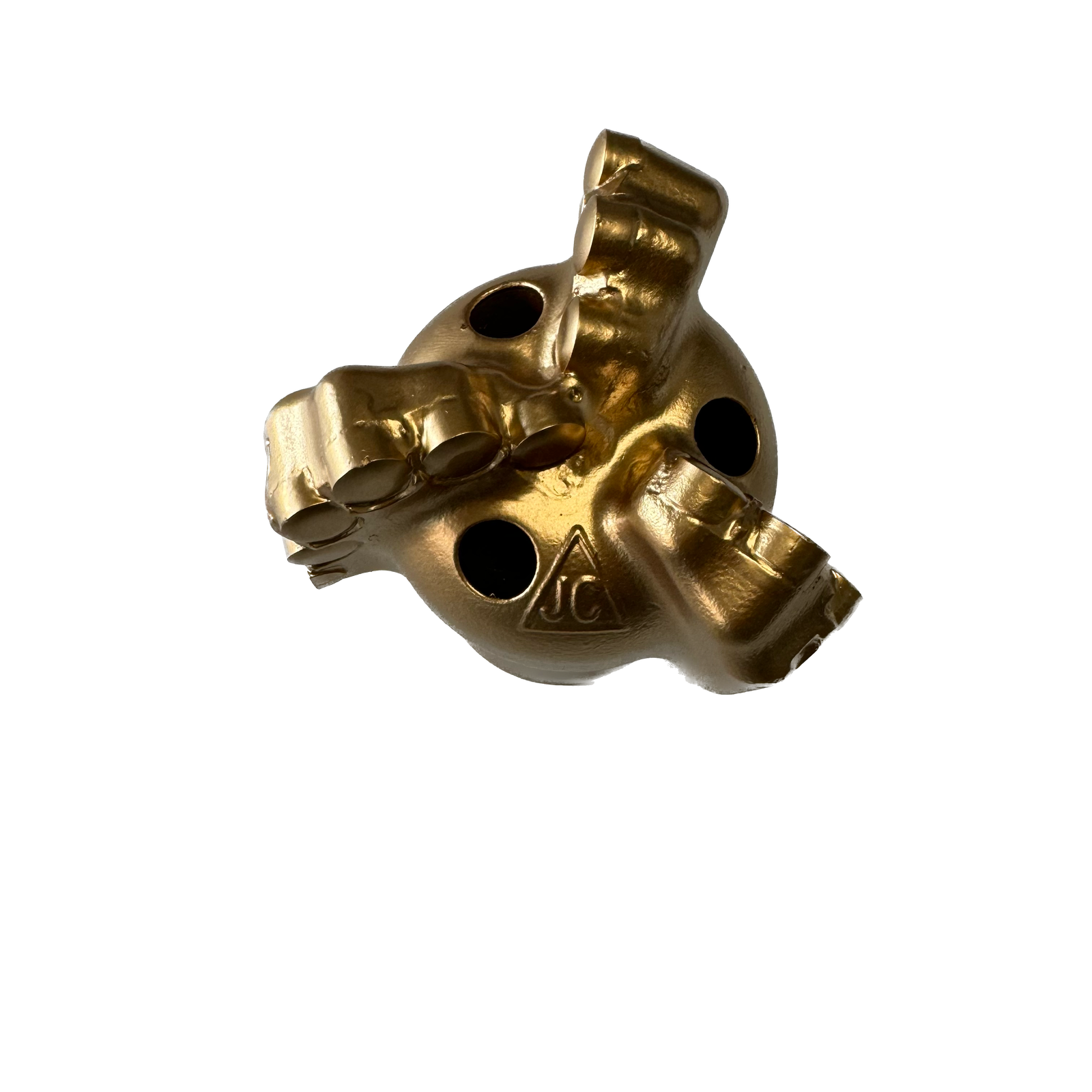

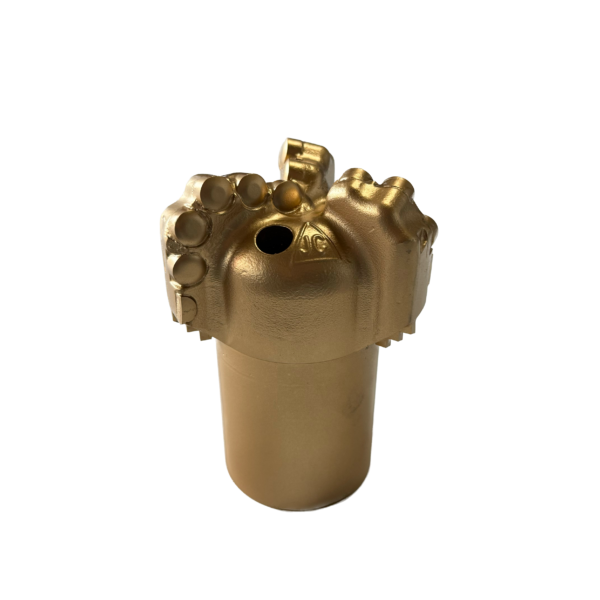

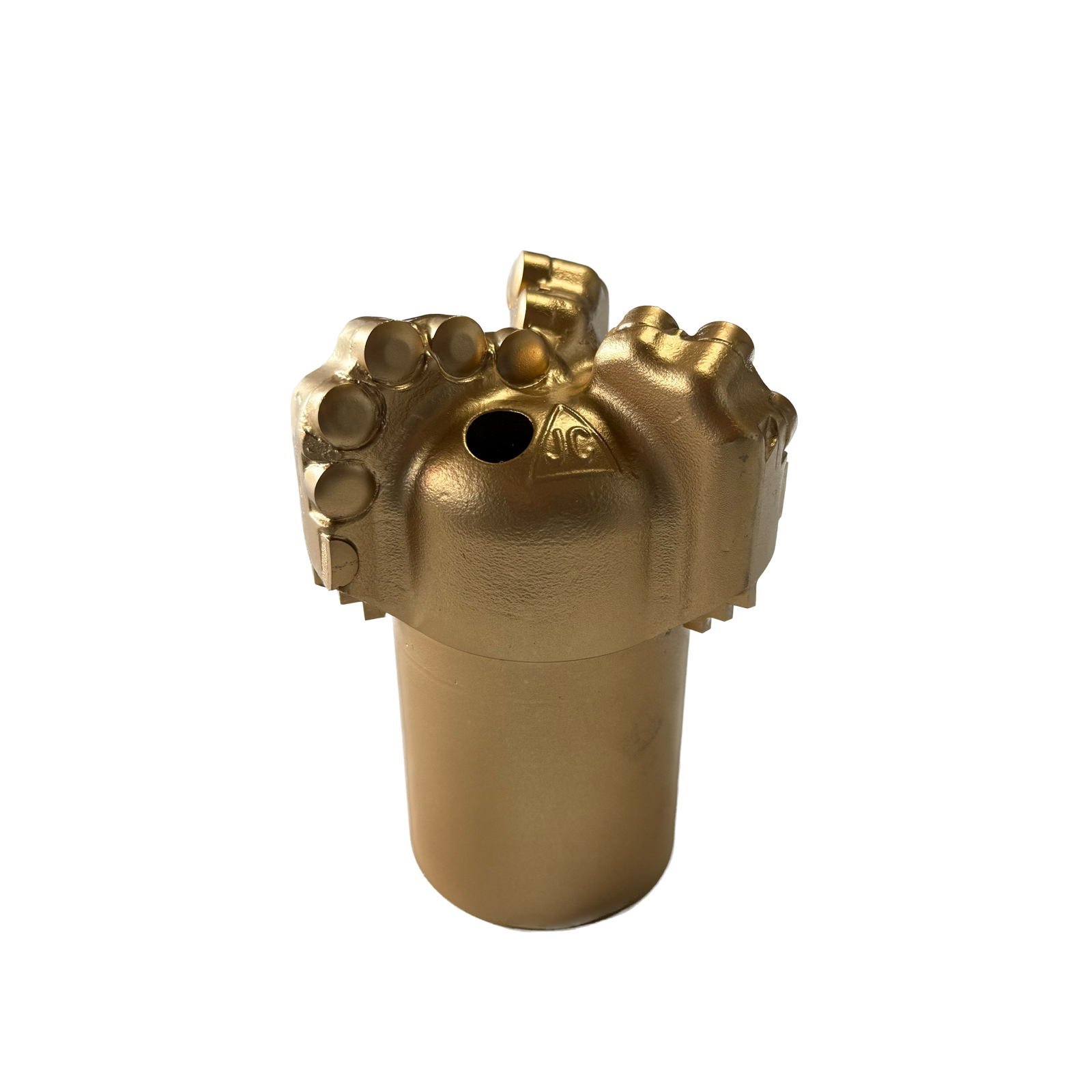

113mm Three-Wing Arc PDC Drill Bit for Geological and Mining Drilling
-
High-Quality PDC Drill Bit:
-
The 113mm three-wing arc PDC drill bit is designed for high-performance drilling in various geological formations. It features a steel body with high-strength tungsten carbide PDC cutters, offering superior wear resistance and impact resistance. This bit is ideal for drilling in soft to hard formations, making it suitable for a wide range of applications.
-
-
Three-Wing Arc Design:
-
The bit features a three-wing arc design, providing high stability and good guidance. This design ensures smooth and efficient drilling, significantly improving drilling efficiency and bit life. The arc edges are fitted with PDC cutters, which expand the edge contact area, increasing cutting capacity and enhancing drilling speed and penetration.
-
-
Versatile Applications:
-
Suitable for a wide range of applications including geological exploration, coal mine drilling, water well drilling, and geothermal drilling. It is particularly effective for drilling in oil and gas fields, coal mining, and other mining operations.
-
-
Product Specifications:
-
Diameter: 113mm
-
Number of Wings: 3
-
Thread Connection: 2 3/8 REG (Customizable)
-
Application: Medium-hard to hard formations with low compressive strength, such as hard shale, limestone, sandstone, dolomite, hard gypsum, marble, etc.
-
-
Usage and Maintenance Tips：
Avoid sudden reverse rotation to prevent PDC cutter detachment.
Ensure sufficient air flow and pressure to extend bit life.
Run-in new bits at low speed for the first 30 minutes.
Reduce drill pressure and speed in harsh conditions to prevent breakage.
Inspect the hole for debris before changing bits.
Regularly replace stabilizers for stable drilling.
Keep the drilling area clean to prevent debris interference.
Inspect threads and teeth before installing new bits.
Ensure proper lubrication and secure connection before use.
Avoid bent drill rods to prevent uneven force and wear.
Select the appropriate bit for specific conditions and methods.
Inspect the bit thoroughly before use.
