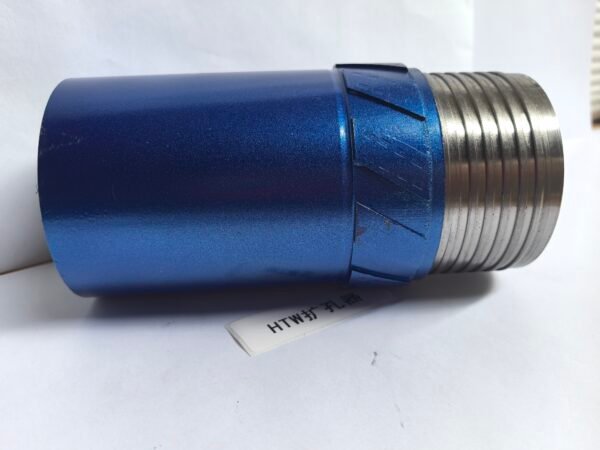

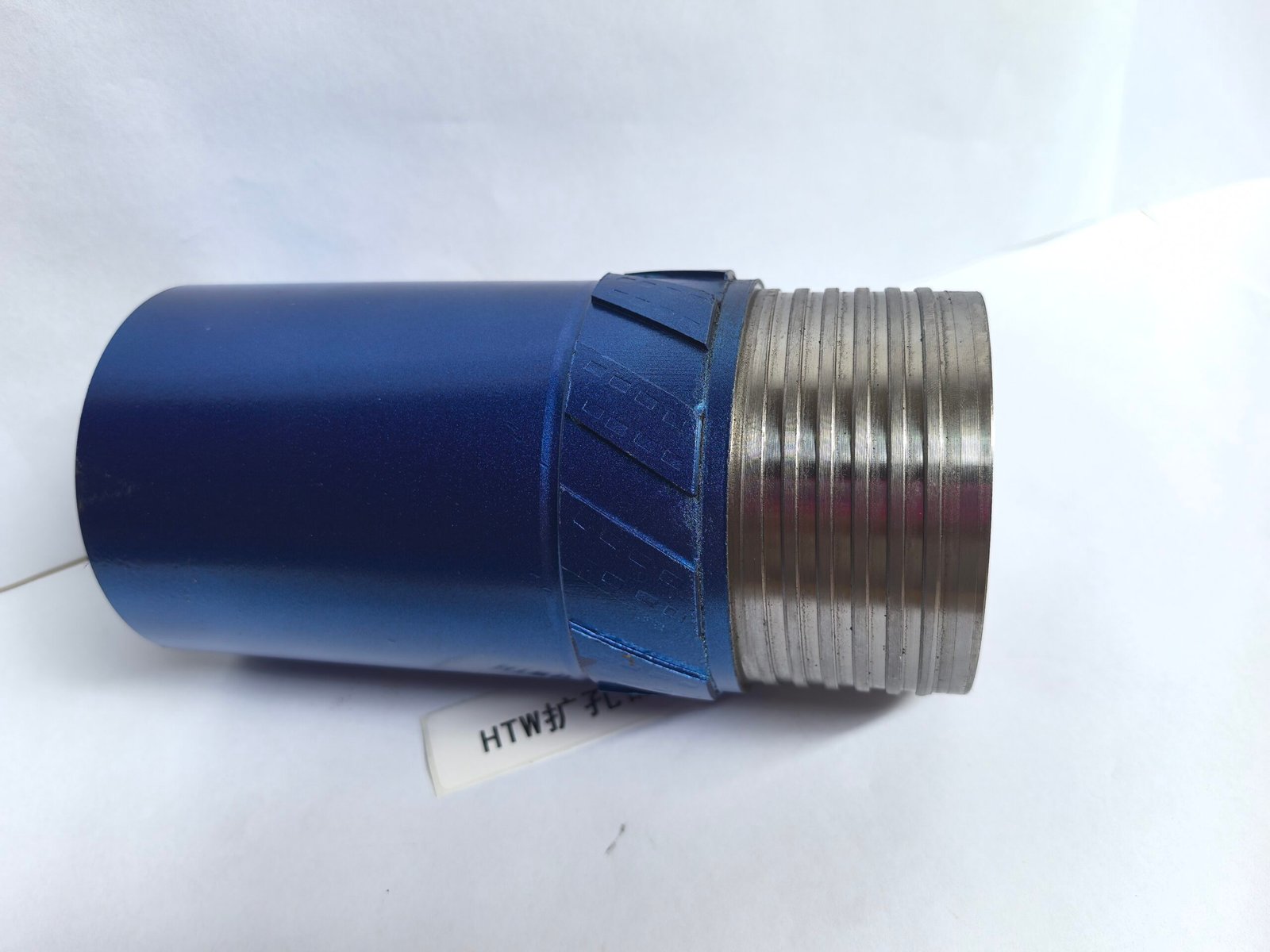

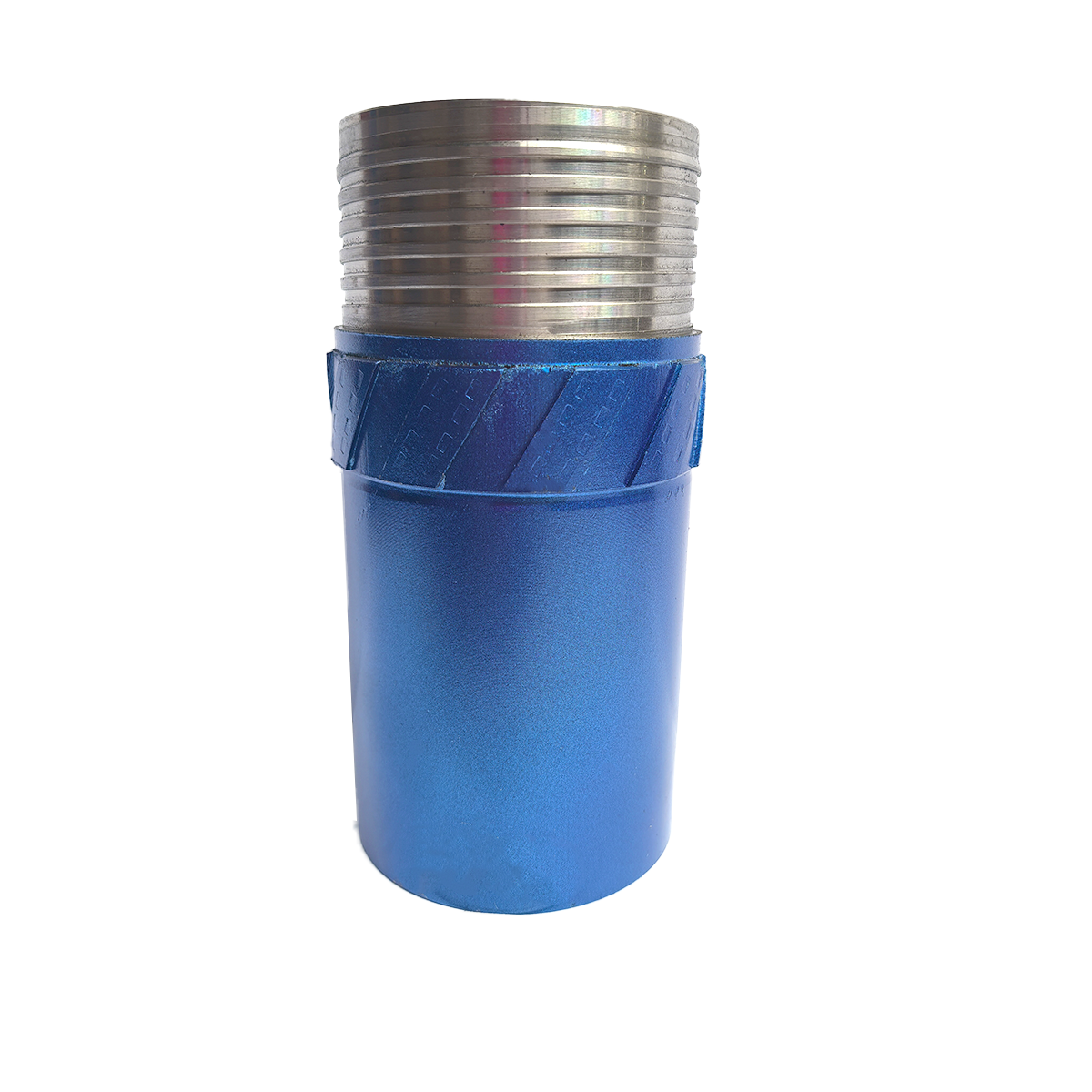

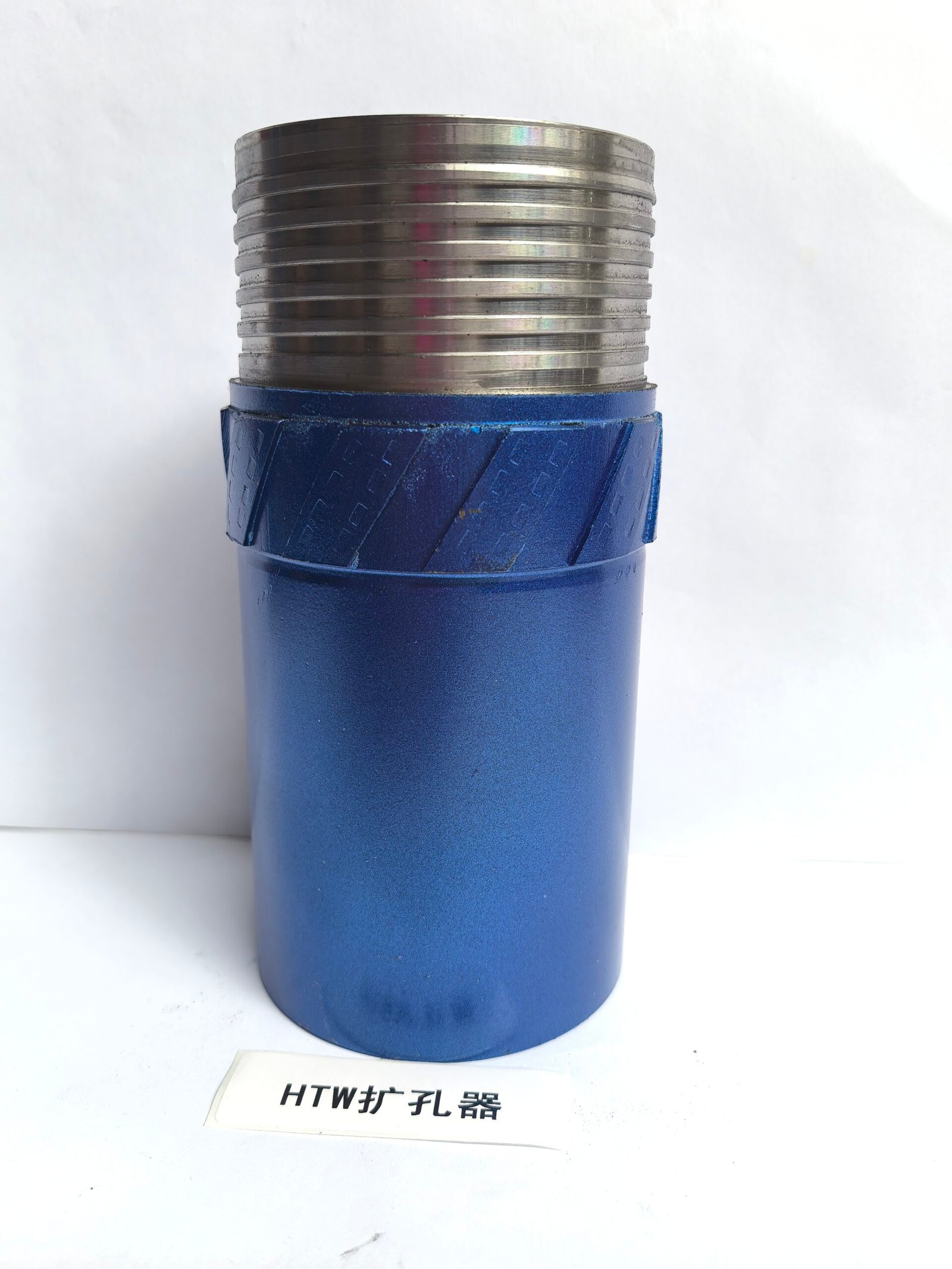

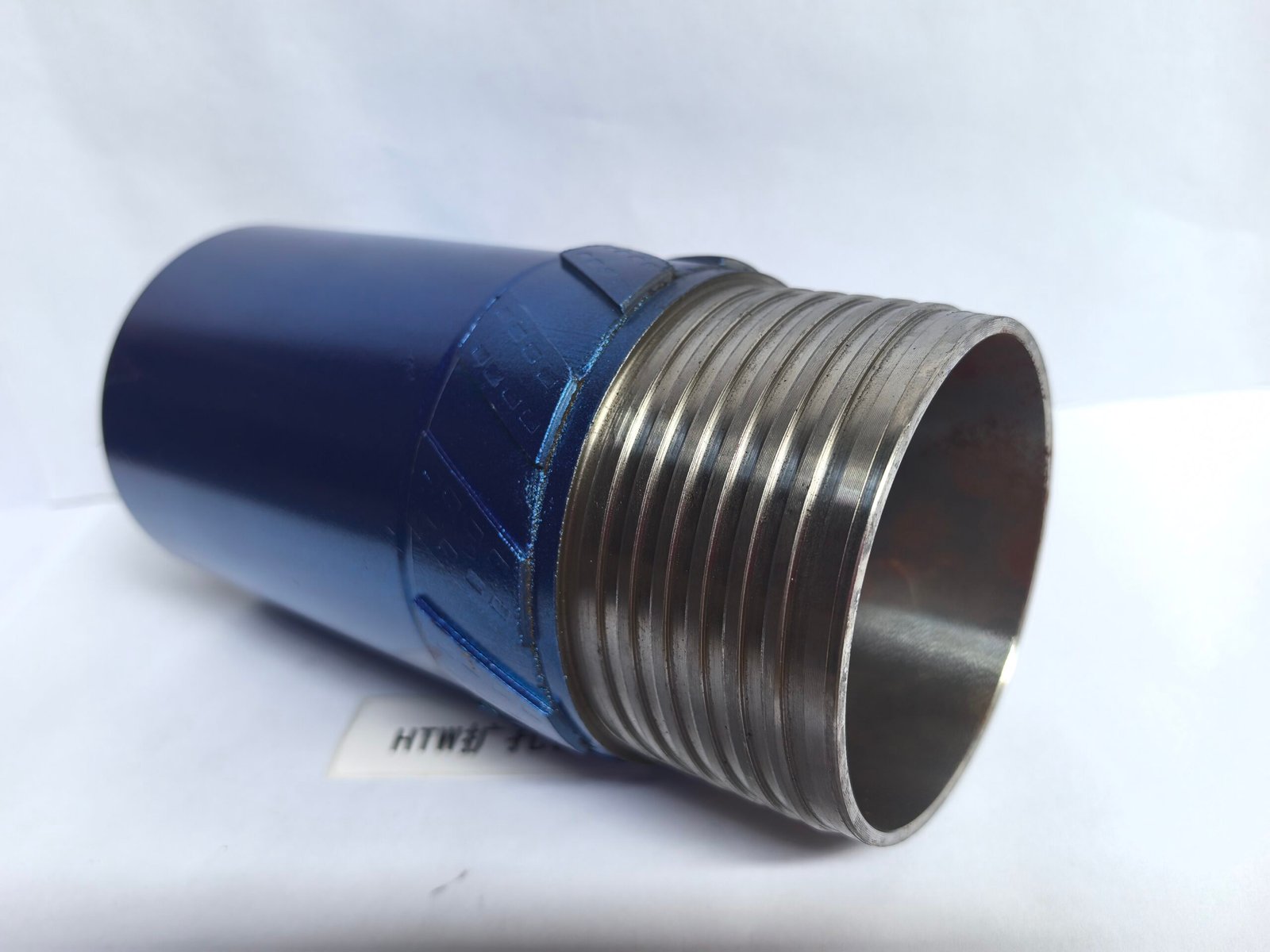

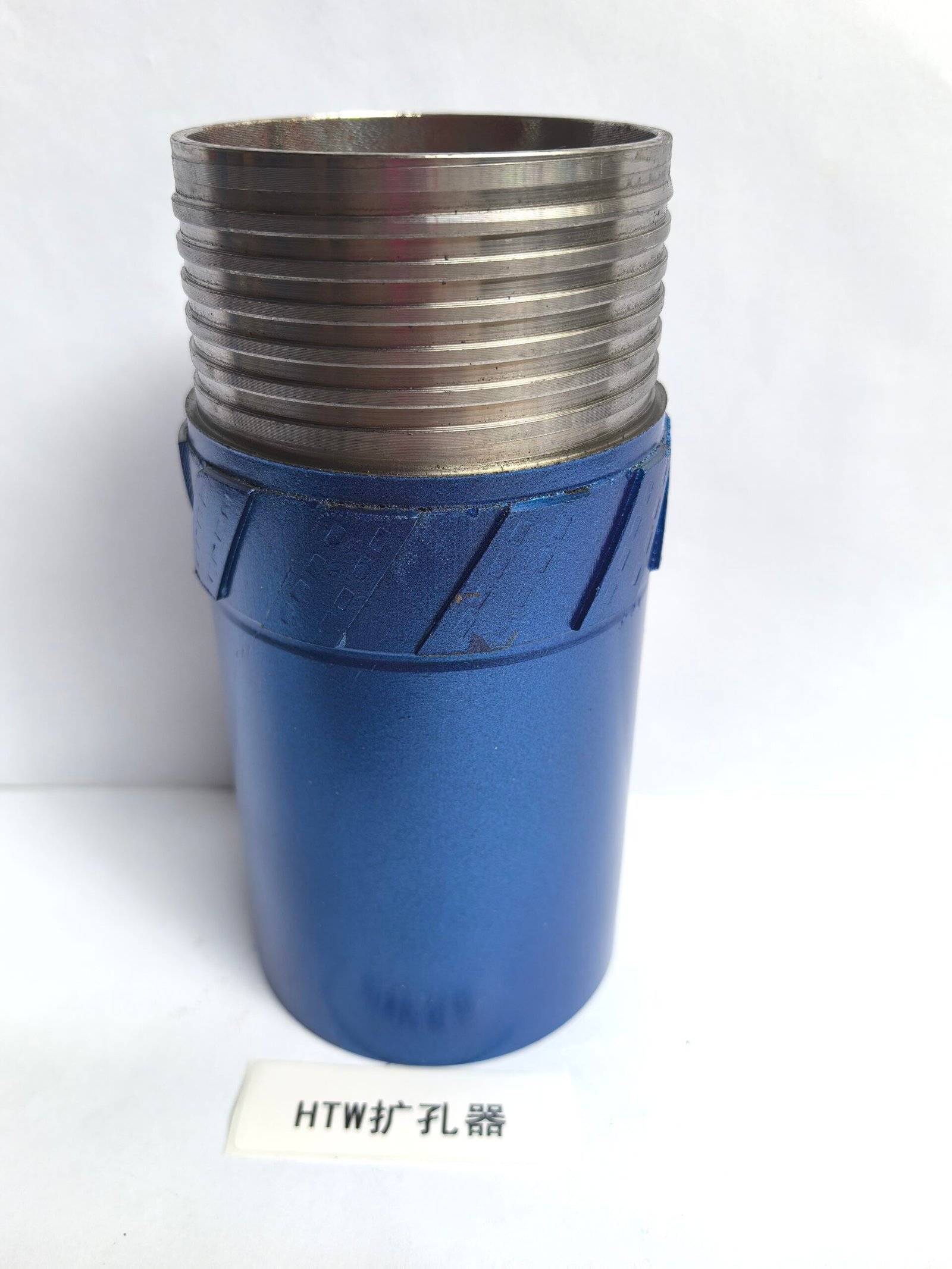

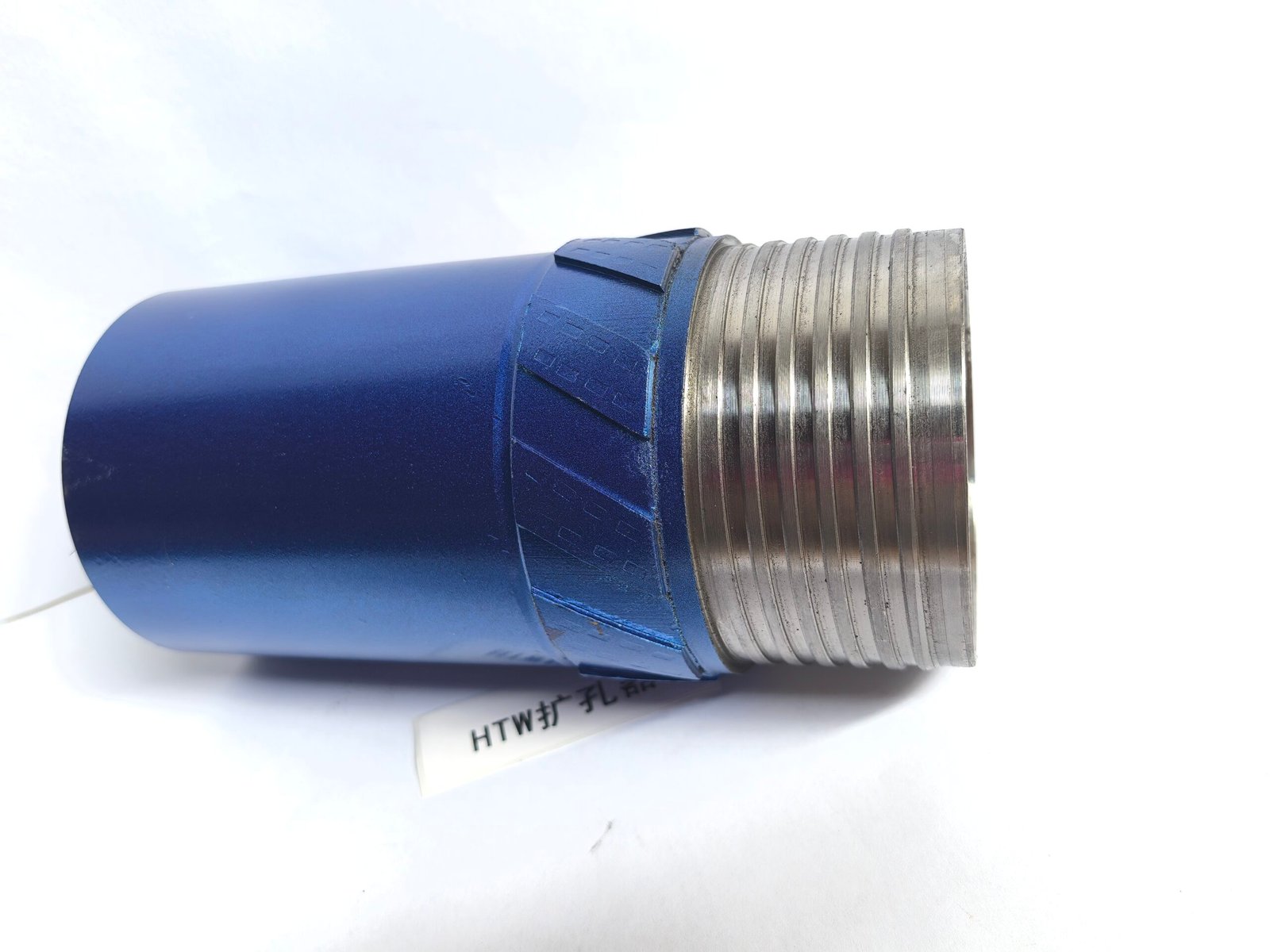

77mm HTW Diamond Reaming Shell
-
Size and Specification:
-
Outer diameter of 77mm, suitable for HTW series drilling operations.
-
-
Material and Construction:
-
Made with high-quality natural or synthetic diamonds embedded in a highly resistant matrix. The steel body has threads for connecting to the drill bit and core barrel.
-
-
Main Functions:
-
Enlarges the hole to maintain the required diameter.
-
Stabilizes the drill bit to reduce deviation.
-
Cleans the drill hole to ensure smooth passage of drilling tools and replacement bits.
-
-
Application:
-
Widely used in geological exploration, mining drilling, and water well drilling, suitable for various rock formations.
-
-
Design Features:
-
Spiral water channels for efficient water flow and cuttings removal.
-
Tungsten carbide inserts on the leading edge for enhanced wear resistance.
-
Conical front edge design for easier entry into the drill hole.
-
