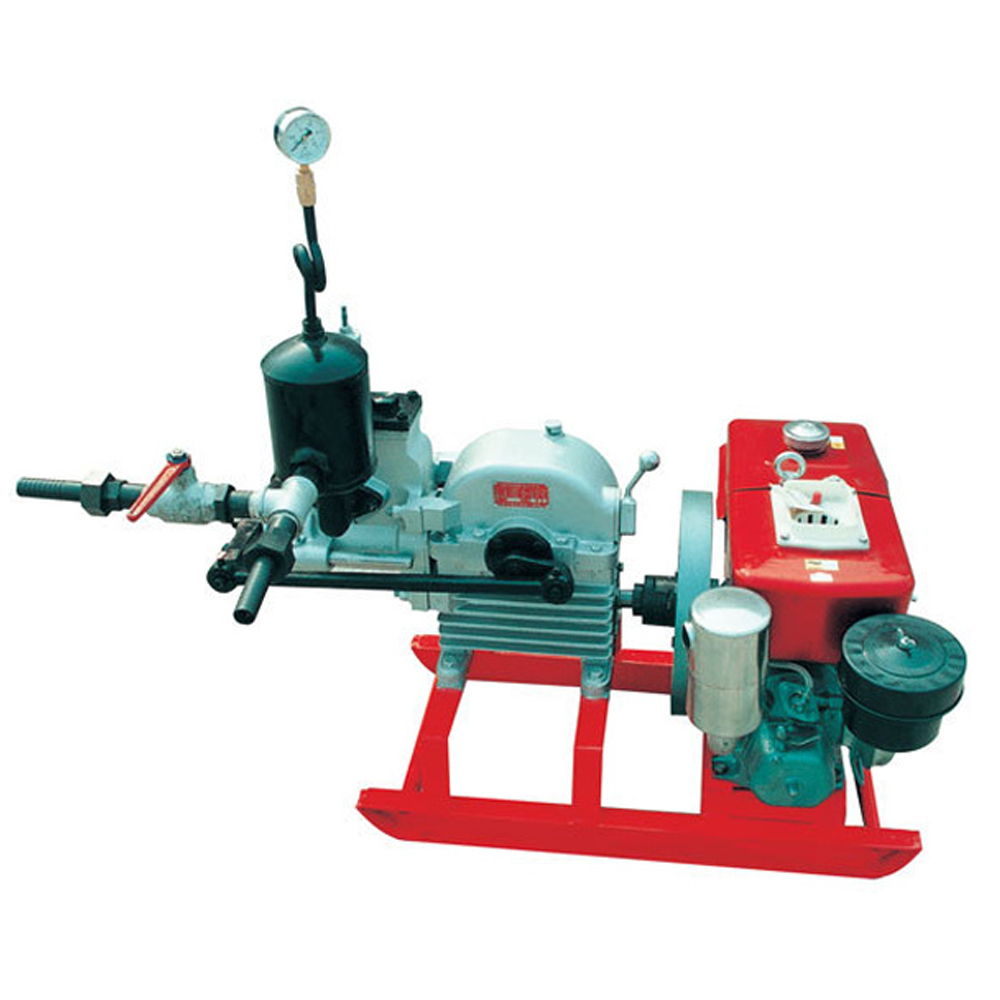

BW-120QF Mud Pump
BW-120QF mud pump is a horizontal single-cylinder reciprocating double-acting piston pump, which is mainly used to supply flushing fluid into the well during core drilling or blasthole drilling. This pump can not only discharge clean water, but also discharge mud of considerable concentration. The pump has small size and light weight, which is convenient for transportation in mountainous areas.
Parameter
|
Type |
Horizontal single cylinder reciprocating double acting piston pump |
|
|
Cylinder diameter |
80mm |
|
|
journey |
120mm |
|
|
Reciprocating times |
126 times/min |
|
|
flow |
120L/min |
|
|
pressure |
1.4Mpa |
|
|
Input Power |
4.41KW |
|
|
Suction pipe diameter |
φ38mm (1½″) |
|
|
Drain pipe diameter |
φ25mm (1″) |
|
|
Power Machine |
||
|
type |
diesel engine |
Electric Motor |
|
model |
Changchai R175A (water-cooled) |
Y112M-4 |
|
power |
4.41KW |
4KW |
|
Speed |
2600r/min |
1440 r/min |
|
Quality (including power) |
About 120kg |
|
|
Dimensions |
1030×570×780mm |
|
