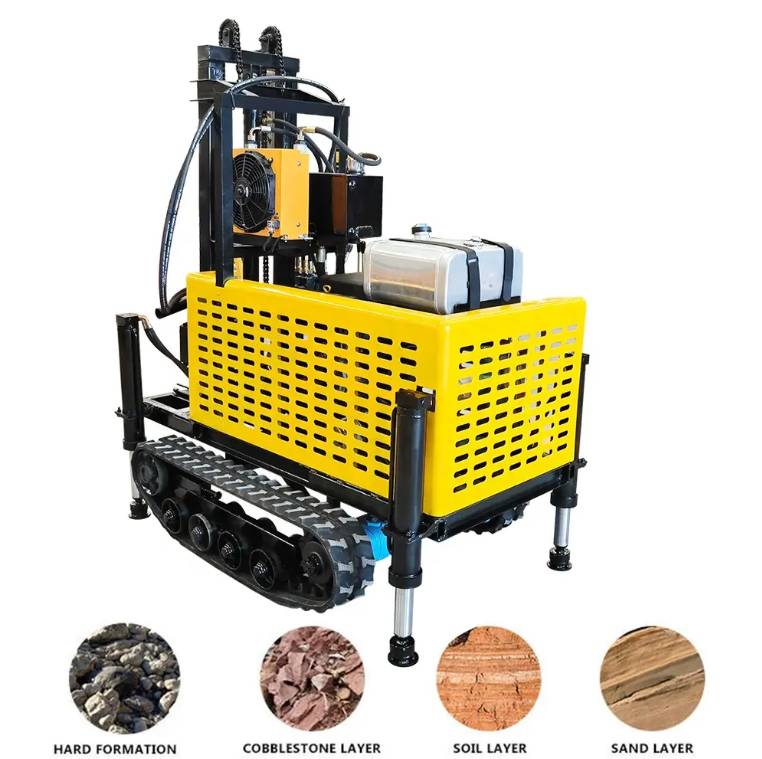

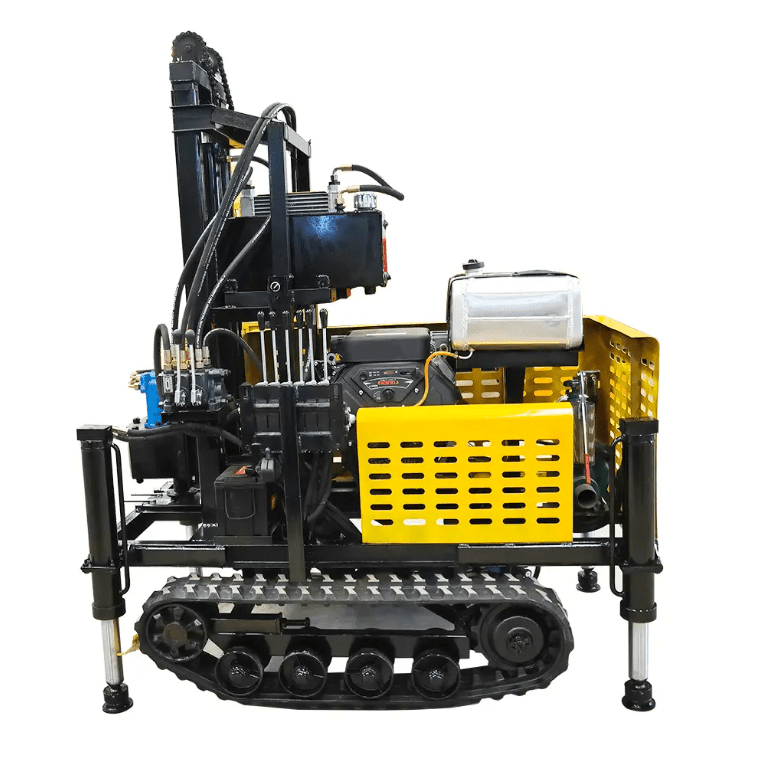

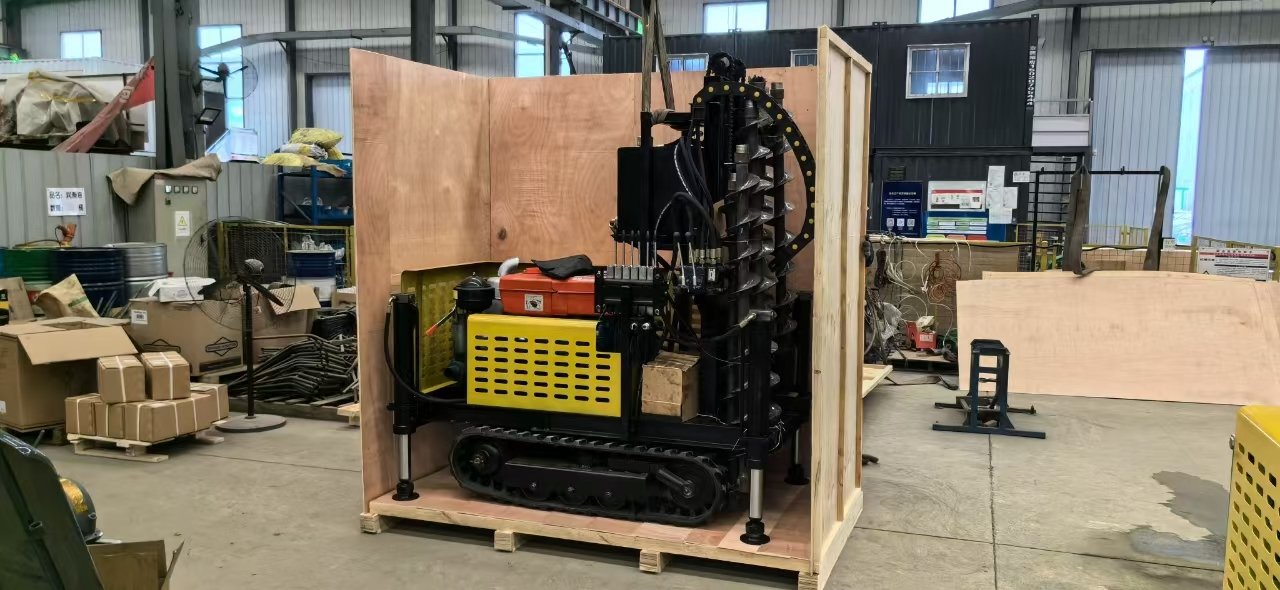

Crawler Drill Rig 150m 200m Hydraulic Track Mounted Drill Rig for Water Well Drilling
-
High-Efficiency Drilling – Capable of drilling water wells up to 150m–200m deep, suitable for various geological conditions with reliable performance.
-
Hydraulic Power System – Equipped with advanced hydraulic technology for strong, precise, and smooth operation, enhancing productivity.
-
Track-Mounted Mobility – Crawler chassis enables easy movement on rough terrain, reducing relocation time and improving job site flexibility.
-
Multi-Purpose Application – Optimized for water well drilling but also suitable for mineral exploration, geothermal wells, and other drilling projects.
-
Durable & Low-Maintenance – Robust steel construction and wear-resistant components ensure long service life with minimal downtime.
Parameter
| Parameter Category | Product Model | HR-150 Crawler Drill Rig |
|---|---|---|
| General Parameters | Power Source | Single-cylinder diesel engine / 25 HP |
| Chassis | Hydraulic rubber crawler track chassis | |
| Weight | 950 kg | |
| Dimensions | 2000 × 1100 × 2100 mm | |
| Power Head | Hydraulic motor gearbox type | |
| Hydraulic Motor Model | BM5-200 | |
| Feed System | Hydraulic cylinder feed | |
| Hydraulic Outriggers | 4 (standard) | |
| Technical Parameters | Drill Pipe Specification | 50 × 1500 mm |
| Drilling Diameter | 80–300 mm | |
| Drilling Depth | 1–200 m (customizable) | |
| Slide Frame Stroke | 2400 mm | |
| Lifting Height | 2600 mm | |
| Single Feed Length | 1500 mm |
