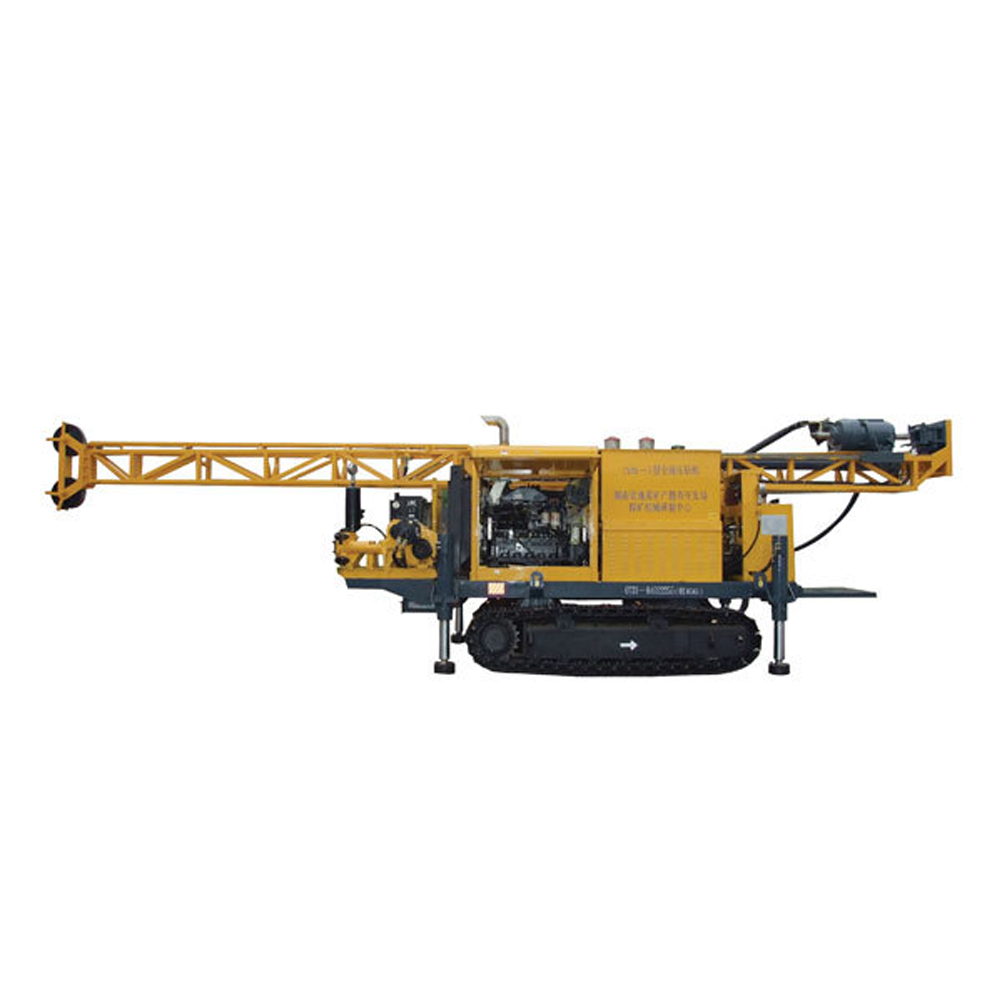

Changtan CYDX-5 crawler type full hydraulic power head core drill is a newly developed product of our factory. It is a high-power full hydraulic drive deep hole core drill, suitable for a variety of efficient drilling methods such as diamond rope coring. The drilling rig is centralized and light to operate, with precise control and easy relocation. It is equipped with various parameter instruments that can directly display the speed, drilling pressure, pump pressure and other parameters of the drilling rig during operation, which is convenient for observing the drilling situation in the hole and recording data, and improving the drilling efficiency and coring rate.

Main features of CYDX-5 full hydraulic drilling rig

1. Full hydraulic transmission, stable transmission, low noise, centralized operation, convenient, labor-saving, safe and reliable.

2. The drilling rig power head gearbox is equipped with 2-speed manual transmission and driven by a variable hydraulic motor. The power head output speed can be adjusted steplessly between 0-1200r/min. It has a wide speed range and 2-speed torque output. It can be applied to various drilling processes and different drilling diameters for speed and torque requirements, especially for diamond core drilling.

3. The drilling rig is equipped with a hydraulic chuck and a hydraulic clamp, which can clamp the drill rod quickly and reliably with good centering performance. By replacing the slips, it can clamp various specifications of rope coring drill rods such as BQ, NQ, HQ, PQ, etc. It has a large diameter and is easy to use.

4. The drilling tower can slide and touch the ground for inclined hole construction. It is easy to operate, has good stability, and is safe and reliable.

5. 3.5m long feed stroke, can directly lift or add or remove a single drill rod, which reduces auxiliary work time and is conducive to improving drilling efficiency.

6. The drilling rig is equipped with a mast-type drilling tower and a stepless speed-adjustable hydraulic winch, which can lift and lower the drilling tool 9m at a time, which is safe and labor-saving.

7. The hydraulically driven winch with stepless speed regulation for rope coring has a wide speed range and is labor-saving and convenient to operate.

8. The drilling rig has a compact structure, reasonable layout, hydraulic leg lifting, and simple installation.

9. The drilling rig is powered by a Cummins diesel engine and is equipped with a crawler chassis, which allows for quick site transfers;

10. Hydraulic pump group, main valve and hydraulic motor are all imported parts of international brands. The parts are of high precision and the equipment works stably and reliably.

Drilling rig data

Height: 2,650mm

Track shoe width: 400mm

Length: 10,000mm

Maximum walking speed: 2km/h

Width: 2,250mm

Maximum climbing angle: 30°

Track height: 600mm

Total weight: 9000 kg

Main technical parameters of drilling rig

Drilling capacity (reference)

Drill pipe outer diameter 　　　　Approximate drilling depth

　BQ 1500 m

　NQ 1200m

　HQ 900m

　PQ 600m

Note: The above drilling capacity is for reference only and the data is applicable to vertical downward drilling operations in uniform geological rock formations.

Powertrain

Model: Cummins 6BTA5.9-C180 diesel engine

Cylinder capacity: 5.9 L

Number of cylinders: 6 cylinders in-line

Type: Turbocharged

Cooling method: water cooling

Power: 132KW @ 2,200r/min

Hydraulic system

Main pump rated working pressure: 28 MPa

Auxiliary pump rated working pressure: 20 MPa

Auxiliary pump rated working pressure: 18 MPa

Cooling method: air cooling

Power head

Power: variable speed/forward and reverse hydraulic motor

Maximum through hole diameter: 117mm

Speed: Manual 2 gears

Reduction ratio speed (r/min) Torque (Nm)

8.77:1 0～300 4040

2.19:1 525～1200 1050

Main winch

Lifting force: 7,700 kg (empty drum)

Lifting speed: 45m/min (empty drum)

Wire rope: 18mm

Rope capacity: 50m

Rope Coring Winch

Lifting force: 1,250 kg (empty drum)

Lifting speed: 90m/min (empty drum)

Wire rope: 6mm

Rope capacity: 1,500m

Drilling tower and feeding system

The upper drilling tower and the lower drilling tower are two-section (the middle part can be folded for short-distance transportation), and the drilling tower can slide longitudinally to support the ground.

Total length of drilling tower: 9.6m

Drilling angle: 45°～90°

Feed speed: fast and slow, with variable speed control

Feed stroke: 3,500mm

Feed force: 50.2KN

Lifting force: 152KN

Drilling tower longitudinal sliding distance: 1,000mm

Power head chuck

Opening and closing mode: Normally closed Hydraulic chuck: spring clamping, hydraulic release

Maximum through hole diameter: 117mm

Orifice holder

Opening and closing mode: hydraulic clamping, hydraulic release

Maximum through hole diameter: 117mm

Travel system

Walking speed: 2km/h

Climbing angle: 30°

Load capacity: 10t

Mud pump

Model: BW250/10

Maximum flow rate: 250L/min

Maximum pressure: 10 MPa

Dimensions

When walking (or transporting): 6500×2250×2650mm
