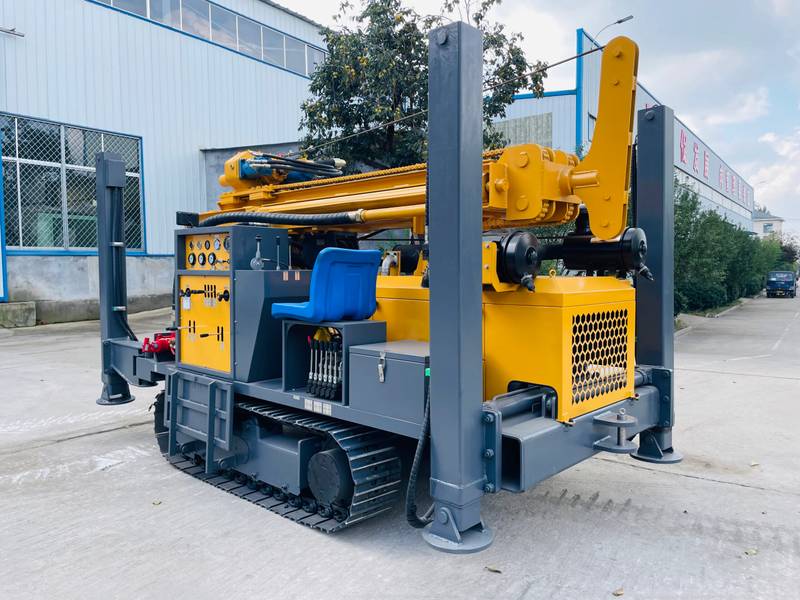

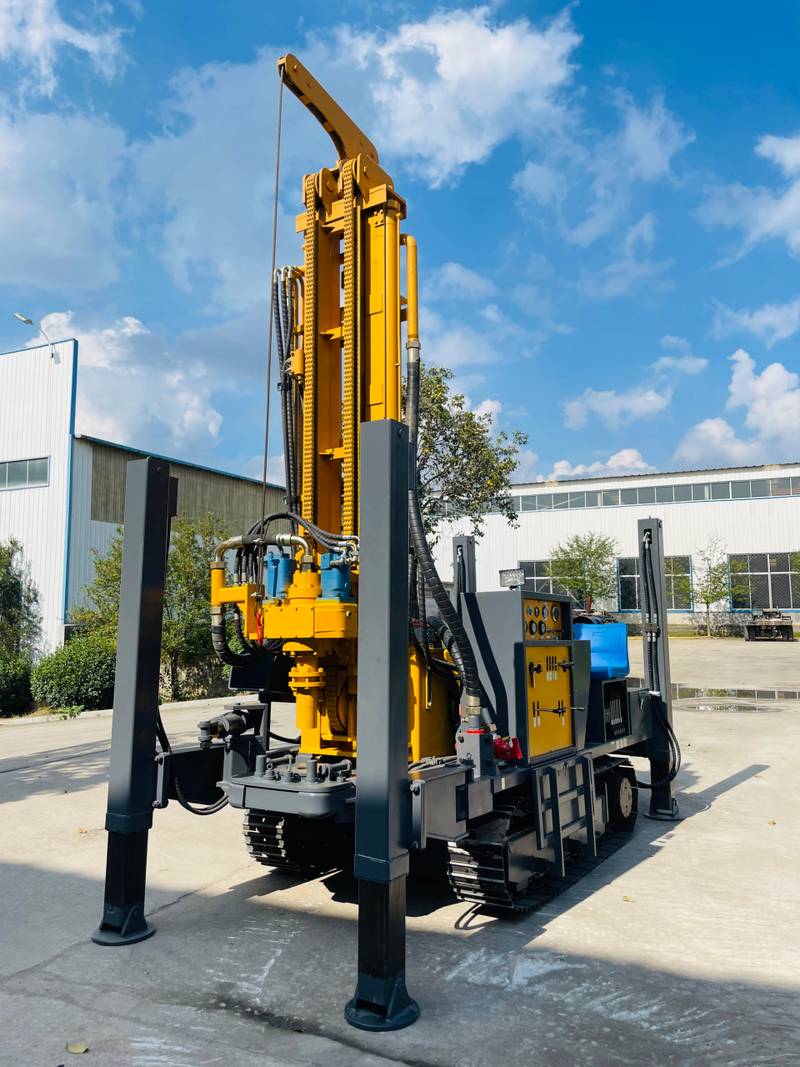

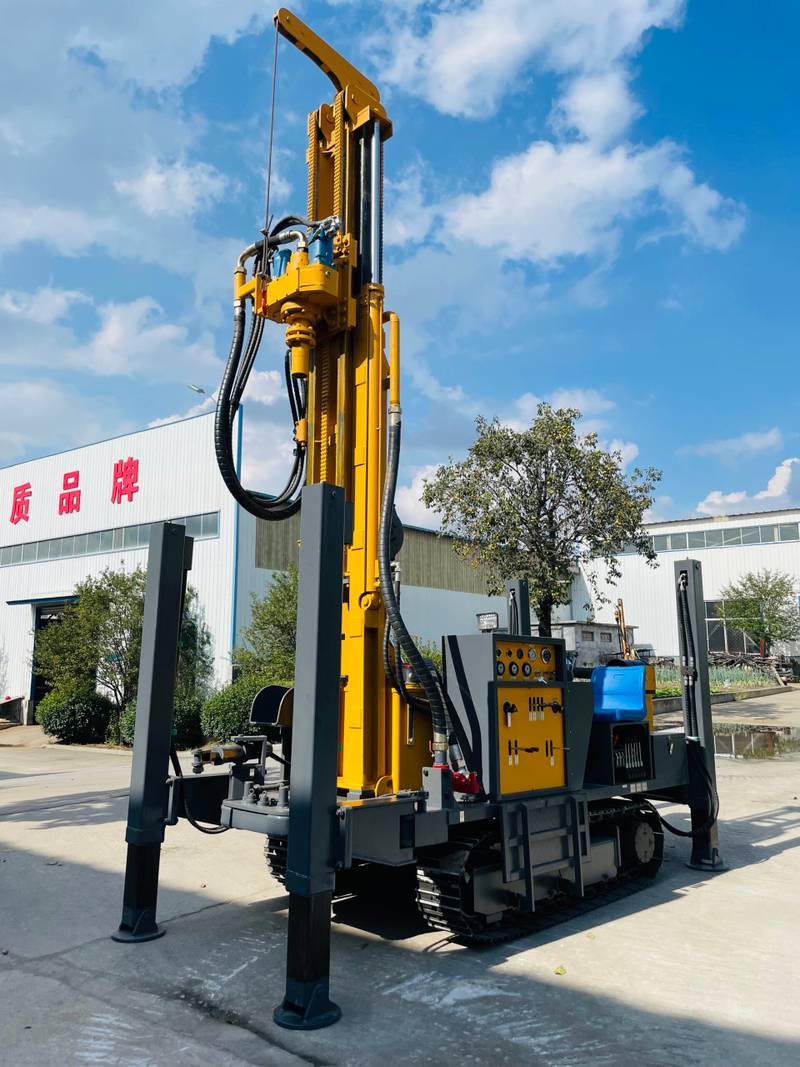

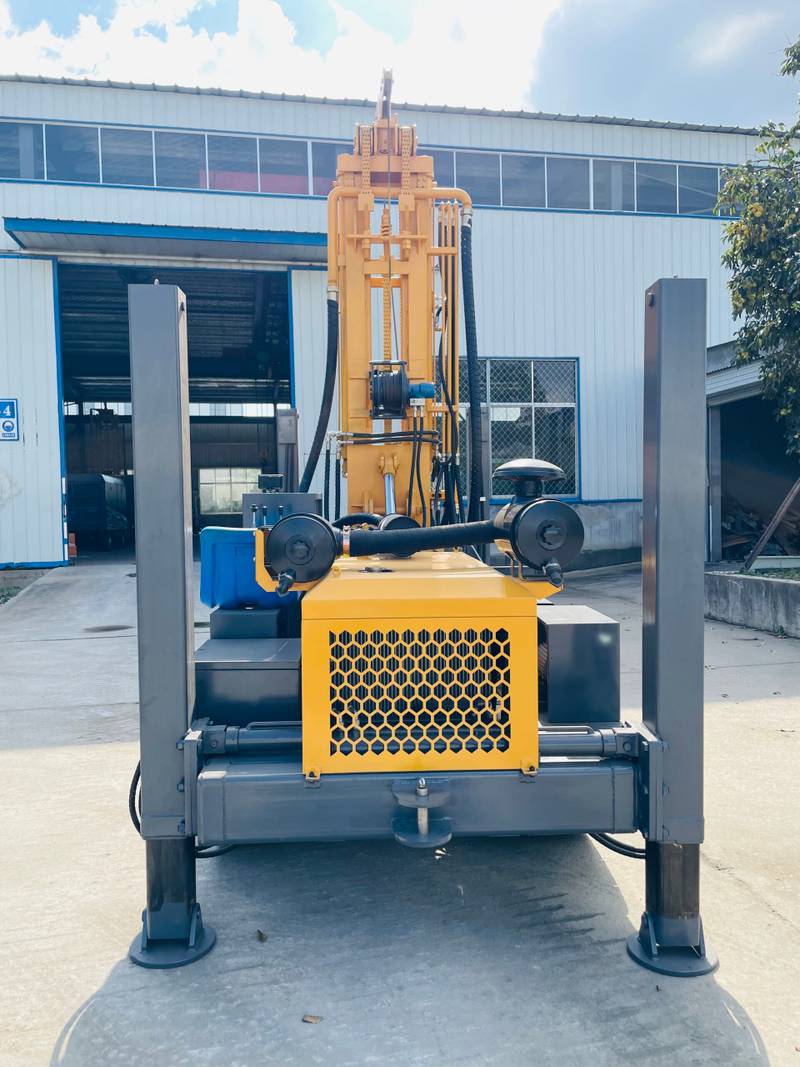

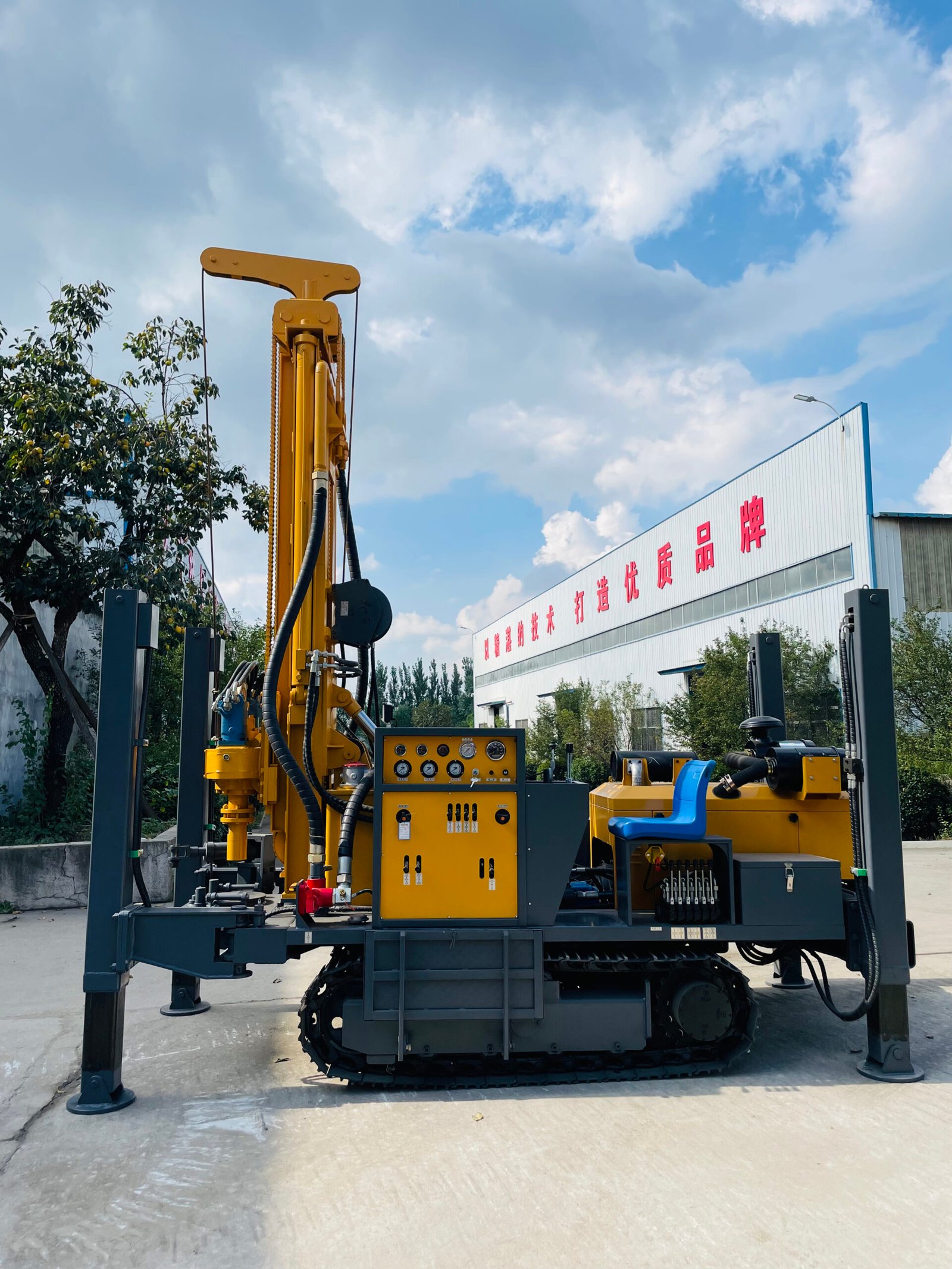

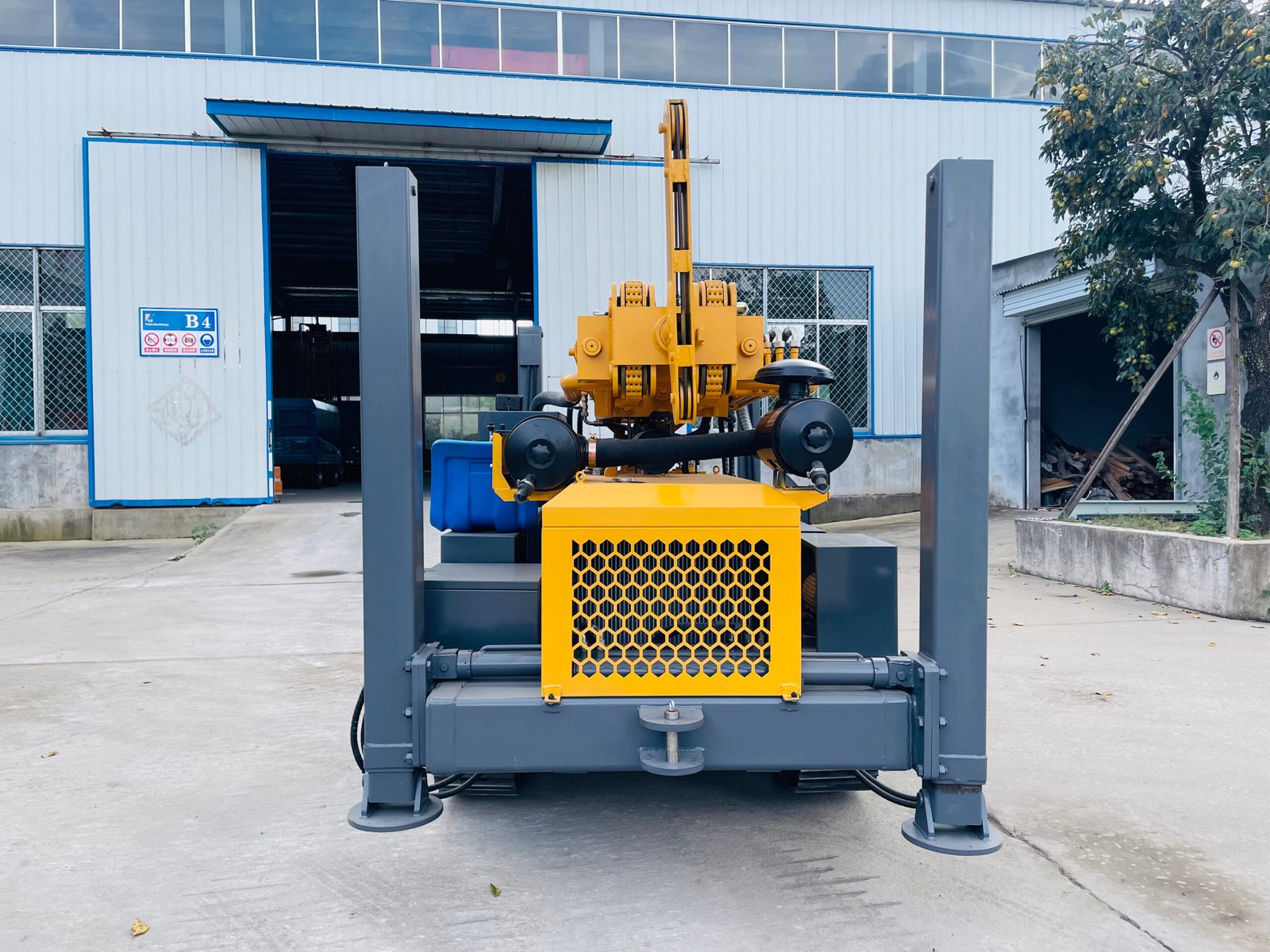

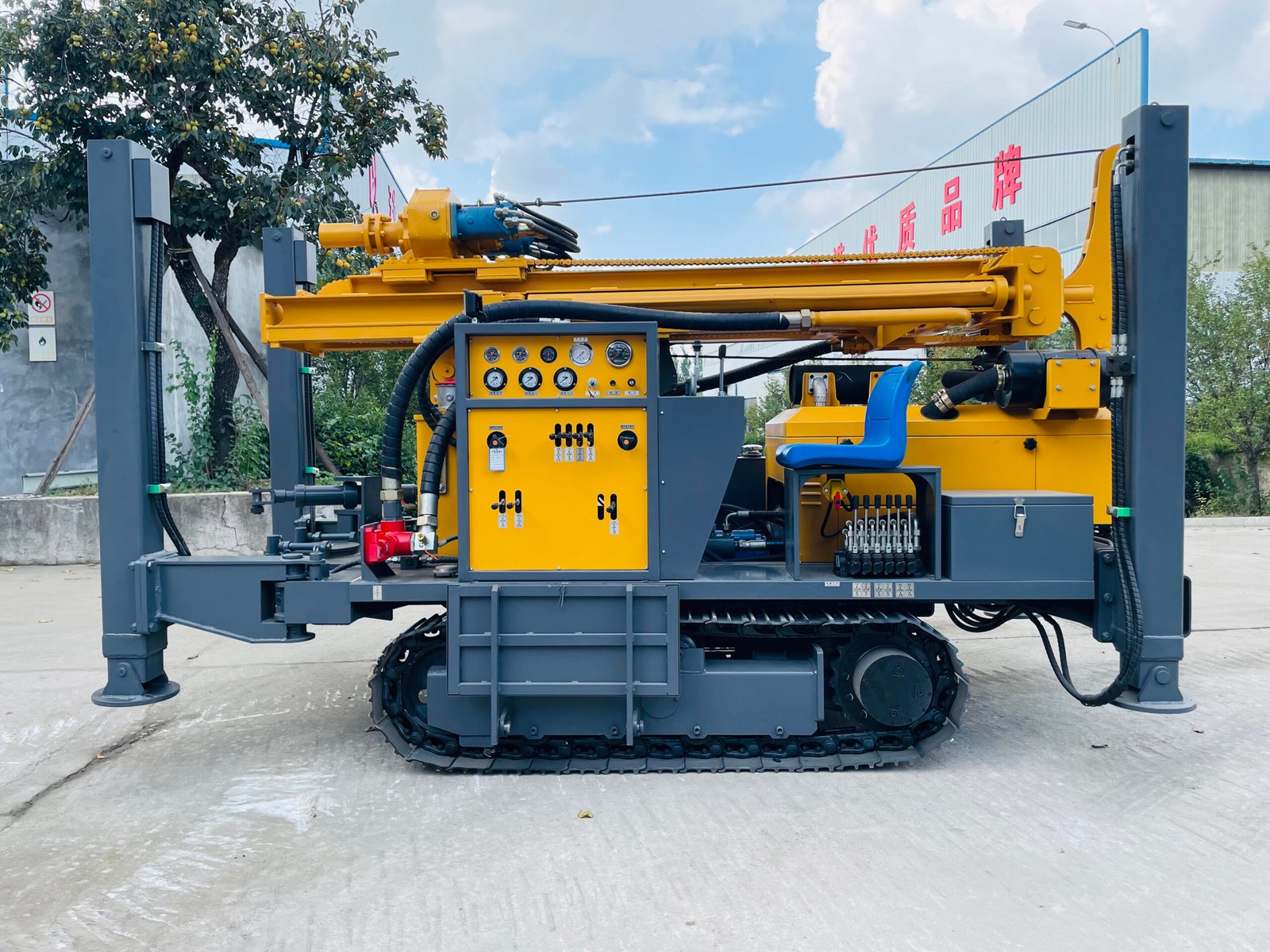

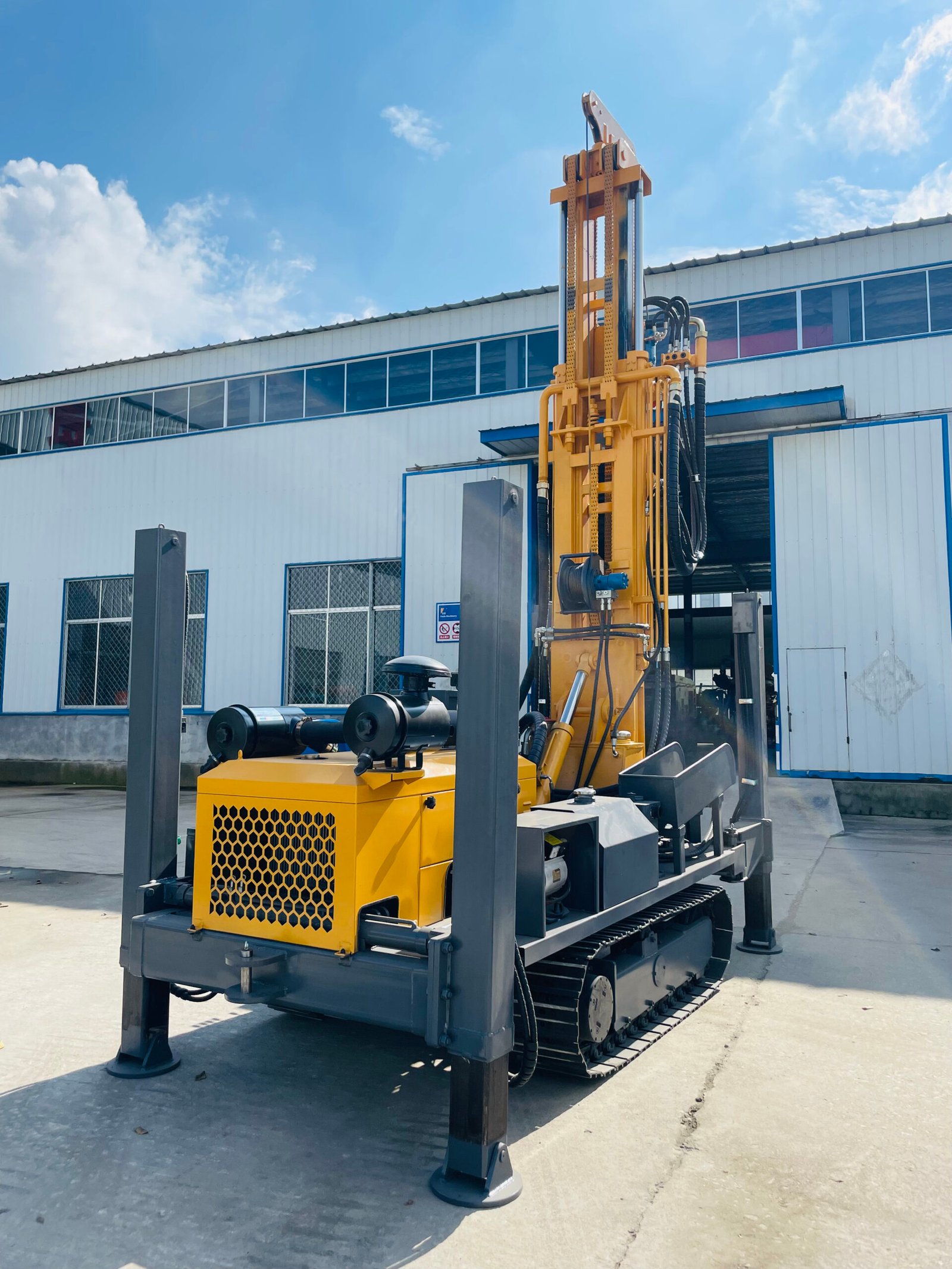

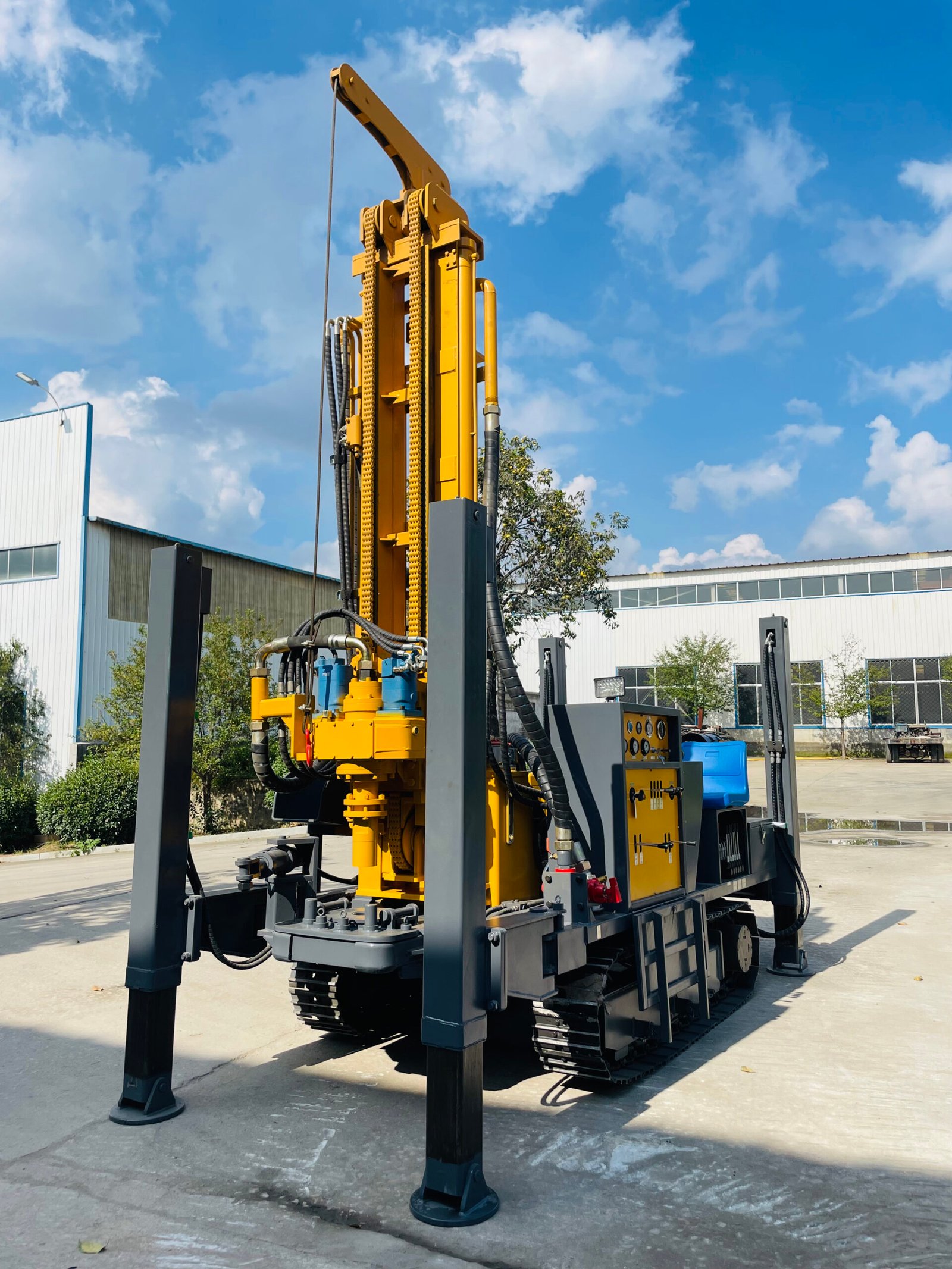

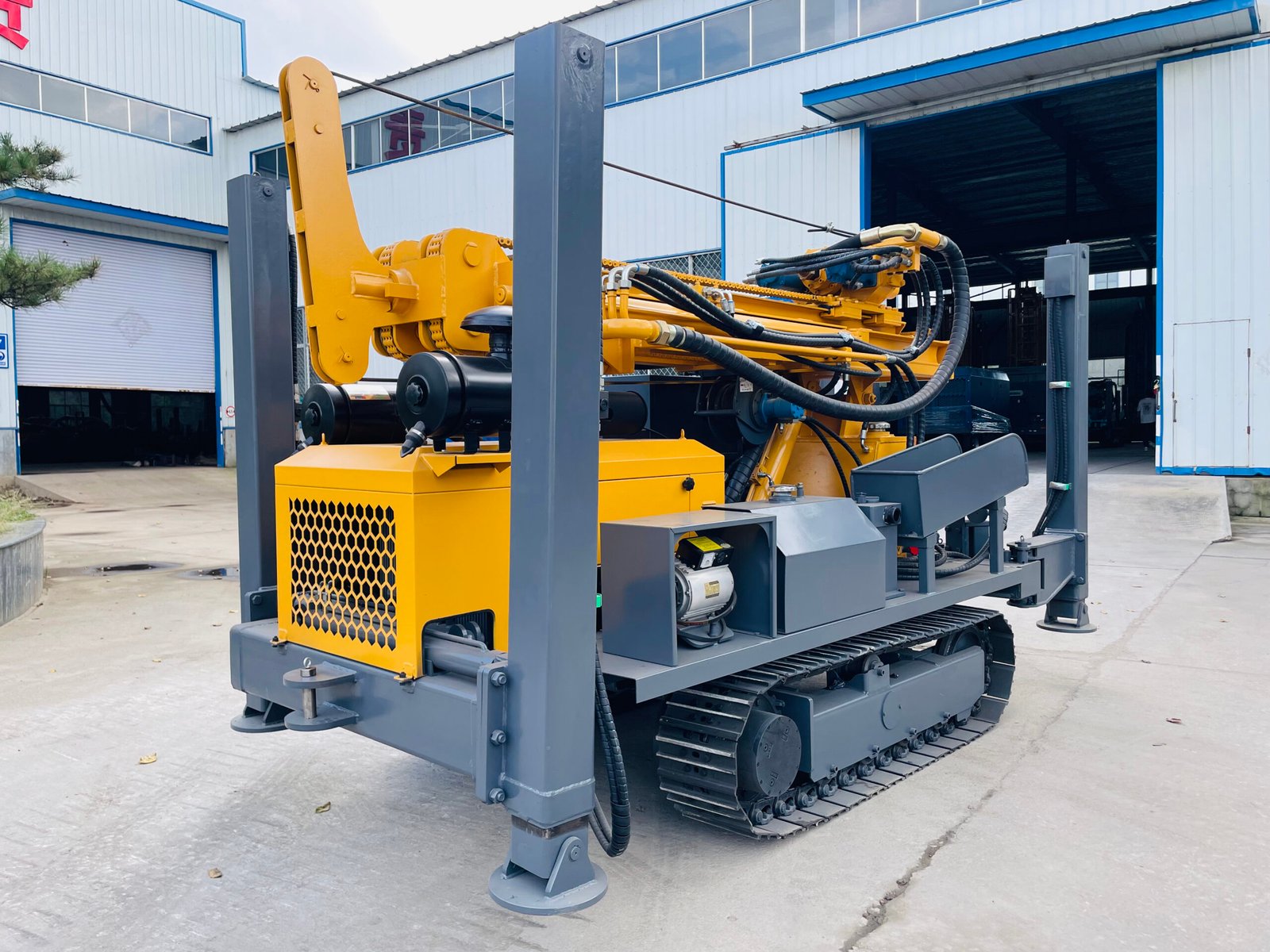

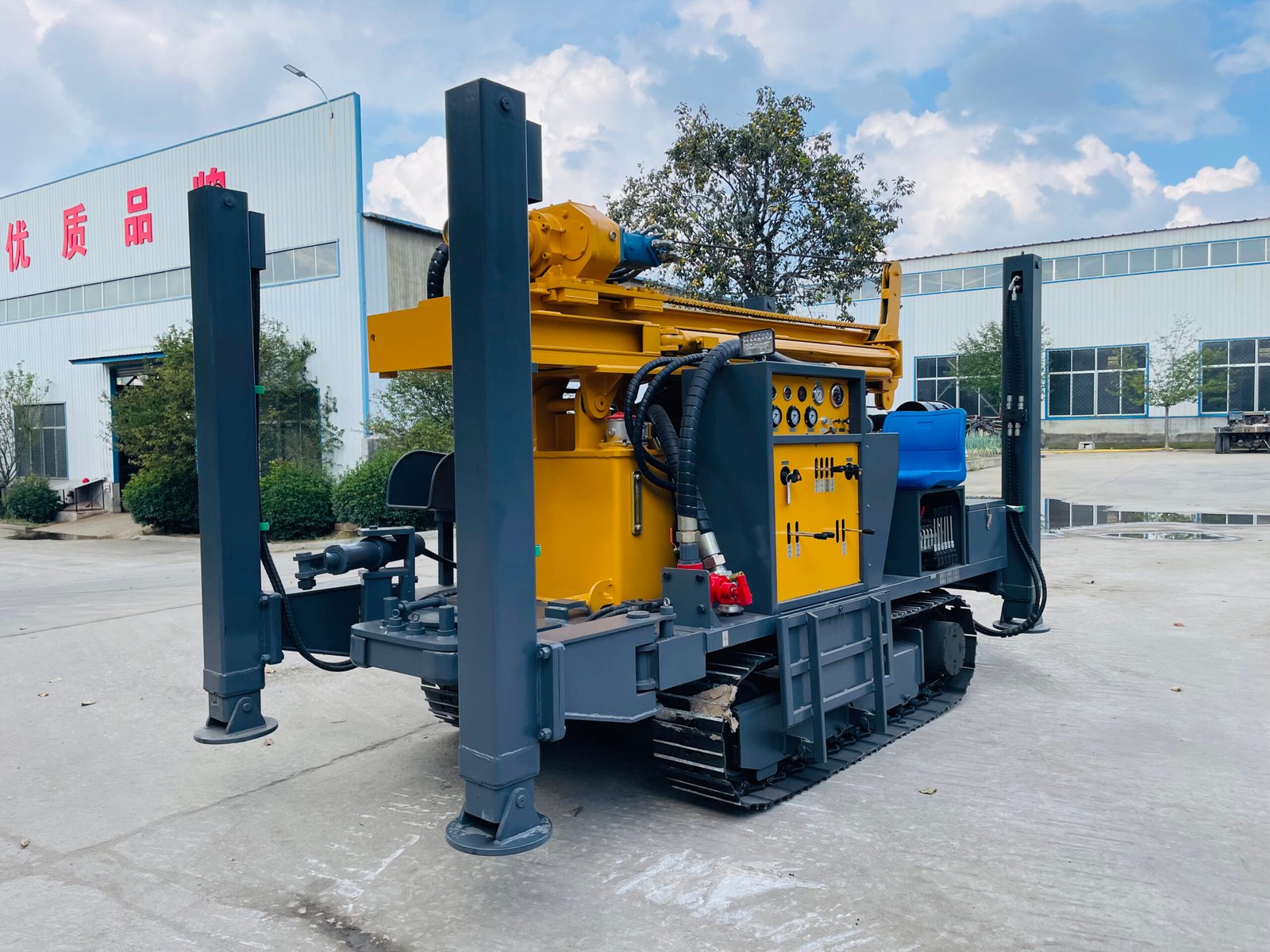

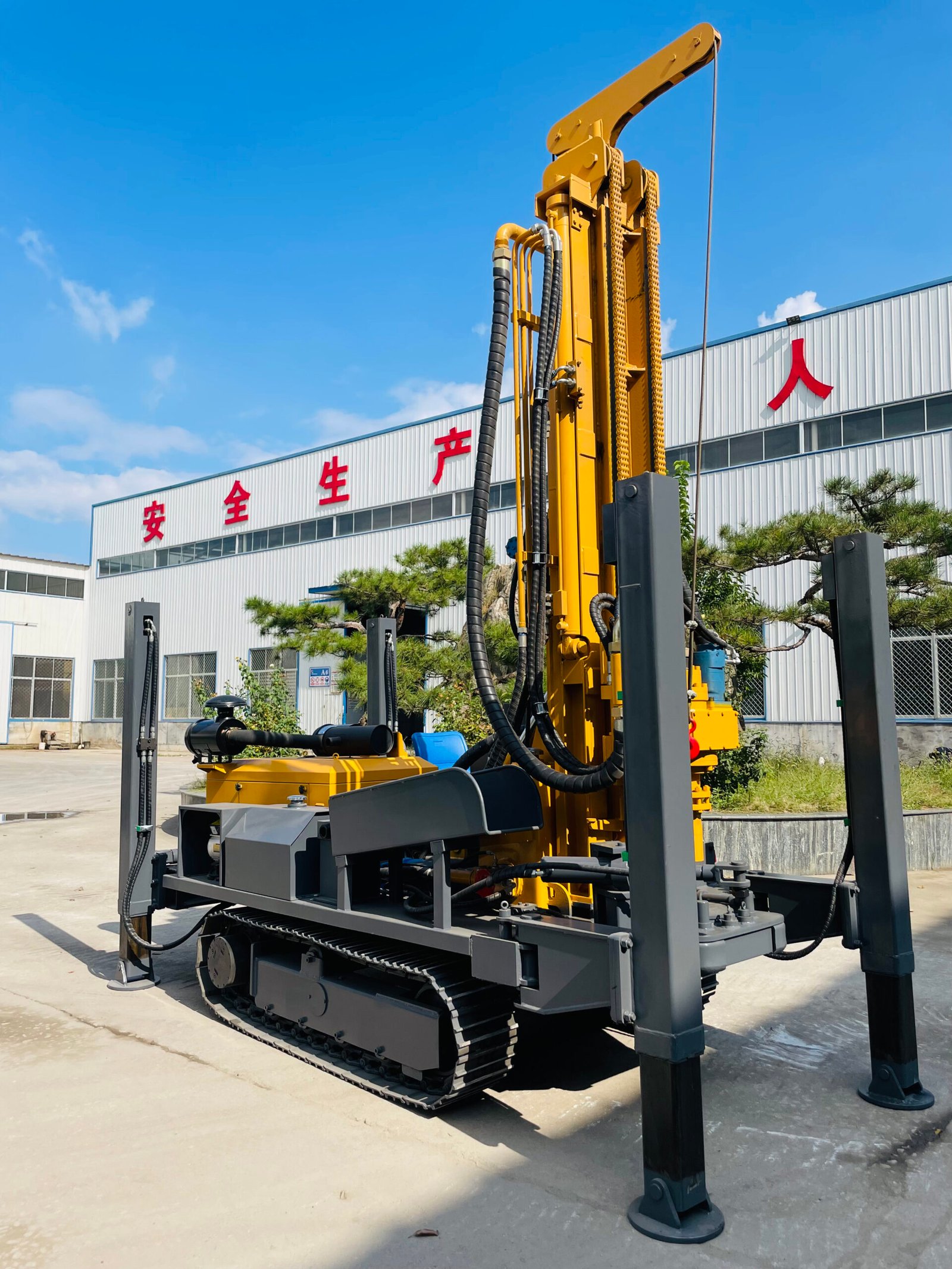

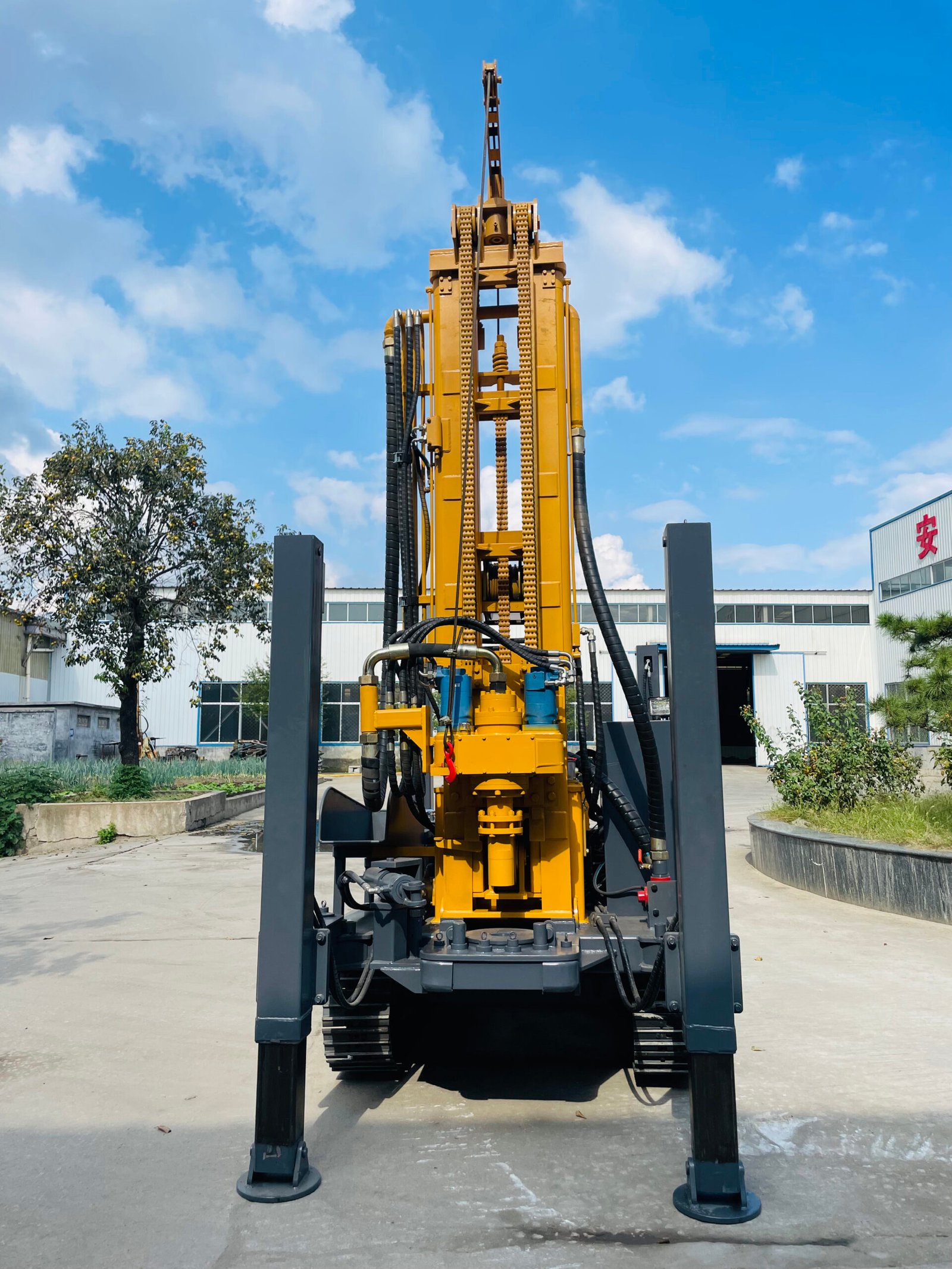

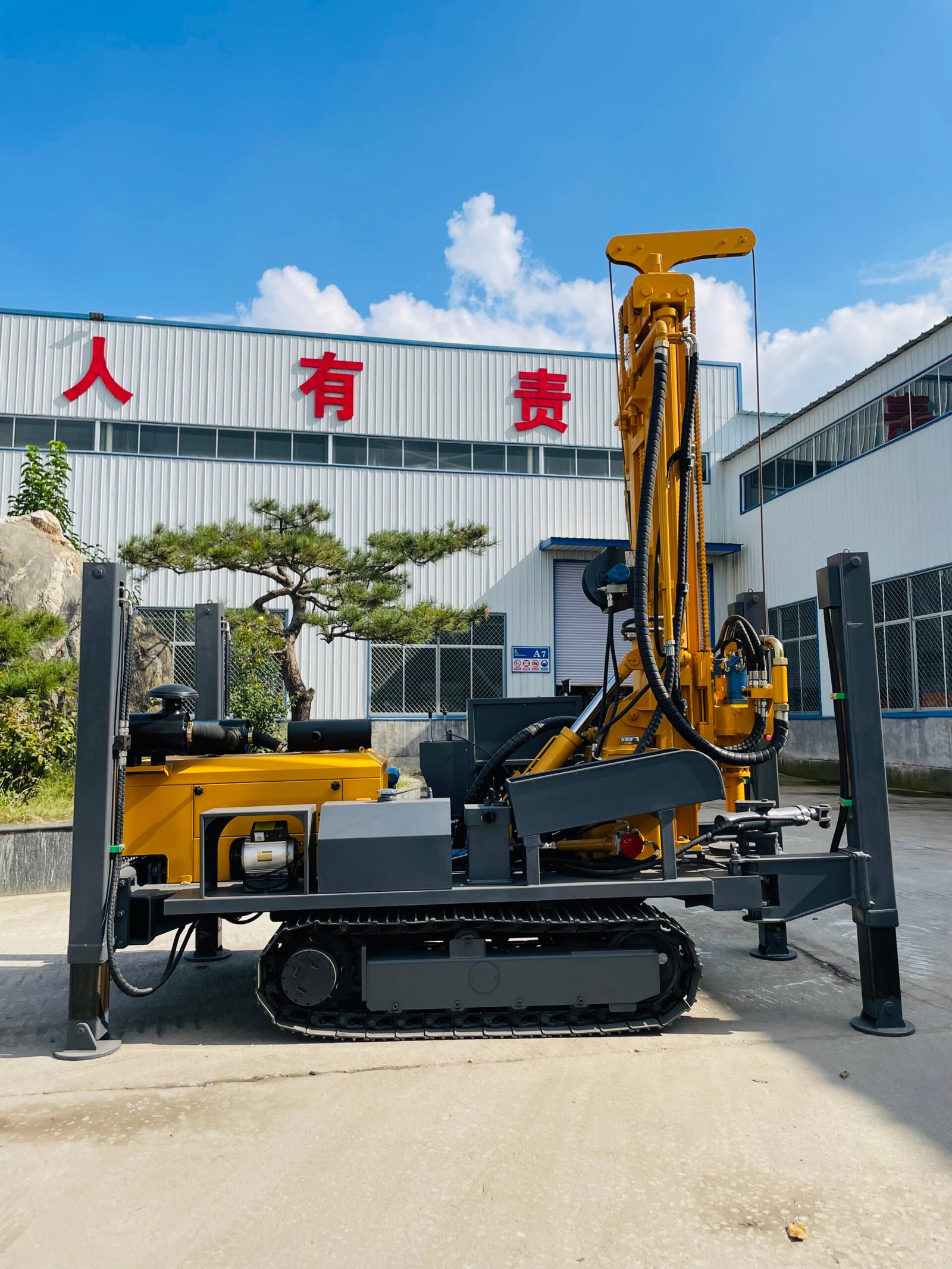

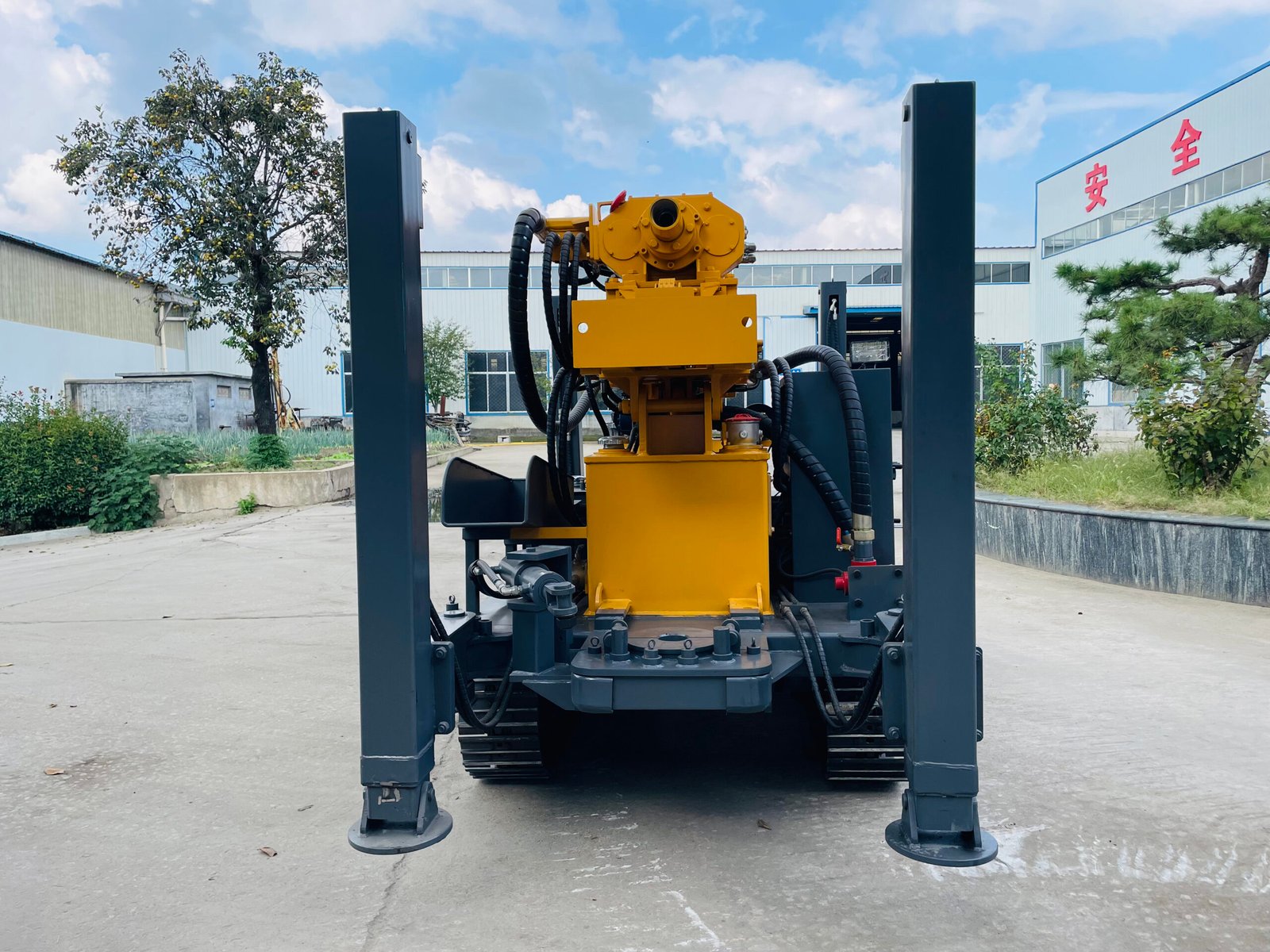

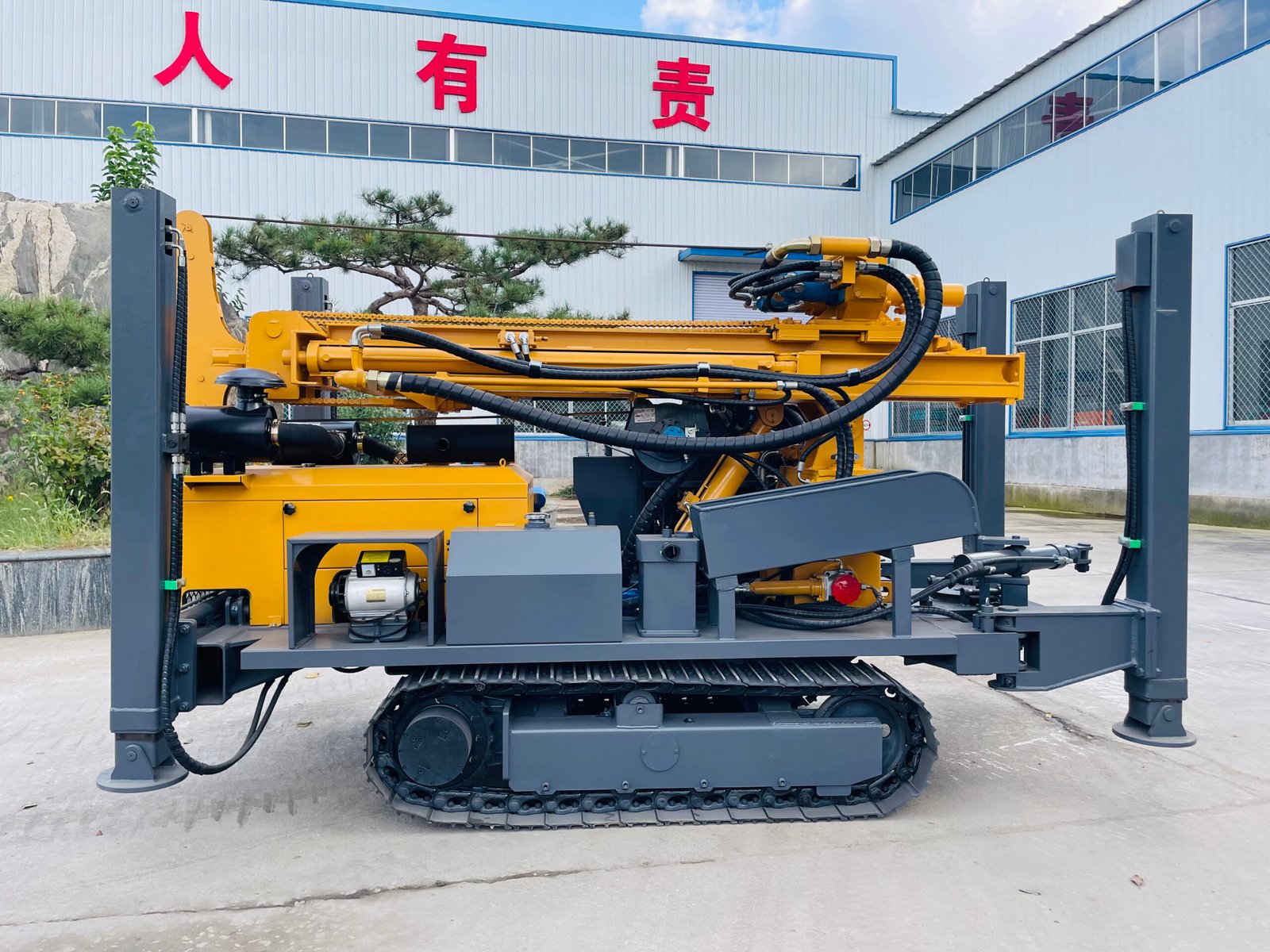

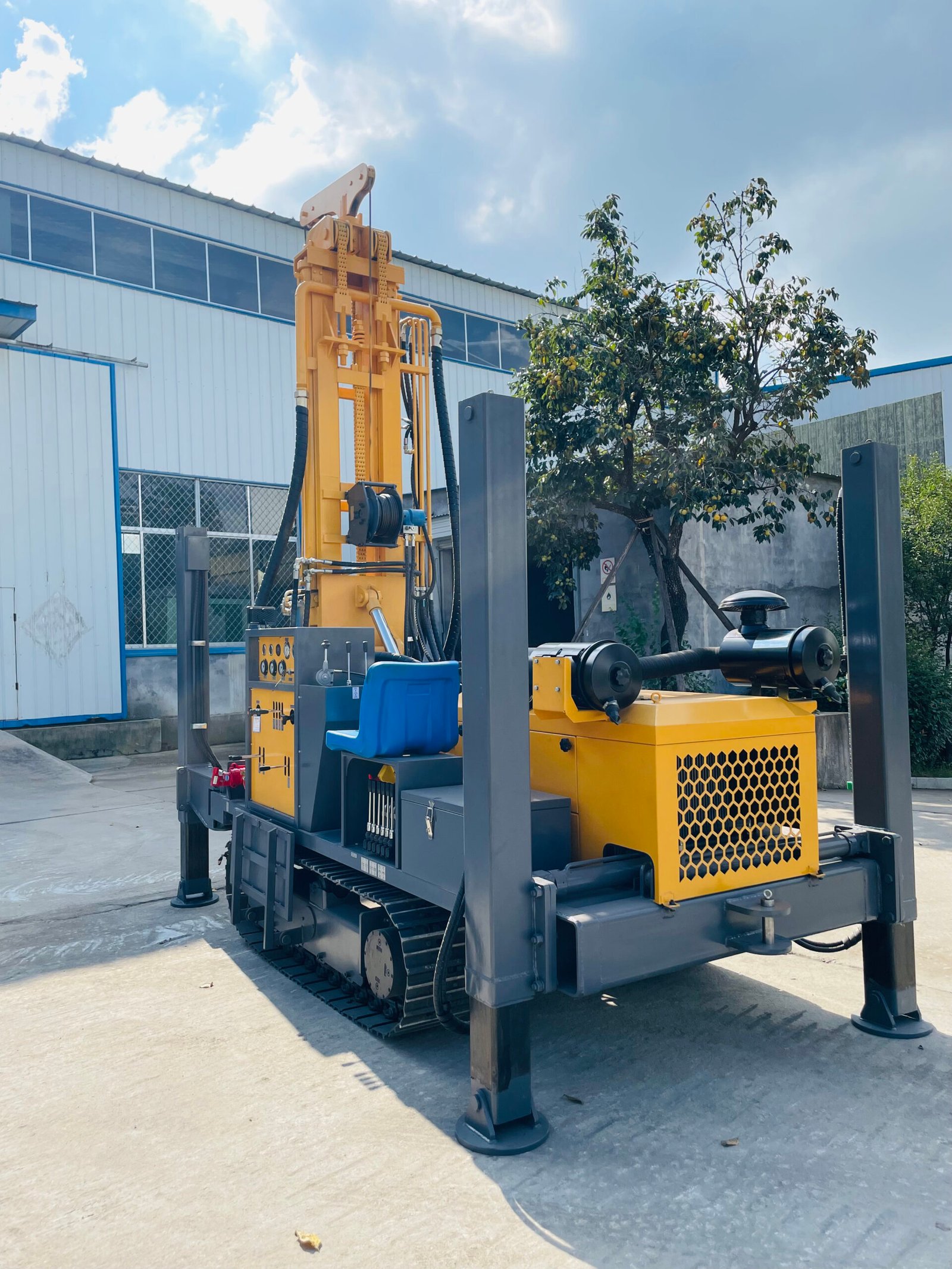

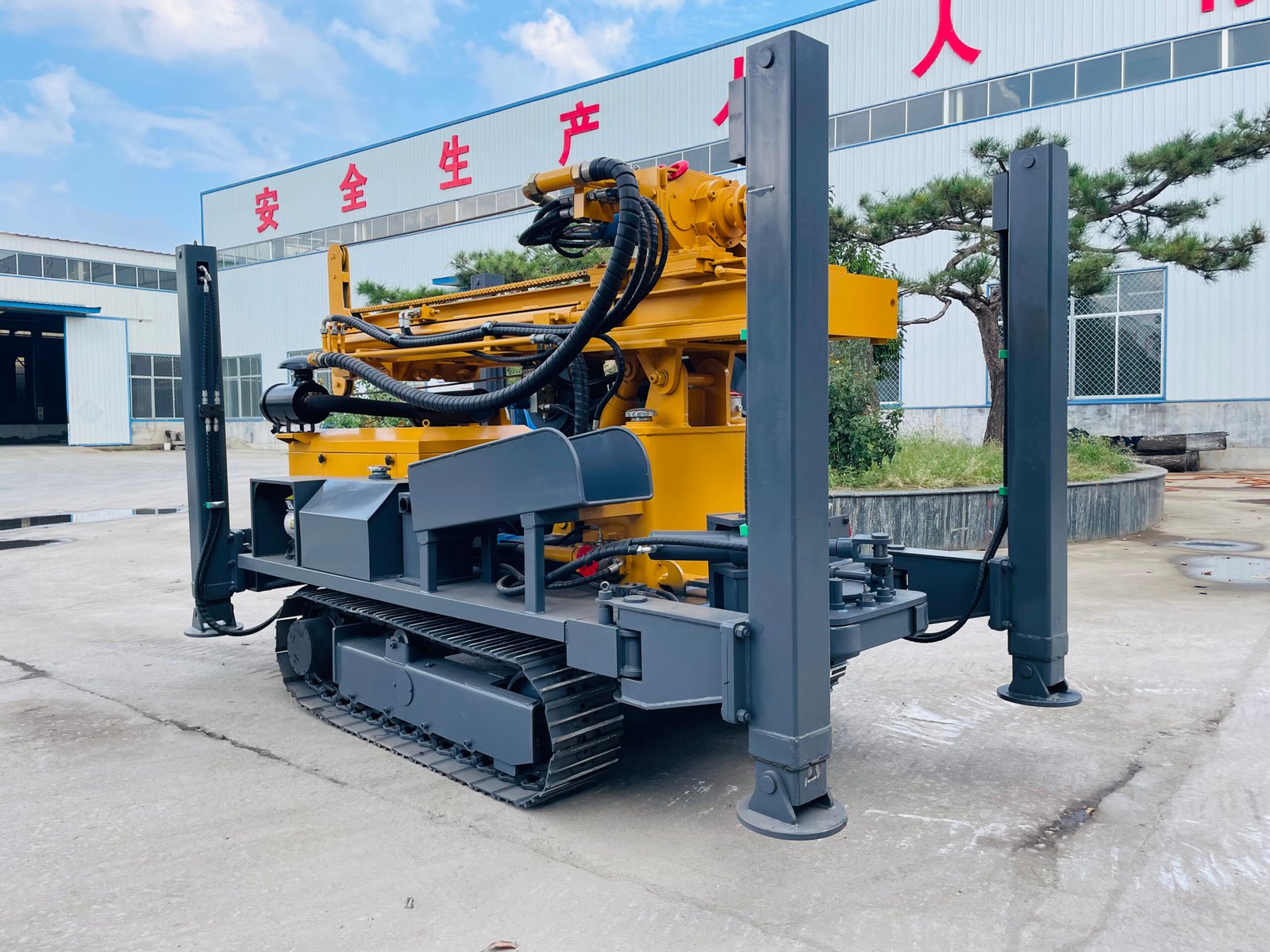

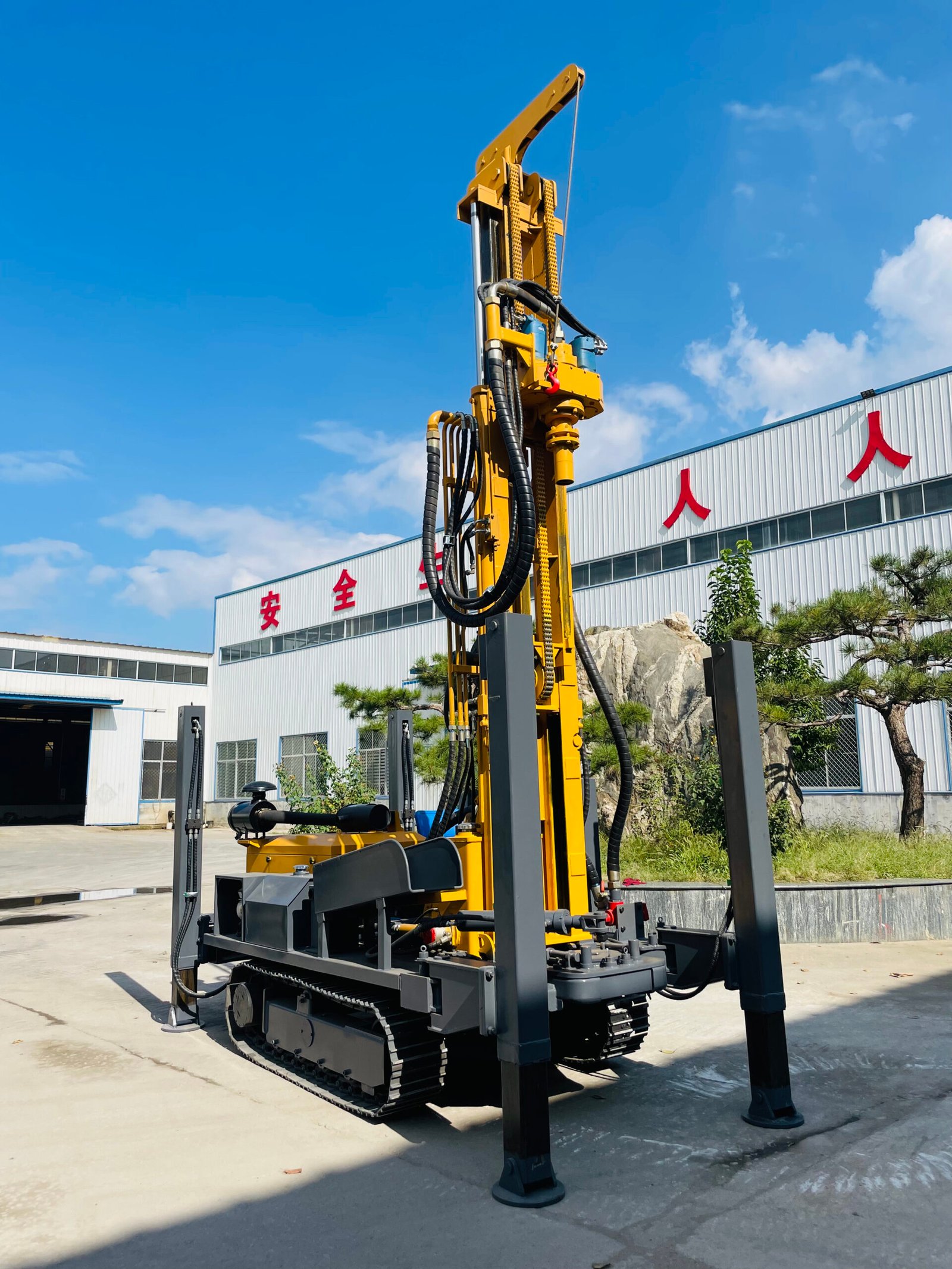

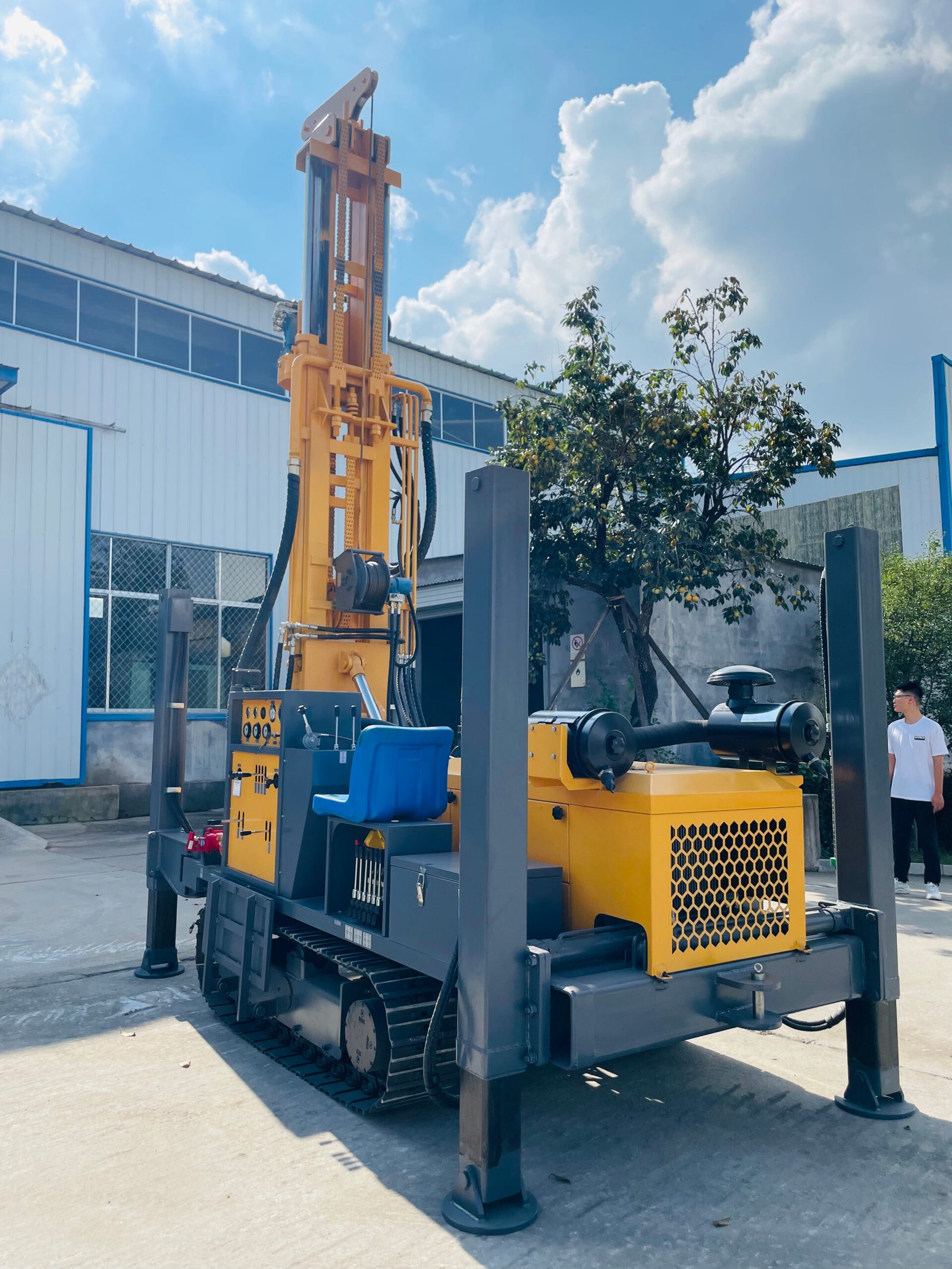

Full Hydraulic Crawler Mounted 100 M 200 M 250 M 260 M Borehole Drill Wells Water Well Drilling Rigs Machine
* Drilling Depth: Reaches up to 260 meters 🏗️, perfect for deep well drilling.
* Hole Diameter Range: Versatile 140-305mm, adaptable to various drilling requirements.
* Gradeability: 30%, ensuring stability on uneven terrains 🏞️.
* Powerful Engine: Equipped with a robust 76 kW engine, providing ample power for demanding tasks.
* High Efficiency: With a penetration efficiency of 10-35 m/h ⏱️, it significantly reduces drilling time.
* Advanced Hydraulic System: Ensures smooth operation and precise control over drilling processes.
* Rapid Rise Speed: 24 m/min, enhancing productivity by reducing downtime 📈.
* Fast Feeding Speed: 40 m/min, allowing for quicker drilling cycles 🔄.
* Compact Design: Dimensions of 3900*1750*2250mm, making it suitable for transport and maneuverability on site.
Ideal Applications:
* Water Well Drilling: Perfect for creating deep wells for water extraction 💧.
* Geothermal Drilling: Capable of handling the demands of geothermal projects 🌡️.
* Mining Operations: Efficient for various mining applications requiring precise drilling ⛏️.
* Water Well Drilling: Perfect for creating deep wells for water extraction 💧.
* Geothermal Drilling: Capable of handling the demands of geothermal projects 🌡️.
* Mining Operations: Efficient for various mining applications requiring precise drilling ⛏️.
Parameter
| Parameter | Value |
| The weight (T) | 5.7 |
| The hole diameter (mm) | 140-325 |
| Drill depth (m) | 260 |
| One-time advance length (m) | 3.3 |
| Walking speed (km/h) | 2.5 |
| Gradeability (Max.) | 30 |
| Equipped capacitor (kw) | 76 |
| Working air pressure (MPA) | 1.7-2.5 |
| Air consumption (m³/min) | 17-31 |
| Swing speed (rpm) | 45-70 |
| High leg stroke (m) | 1.4 |
| Drill pipe diameter (mm) | Φ76 Φ89 |
| Drill pipe length (m) | 1.5m 2.0m 3.0m |
| Rig lifting force (T) | 15 |
| Rapid rise speed (m/min) | 24 |
| Fast feeding speed (m/min) | 40 |
| Width of loading (m) | 2.73 |
| Swing torque (N.m) | 4000-5300 |
| Dimensions (mm) | 3950*1750*2250mm |
| The penetration efficiency (m/h) | 10-35 |
| The engine brand | Quanchai |
