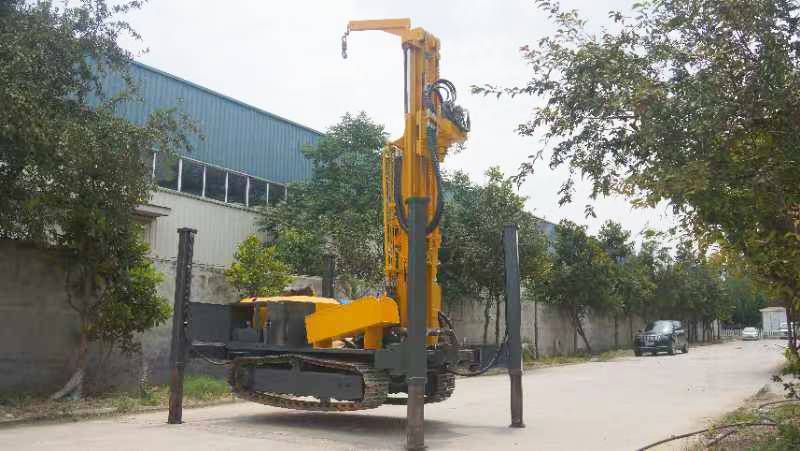

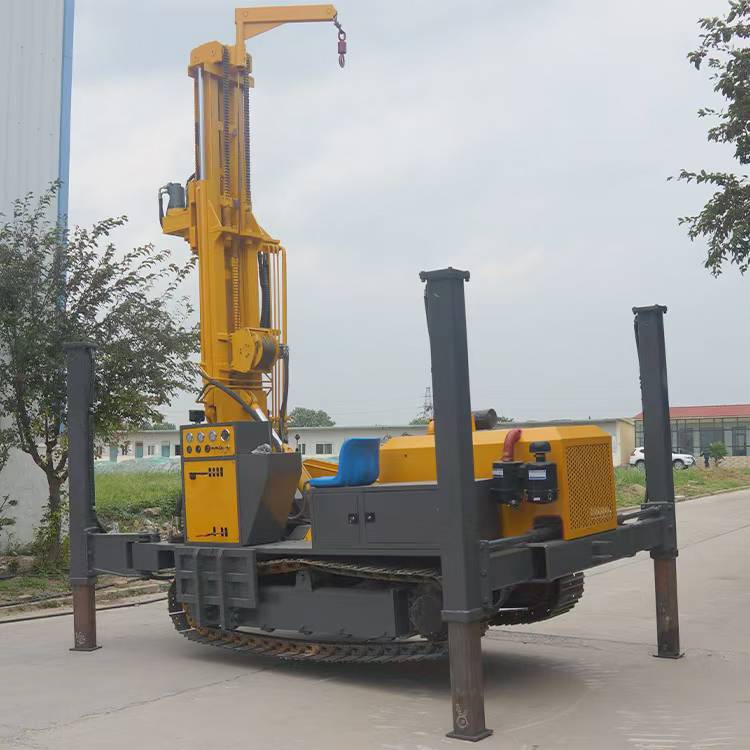

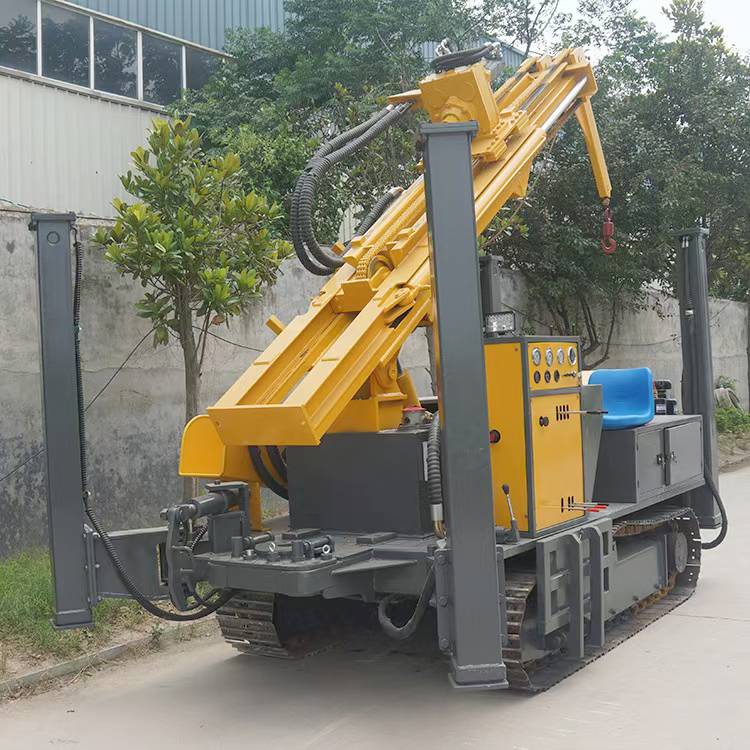

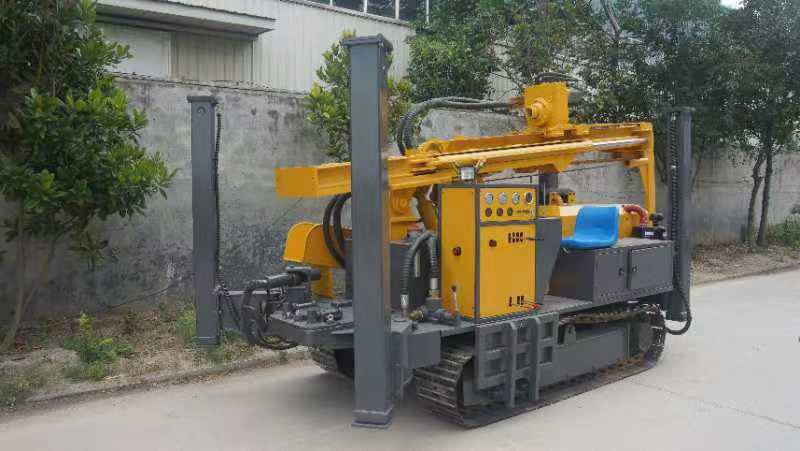

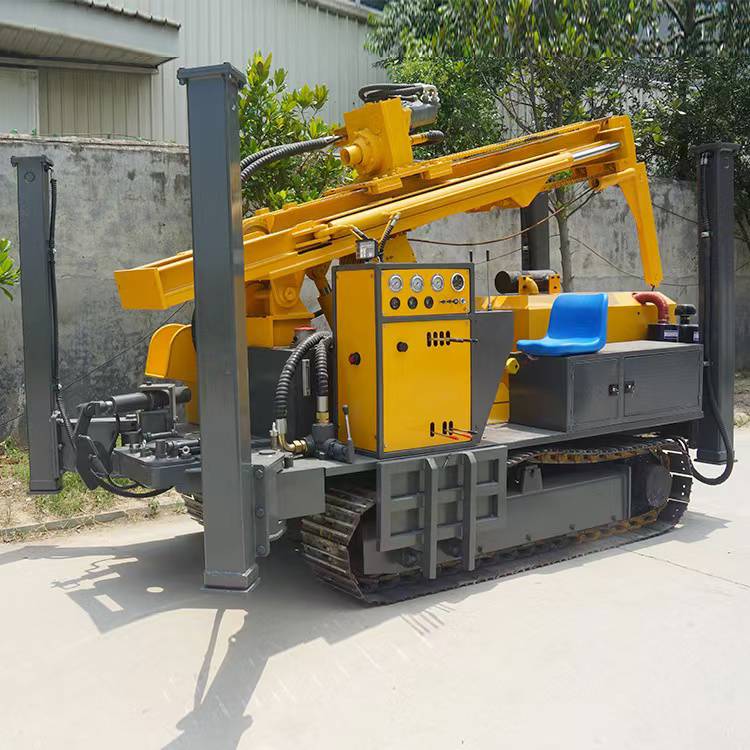

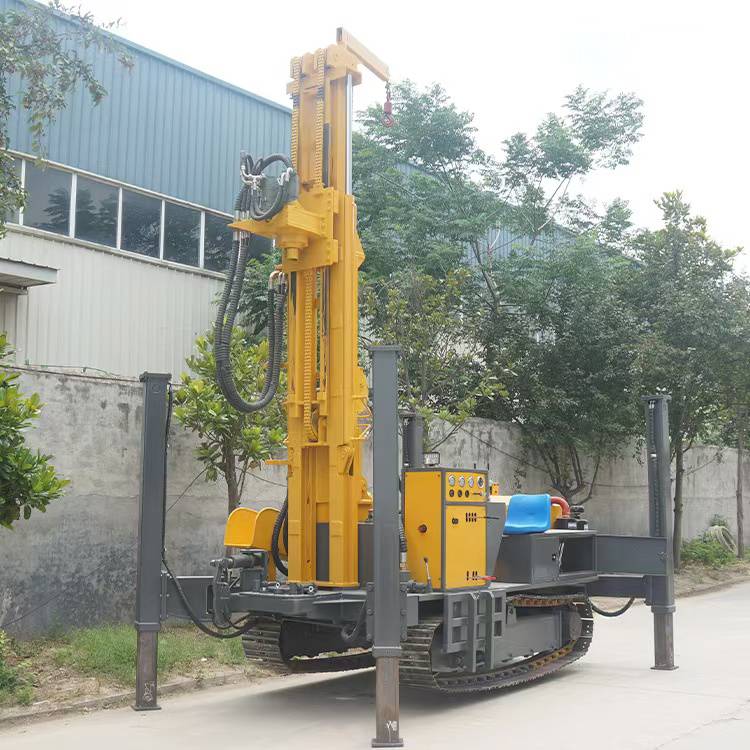

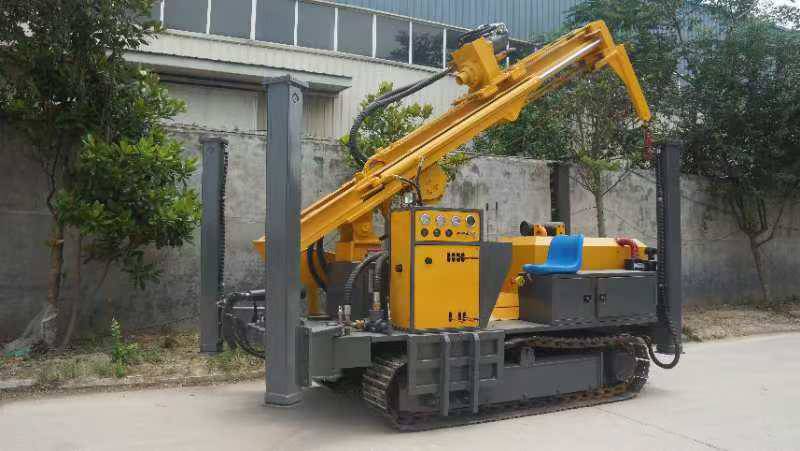

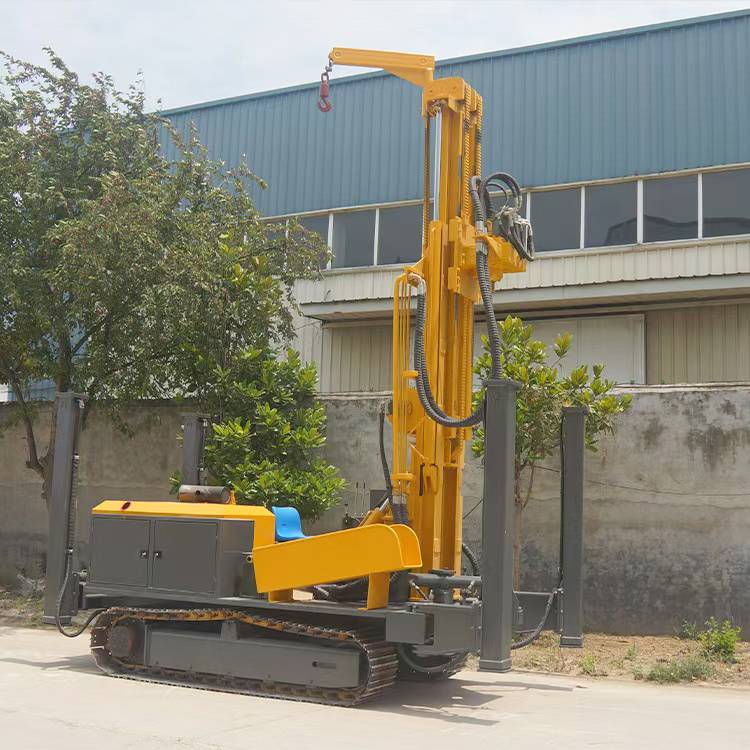

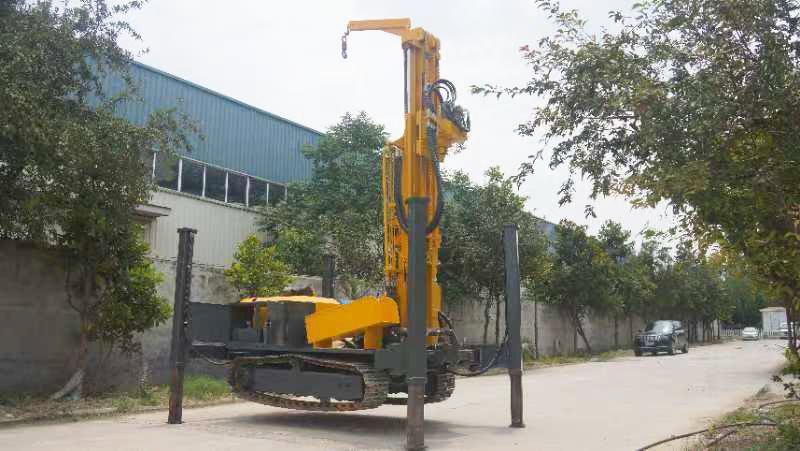

FY580 Pneumatic DTH Crawler Drilling Rig 100m 300m 500m 600m Drill Rig for Water Well Drilling
-
Versatile Depth Options: The FY580 rig offers multiple drilling depth configurations (100m to 600m), making it suitable for both shallow and deep water well drilling applications.
-
Efficient DTH Technology: Equipped with advanced pneumatic Down-The-Hole (DTH) drilling, it ensures high rock-breaking efficiency and fast penetration, especially in hard rock formations.
-
Crawler Mobility: Features a heavy-duty crawler chassis for superior stability and mobility, enabling easy relocation across rough terrains and reducing site preparation costs.
-
Eco-Friendly Operation: Optimized air compressor power matching reduces energy consumption, while low noise and dust emissions comply with environmental standards.
-
Modular Maintenance Design: Key components are modularized for quick servicing and replacement, minimizing downtime and enhancing long-term operational efficiency.
Parameter
| Parameter | Value/Description |
|---|---|
| The weight (T) | 12 |
| The hole diameter (mm) | 140-350 |
| Drilling depth (m) | 580 |
| One-time advance length (m) | 6.6 |
| Walking speed (km/h) | 2.5 |
| Climbing angles (Max.) | 30 |
| Equipped capacitor | 132 |
| Using air pressure (MPA) | 1.7-3.5 |
| Air consumption (m³/min) | 17-42 |
| Swing speed (rpm) | 45-140 |
| The penetration efficiency (m/h) | 15-35 |
| Drill pipe diameter (mm) | Φ102 Φ108 Φ114 |
| Drill pipe length (m) | 1.5m 2.0m 3.0m 6.0m |
| Rig lifting force (T) | 28 |
| Rapid rise speed (m/min) | 20 |
| Fast feeding speed (m/min) | 40 |
| Width of loading (m) | 2.85 |
| Hoisting force of winch (T) | 2 |
| Swing torque (N.m) | 8500-11000 |
| Dimension (mm) | 6200×2200×2650 |
| Equipped with hammer | Medium and high wind pressure series |
| High leg stroke | 1.7 |
| The engine brand | Cummins engine |
