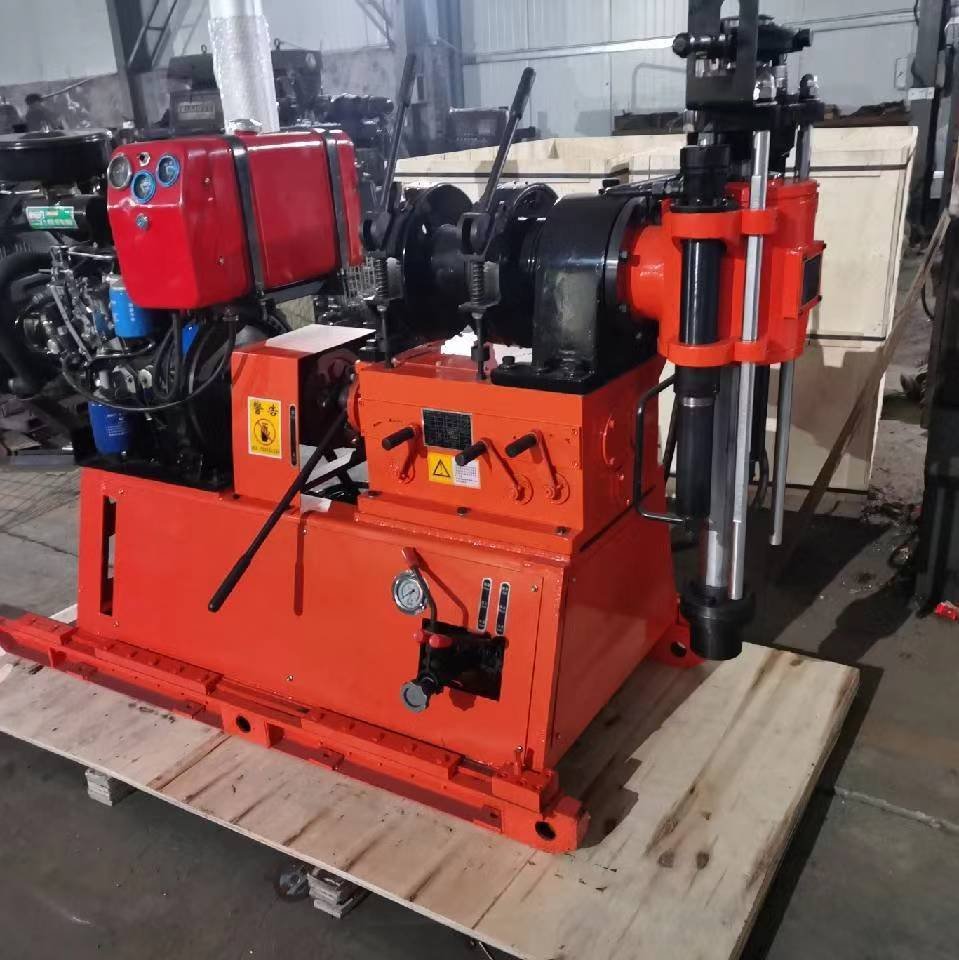

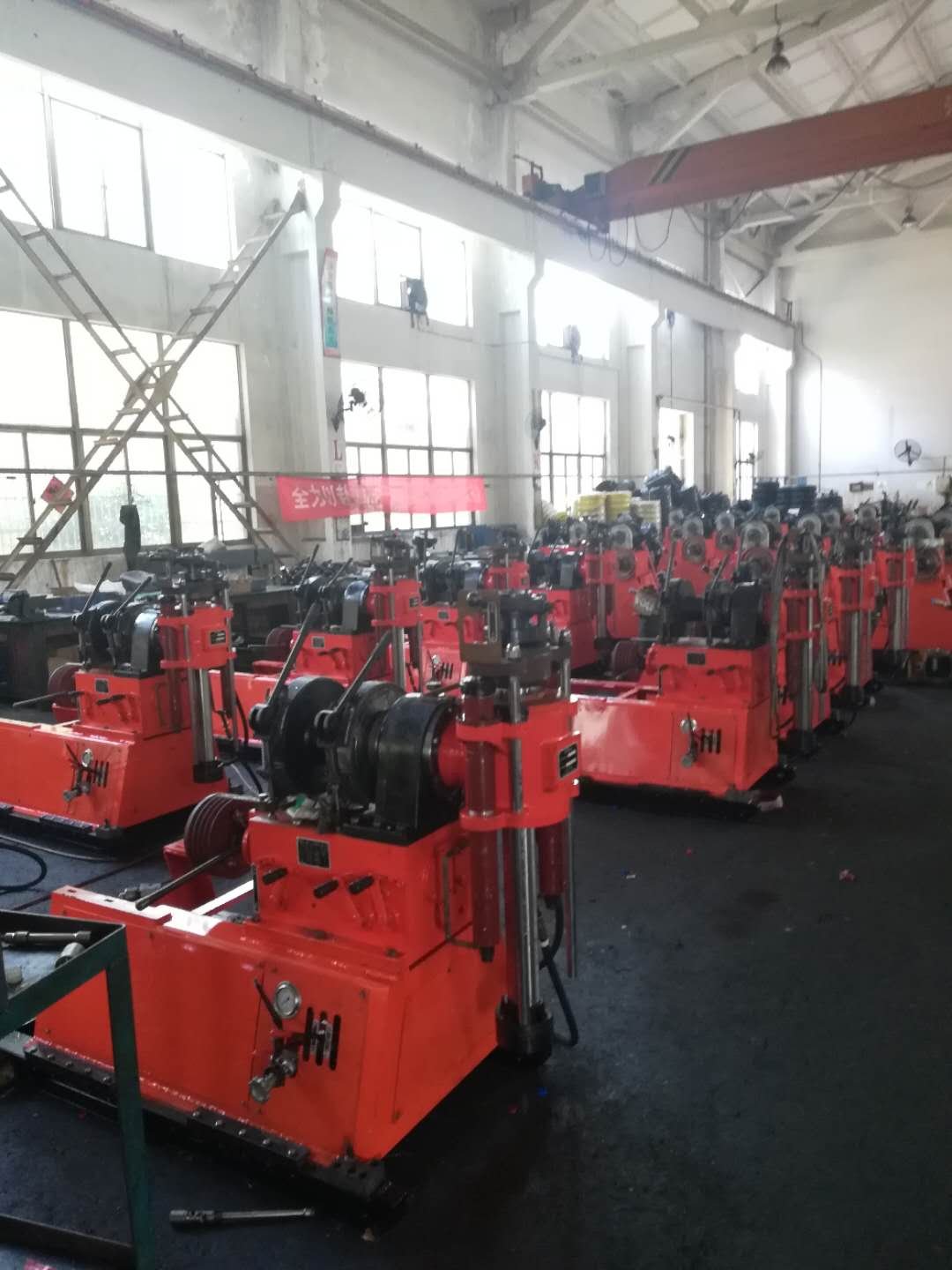

GY-200 2A Engineering Drilling Rig
The GY-200-2A model engineering drilling rig is a lightweight and versatile drilling rig for engineering exploration and construction. It is suitable for geological exploration in industrial and civil construction, railways, bridges, hydropower, and other sectors, as well as for the construction of small-caliber foundation pile holes. It has the following features:
- A wide range of rotation speeds with reasonable gears.
- Low rotation speed and high torque, suitable for sampling and pile hole construction.
- Equipped with front and rear movable cylinders, allowing the entire drilling rig to move freely by 300 millimeters, which brings a lot of convenience for raising and lowering the drilling tools.
- Hydraulic feed, easy operation, high drilling efficiency, and low labor intensity.
-
Compact structure, small size, and light weight.
Parameter
| Basic Parameter | |||||
| Drilling depth | 60m | 225m | 295m | ||
| Drilling diameter | 300mm | 76mm | 46mm | ||
| Drill pipe diameter | 50 | 42 | |||
| Spindle turnable angle | 0°~ 360° | ||||
| Weight without engine | 750 kg | ||||
| Dimension (length * width * height) | 1820 * 980 * 1400 mm | ||||
| Rotary Table | |||||
| Rotate speed | 900, 475, 388, 205, 157, 68 r/min | ||||
| Maximum torque | 2000 N*m | ||||
| Feeding travel | 400 mm | ||||
| Maximum cylinder feeding force | 29 KN | ||||
| Maximum cylinder lifting force | 39 KN | ||||
| Lifter | |||||
| Lifting capacity | 30 KN | ||||
| Bobbin line speed, 2nd layer | 0.27, 0.64, 0.83, 1.58, 1.64 m/s | ||||
| Bobbin diameter | 135 mm | ||||
| Rope diameter | 12.5 mm | ||||
| Rope capacity | 30 m | ||||
| Oil pump | |||||
| Type | CBF-F420-ALPL Gear Oil Pump | ||||
| Displacement | 20 Ml/R | ||||
| Rated speed | 2500 r/min | ||||
| Rated pressure | 20 MPa | ||||
| Maximum pressure | 25 MPa | ||||
| Power | |||||
| Rated power | 14 KW (Y160-4 electric), 14.7 KW (ZS-1110 diesel) | ||||
| Rated speed | 1460 r/min (Y160-4 electric), 2200 r/min (ZS-1110 diesel) | ||||
| Weight | 144 kg (Y160-4 electric), 180 kg (ZS-1110 diesel) | ||||
| Frame | |||||
| Type | Sliding type with base frame | ||||
| Movable travel of drill | 400 mm | ||||
| Distance between drill and hole-opening | 270 mm | ||||
