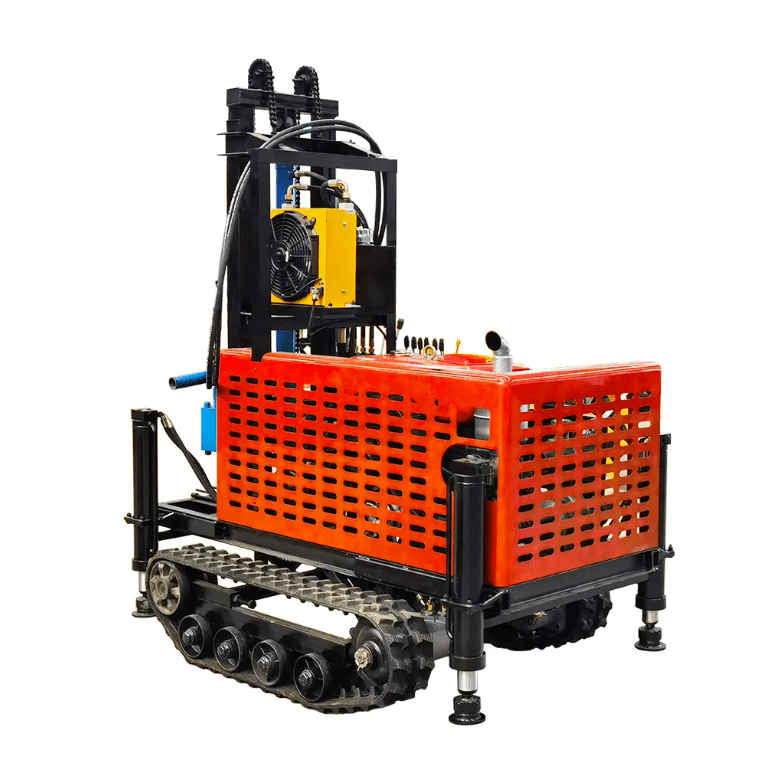

Portable Well Drilling Equipment 200m Small Water Well Drilling Rigs for Sale
-
Portable & Efficient: Compact and lightweight design for easy transport and quick setup, ideal for remote or hard-to-reach locations.
-
200m Depth Capacity: Powerful performance to drill up to 200 meters, suitable for small-scale water wells, irrigation, and household use.
-
Multi-Terrain Adaptability: Works on various ground conditions, including clay, sand, and rocky layers, ensuring versatility.
-
User-Friendly Operation: Simple controls and low maintenance requirements, perfect for small businesses or individual operators.
-
Cost-Effective Solution: Affordable pricing with reliable performance, offering great value for money in water well drilling projects.
Parameter
| Parameter Category | Product Model | HR-150 Crawler Drill Rig |
|---|---|---|
| General Parameters | Power Source | Single-cylinder diesel engine / 25 HP |
| Chassis | Hydraulic rubber crawler track chassis | |
| Weight | 950 kg | |
| Dimensions | 2000 × 1100 × 2100 mm | |
| Power Head | Hydraulic motor gearbox type | |
| Hydraulic Motor Model | BM5-200 | |
| Feed System | Hydraulic cylinder feed | |
| Hydraulic Outriggers | 4 (standard) | |
| Technical Parameters | Drill Pipe Specification | 50 × 1500 mm |
| Drilling Diameter | 80–300 mm | |
| Drilling Depth | 1–200 m (customizable) | |
| Slide Frame Stroke | 2400 mm | |
| Lifting Height | 2600 mm | |
| Single Feed Length | 1500 mm |
