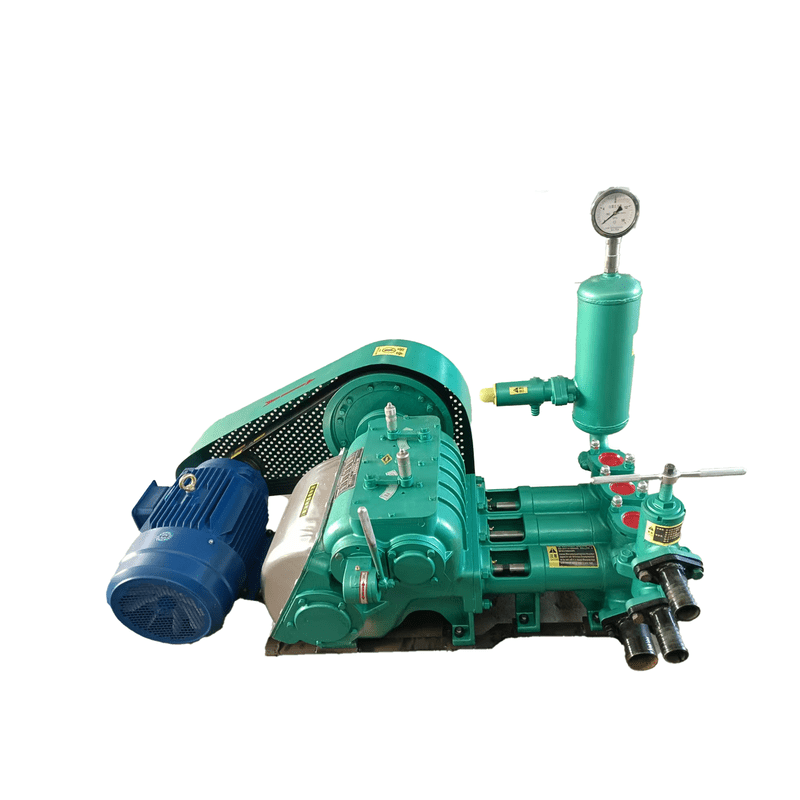

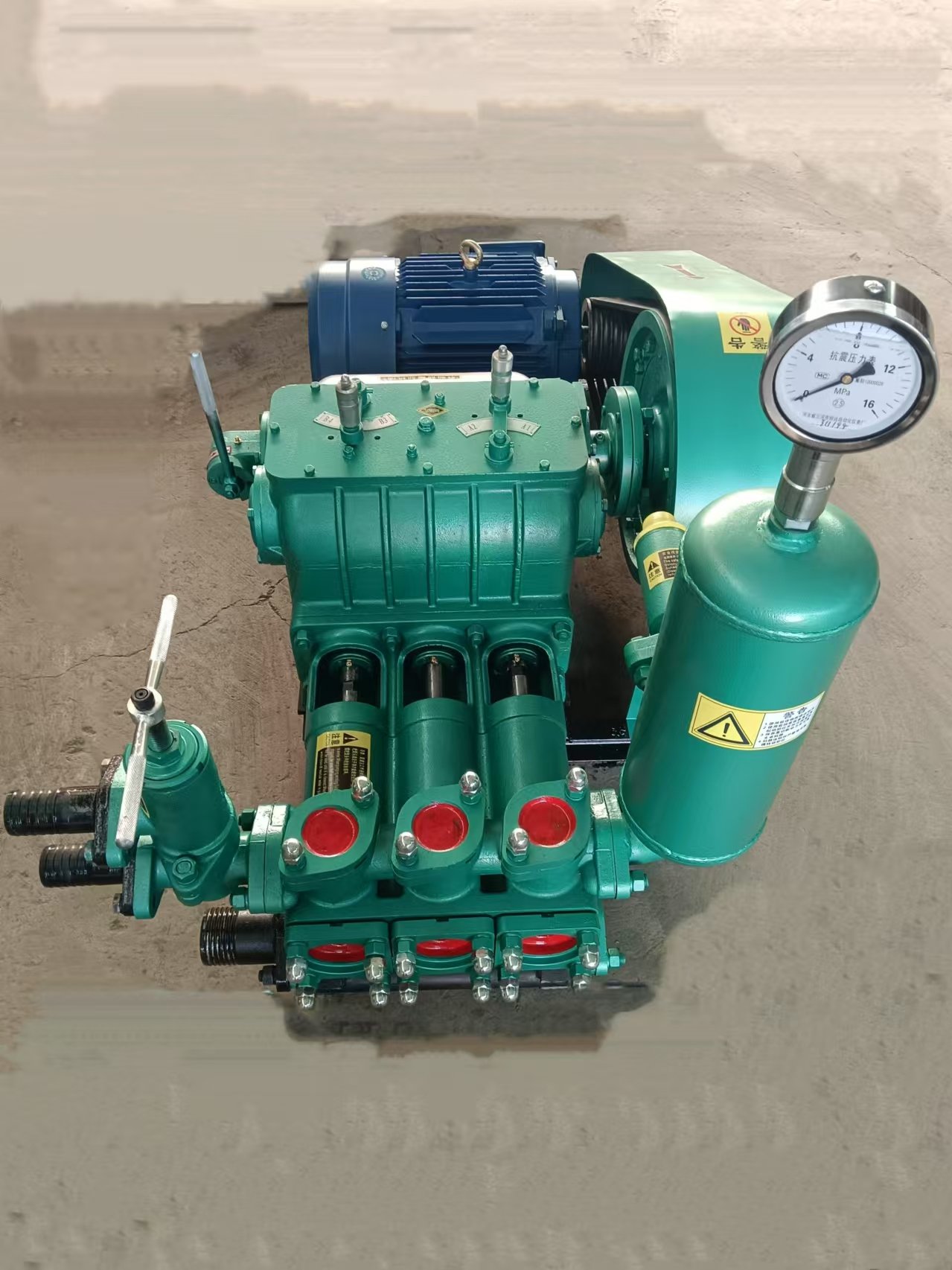

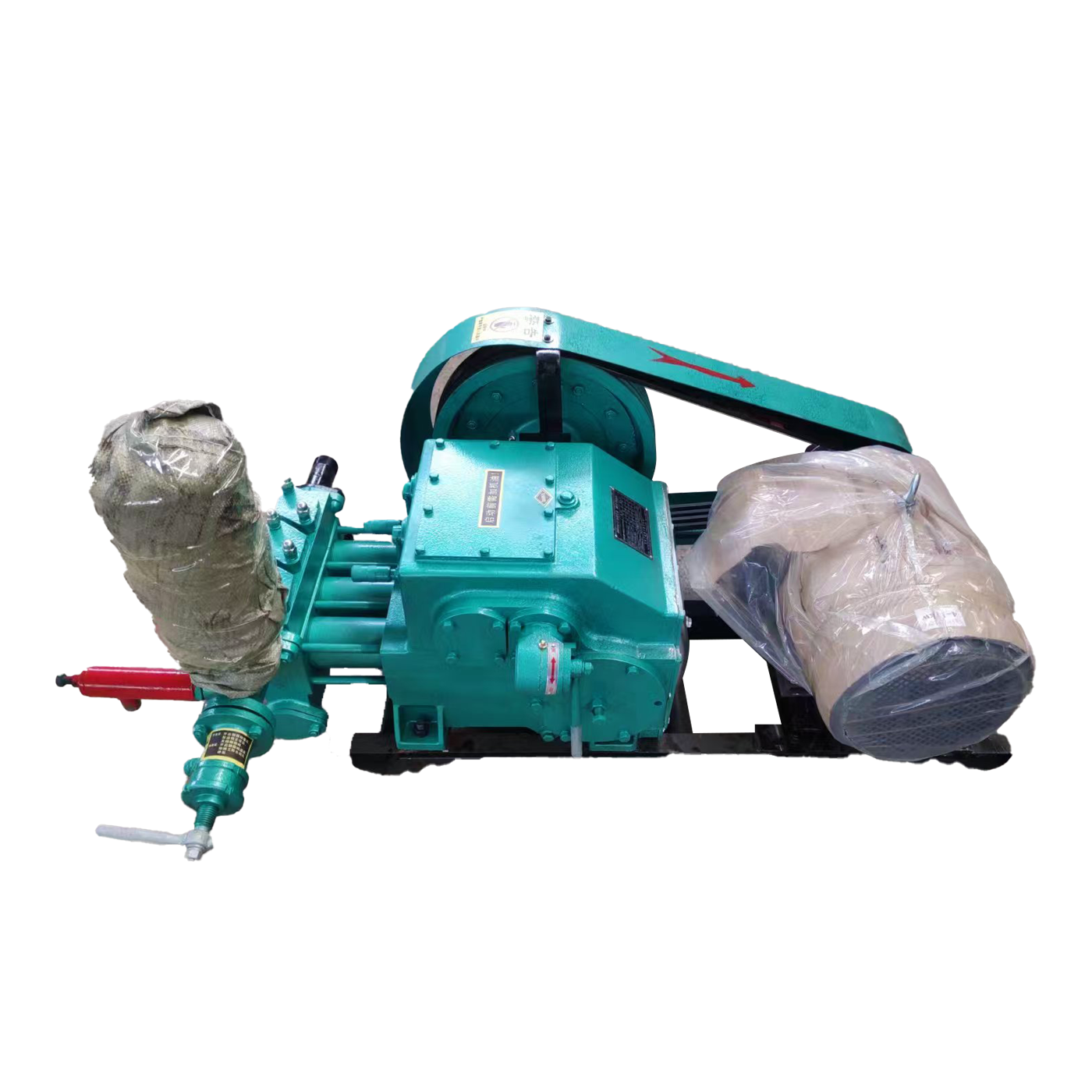

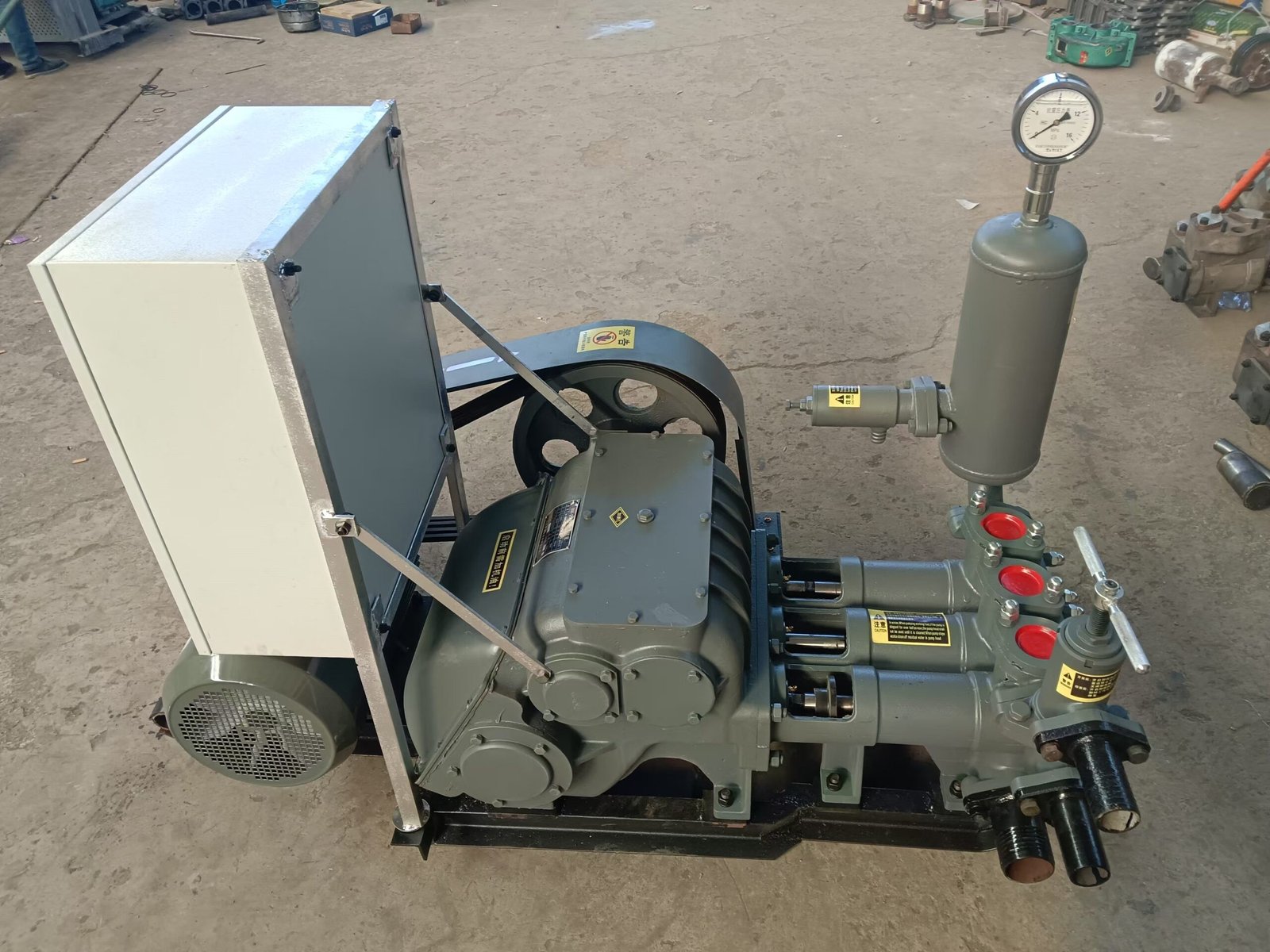

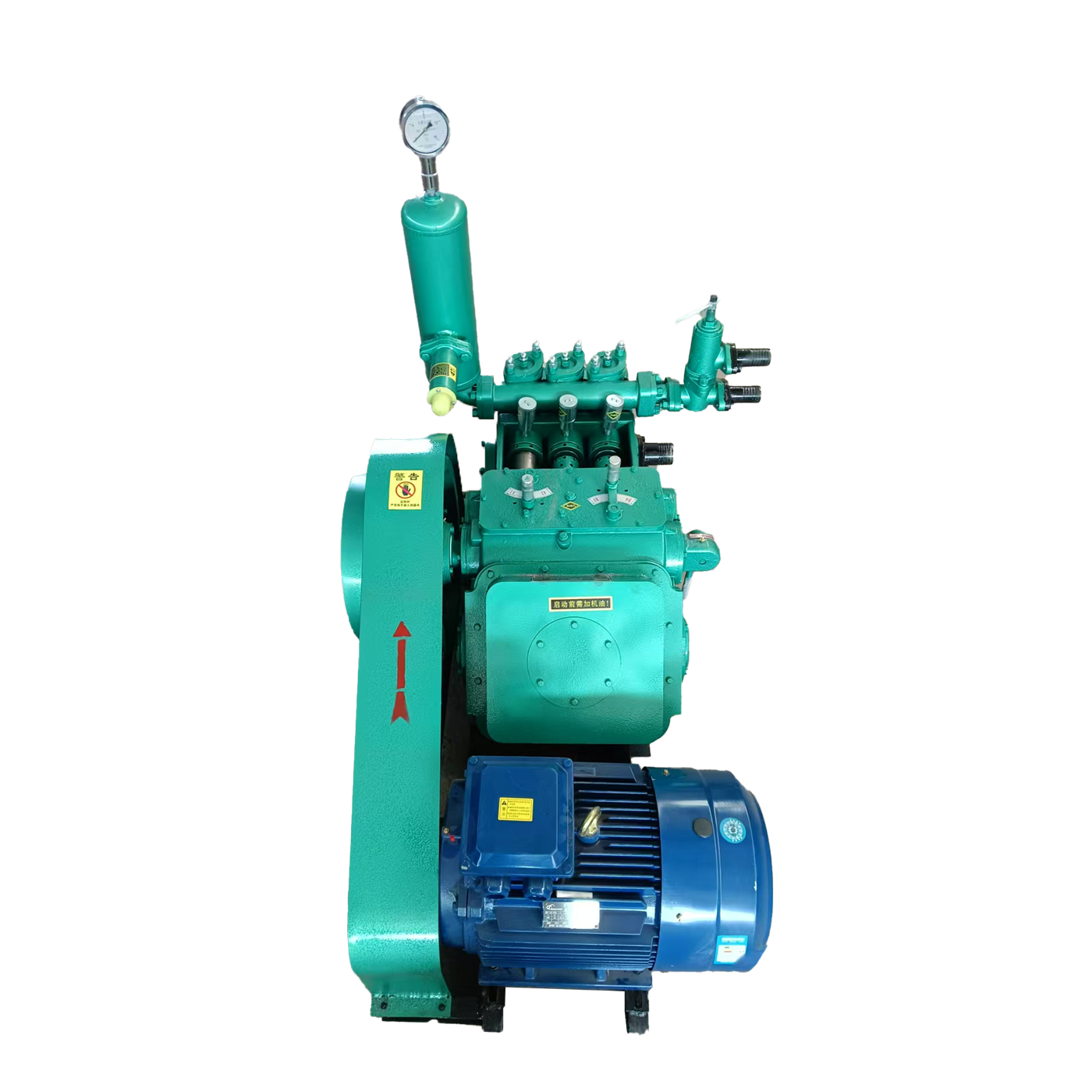

Triplex Mud Pump BW160/10 for Mining and Geological Exploration （Oil and Gas Drilling、Coal Exploration）
1.Powerful Performance
Equipped with a high-pressure triplex design to deliver stable and reliable mud pumping capacity, meeting demanding operational requirements.
2.Triplex Reciprocating Design
Features a three-cylinder piston structure for smooth operation and even displacement, reducing pulsation impact and extending equipment lifespan.
3.Wide Industry Applications
Extensively used in petroleum drilling, shale gas fracturing, mining exploration, pile foundation engineering, and geothermal well development.
4.Wear & Corrosion Resistant
Key components adopt alloy steel + wear-resistant coating, adapting to harsh conditions like high-solid mud and corrosive media.
5.Easy Maintenance
Modular design allows quick replacement of wear parts (pistons, valve assemblies), minimizing downtime and improving operational efficiency.
Parameter
|
model |
BW-160/10 |
|||
|
Type |
Horizontal triplex single-acting reciprocating piston pump |
|||
|
Cylinder diameter (mm) |
70 |
|||
|
Stroke (mm) |
70 |
|||
|
Pump speed (r/min-1) |
200 |
132 |
83 |
55 |
|
Flow rate (l/min) |
160 |
107 |
67 |
44 |
|
Pressure (Mpa) |
2.5 |
4 |
6.5 |
10 |
|
Volumetric efficiency (%) |
100 |
|||
|
Total efficiency (%) |
75 |
|||
|
Input torque (Nm) |
150 |
|||
|
Input speed (r/min) |
610 |
|||
|
Input power (KW) |
11 (Electric Motor) |
|||
|
Input power (KW) |
14.7 (diesel engine) |
|||
|
Water inlet pipe diameter (mm) |
51 |
|||
|
Drain pipe diameter (mm) |
25 |
|||
|
Mass (Kg) |
500 (with Y160M-4-B3 motor) |
|||
|

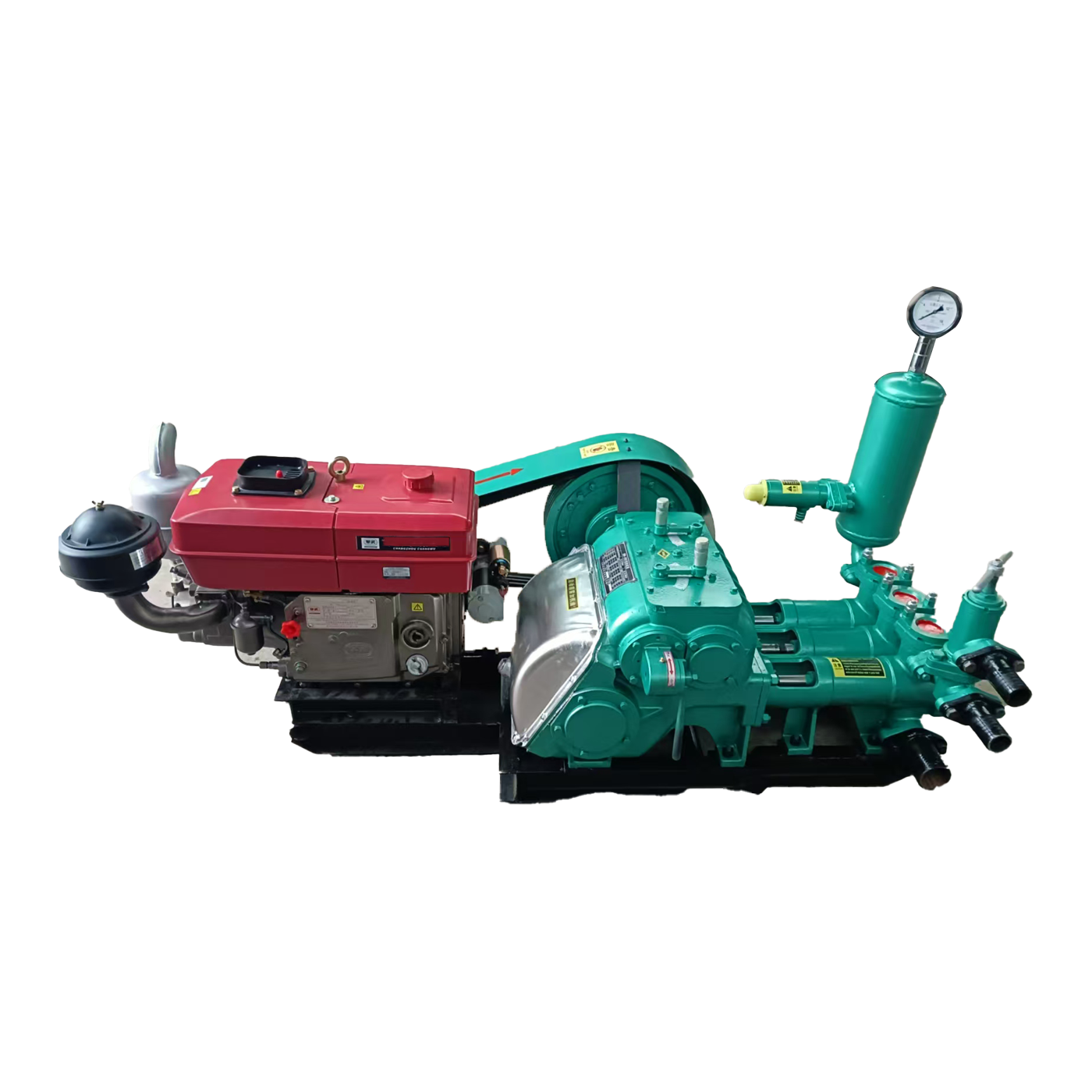

560 (with Changchai ZS1110 diesel engine) |
||||
|
Overall dimensions (length x width x height) |
1525×830×950 (with Y160M-4-B3 motor) |
|||
|
1920×830×1000 (with Changchai ZS1110 diesel engine) |
||||
