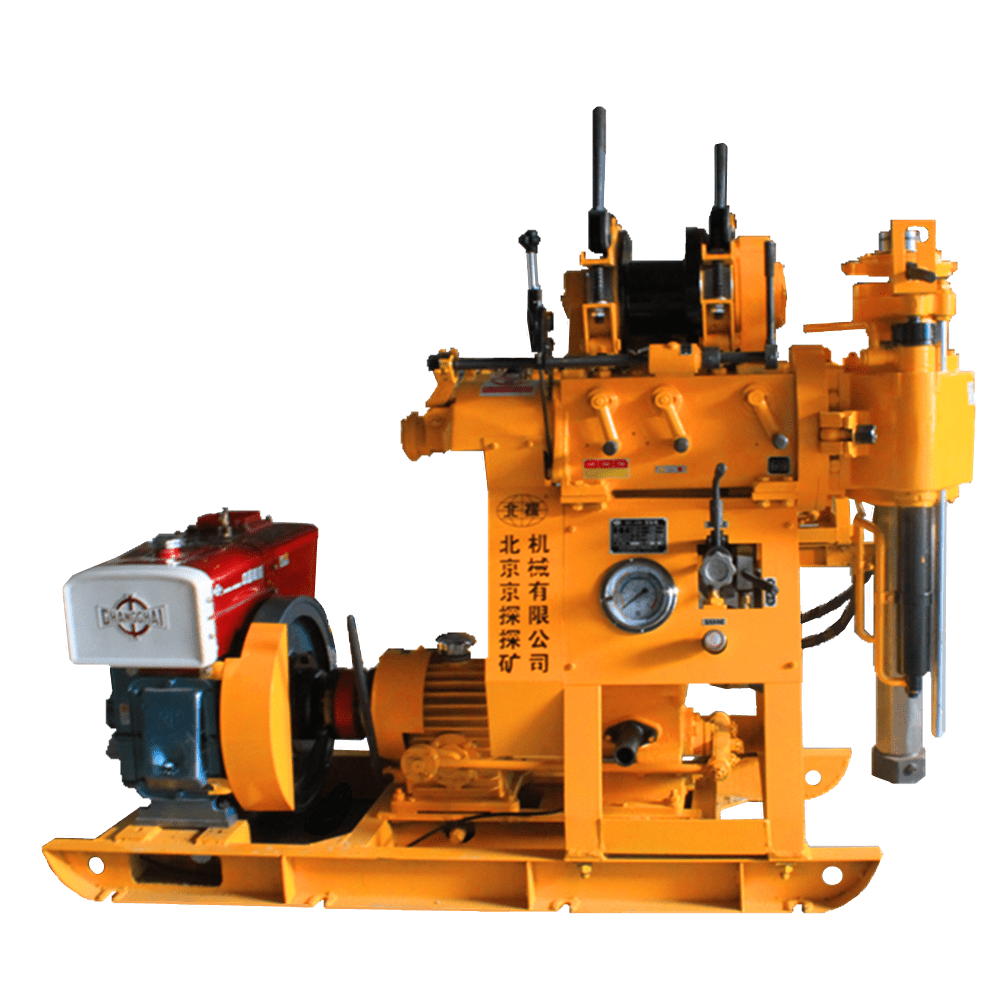

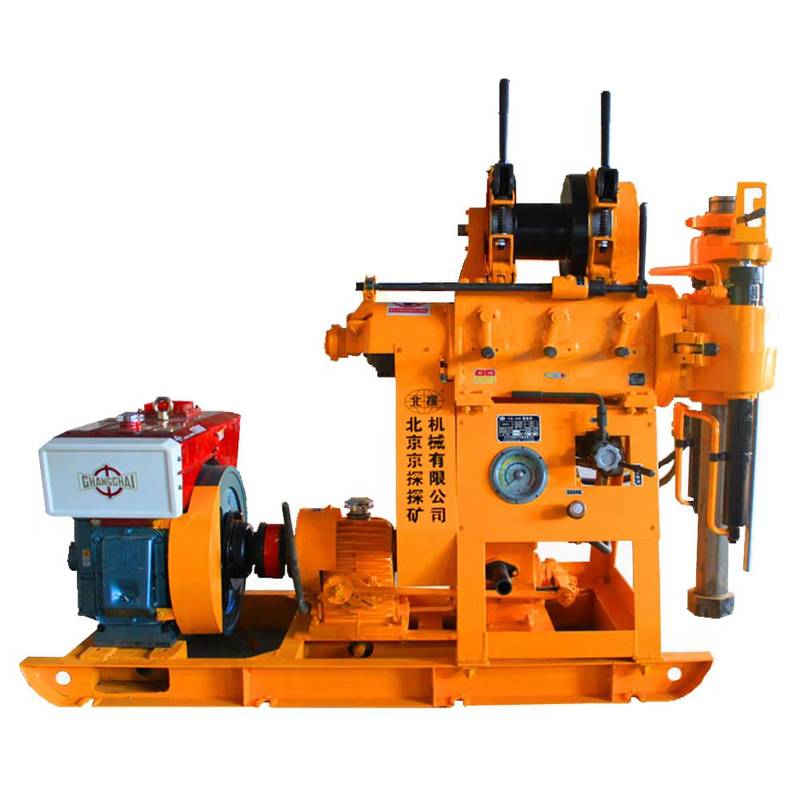

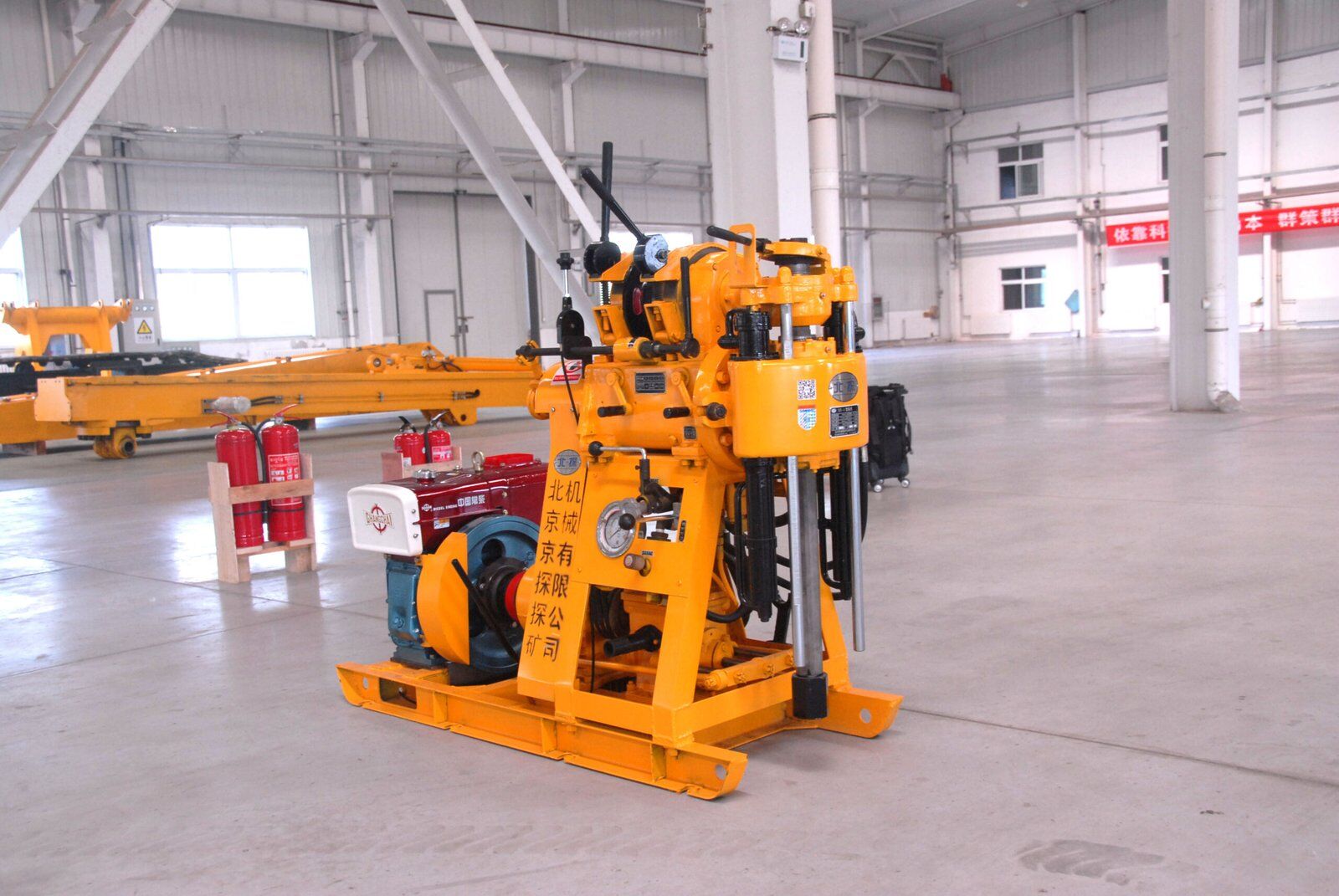

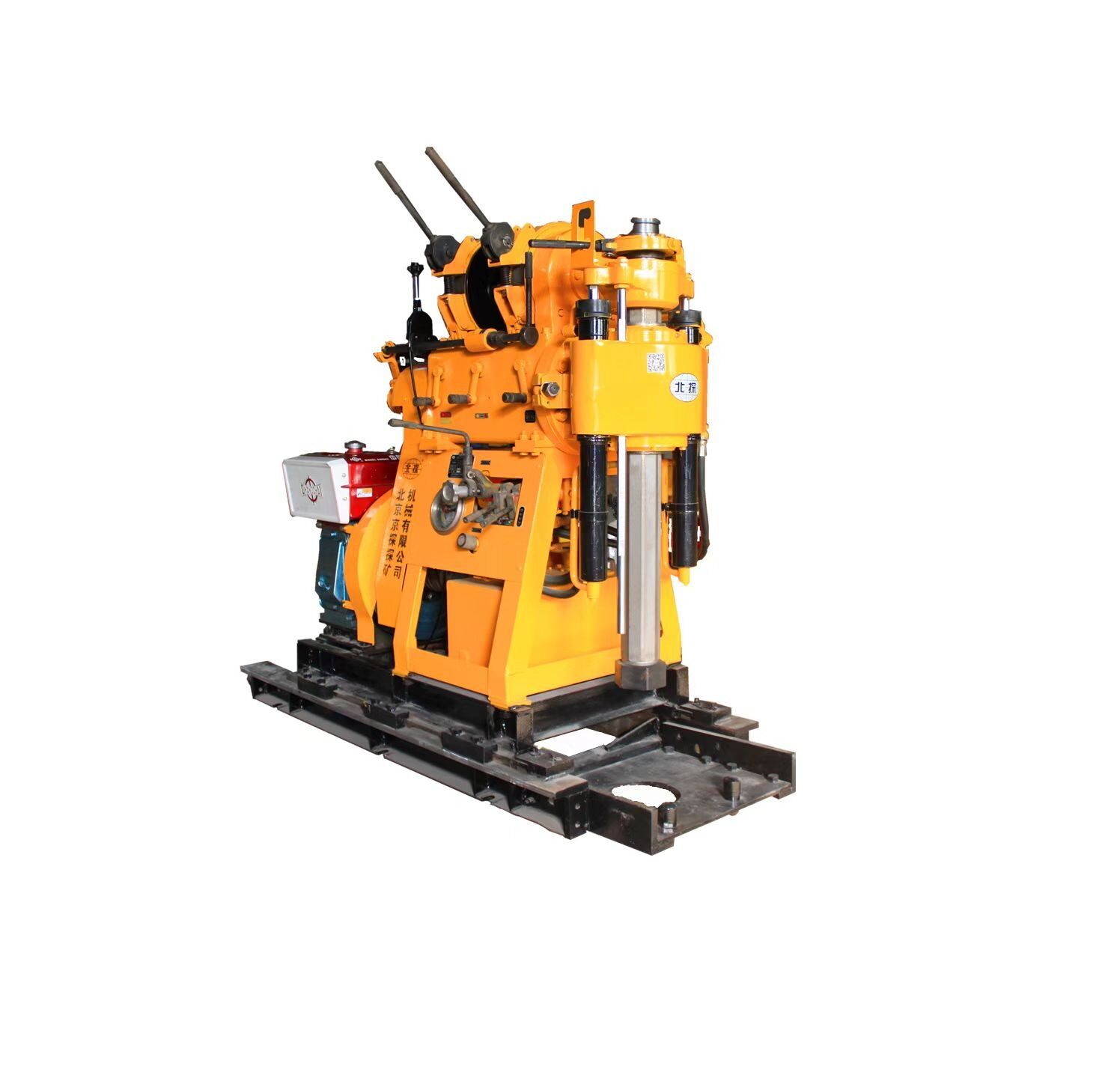

XY – 1 Core Drilling Rig
XY-1 Core Drilling Rig is suited for the applications of general exploration and investigation, geophysical prospecting, road and construction survey, blast holes and other drilling operations.
- With hydraulic automatic feeding device, elevated drilling efficiency.
- The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
- Centralized handles, easy operation, safe and reliable.
- The drilling machine, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.
- Lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
Parameter
| Drill | |
|---|---|
| Drilling depth | 100m |
| Drill rod dia | 42mm |
| Initial hole dia. | 110mm |
| Final hole dia. | 75mm |
| Angle range | 90° – 75° |
| Dimension(L×W×H) | 1640 x 1030 x 1440 (mm) |
| Weight(without power unit) | 500kg |
| Swivel Head | |
|---|---|
| Spindle speed(3-speed) | 142、285、570r/min |
| Spindle stroke | 450mm |
| Upward displacement speed of idling vertical spindle | 0.05m/s |
| Downward displacement speed of idling vertical spindle | 0.067m/s |
| Spindle pull-down max | 15KN |
| Spindle lifting capacity max | 25KN |
| Hoist | |
|---|---|
| Max. lifting capacity(1-speed, single rope) | 10KN |
| Cable volume (number of hoisting drum) | 27m |
| Wire rope dia. | 9.3mm |
| Oil Pump | |
| Model | YBC-12/125 |
| Rated pressure | 12.5Mpa |
| Displacement | 8ml/r |
| Rated speed | 800-2500r/min |
Mud Pump
| Model | Horizontal reciprocating single-acting piston pump |
|---|---|
| Displacement max | |
| Equipped with diesel engine | 95L/min |
| Equipped with motor | 77L/min |
| Allowable working pressure max | 1.2Mpa |
| Continuous working pressure | 0.7Mpa |
| Suction pipe dia | 32mm |
| Discharge pipe dia | 25mm |
Power (diesel engine or motor)
| Model (diesel engine) | S1100A2 |
|---|---|
| Rated power | 12.1KW |
| Rated speed | 2200r/min |
| Model (motor) | Y132M-4 |
| Rated power | 7.5KW |
| Rated speed | 1440r/min |
