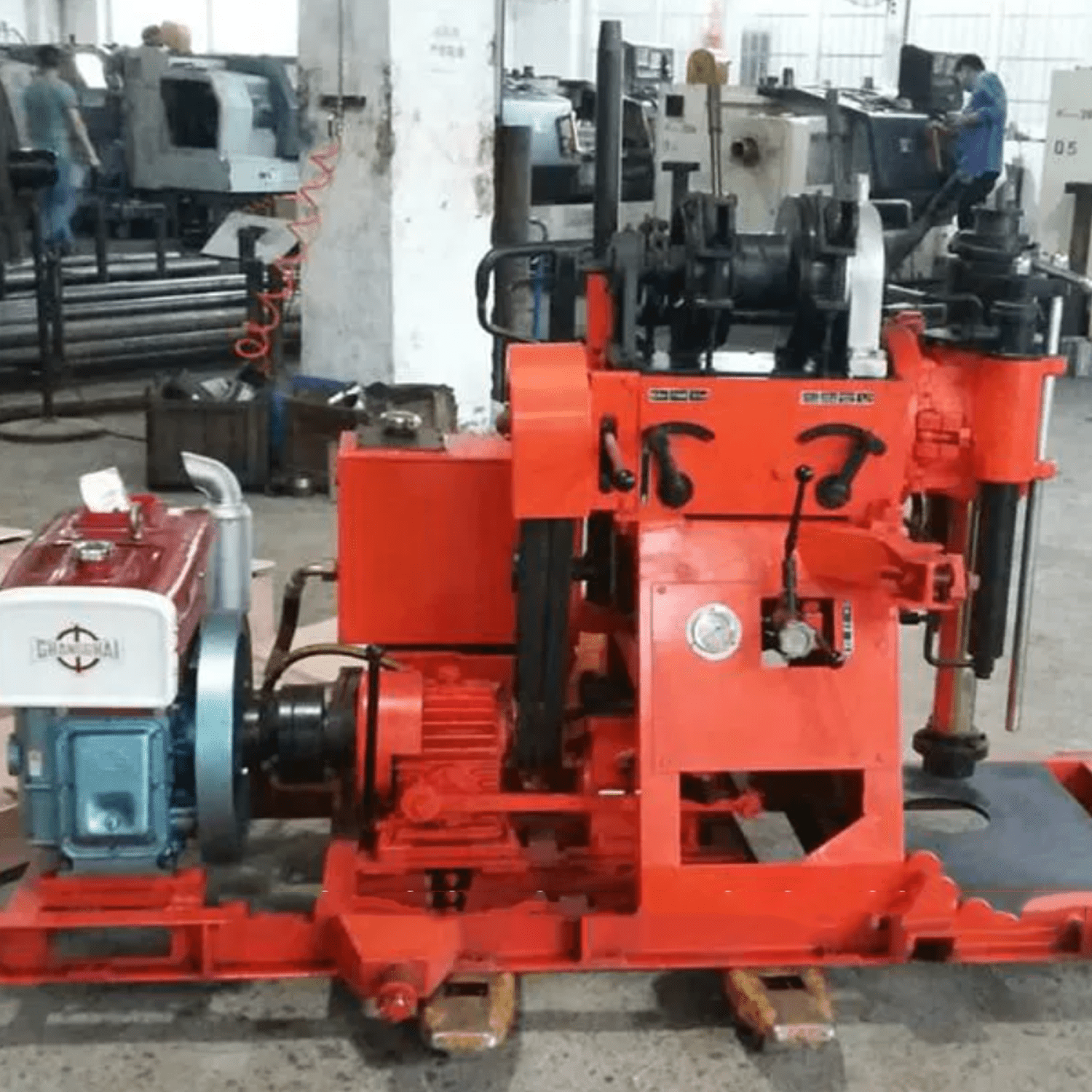

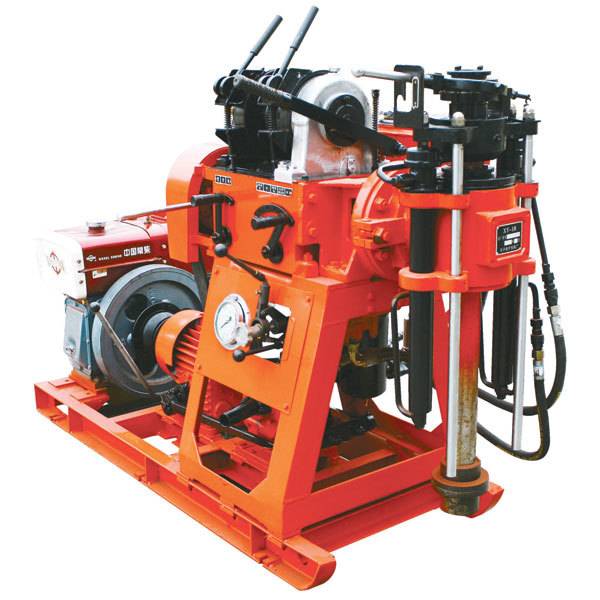

XY-1B Compact Core Drilling Equipment with Pump Integrated

Parameter

Basic Parameters
Drilling Depth	75 120 150m
Drilling Hole Diameter	130 75 46mm
Drill Pipe Diameter	42mm
Gross Weight Of Drilling Machine	480kg
Dimension LWH	18008351150 mm
Rotary Table
Speed	140 305 480 1050 r/min
Maximum Torque	550 N*m
Maximum Cylinder Driving Force	20kN
Maximum Cylinder Lifting Force	30kN
Hoist
Lifting Capacity Single Pipe	10kN
Bobbin Line Speed	0.4 0.87 1.48 3.23 m/s
Rope Diameter	9.3 mm
Rope capacity	18 m
type	Staircase Tower(or Steel Pipe Quadripod)
height	5.9 m
Power Machine
type	Diesel engine
rated power	12.1 kw
weight	155kg
