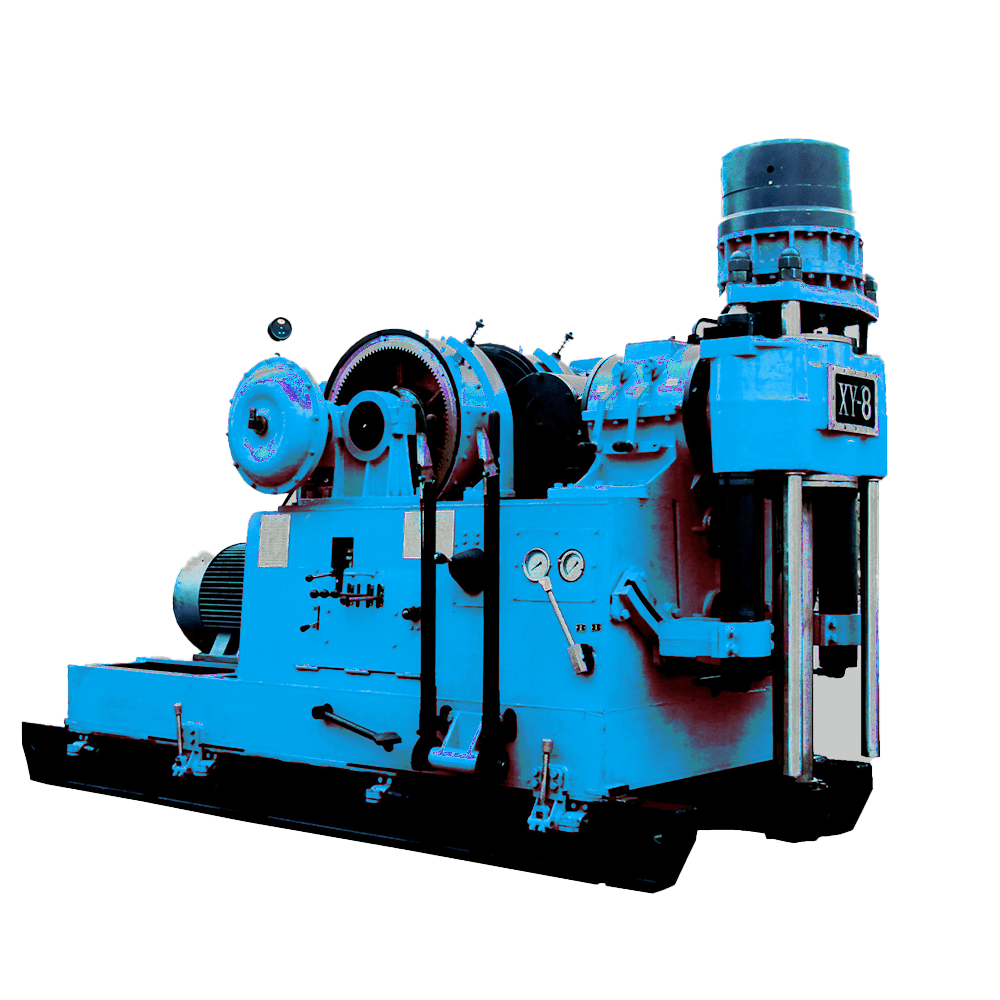

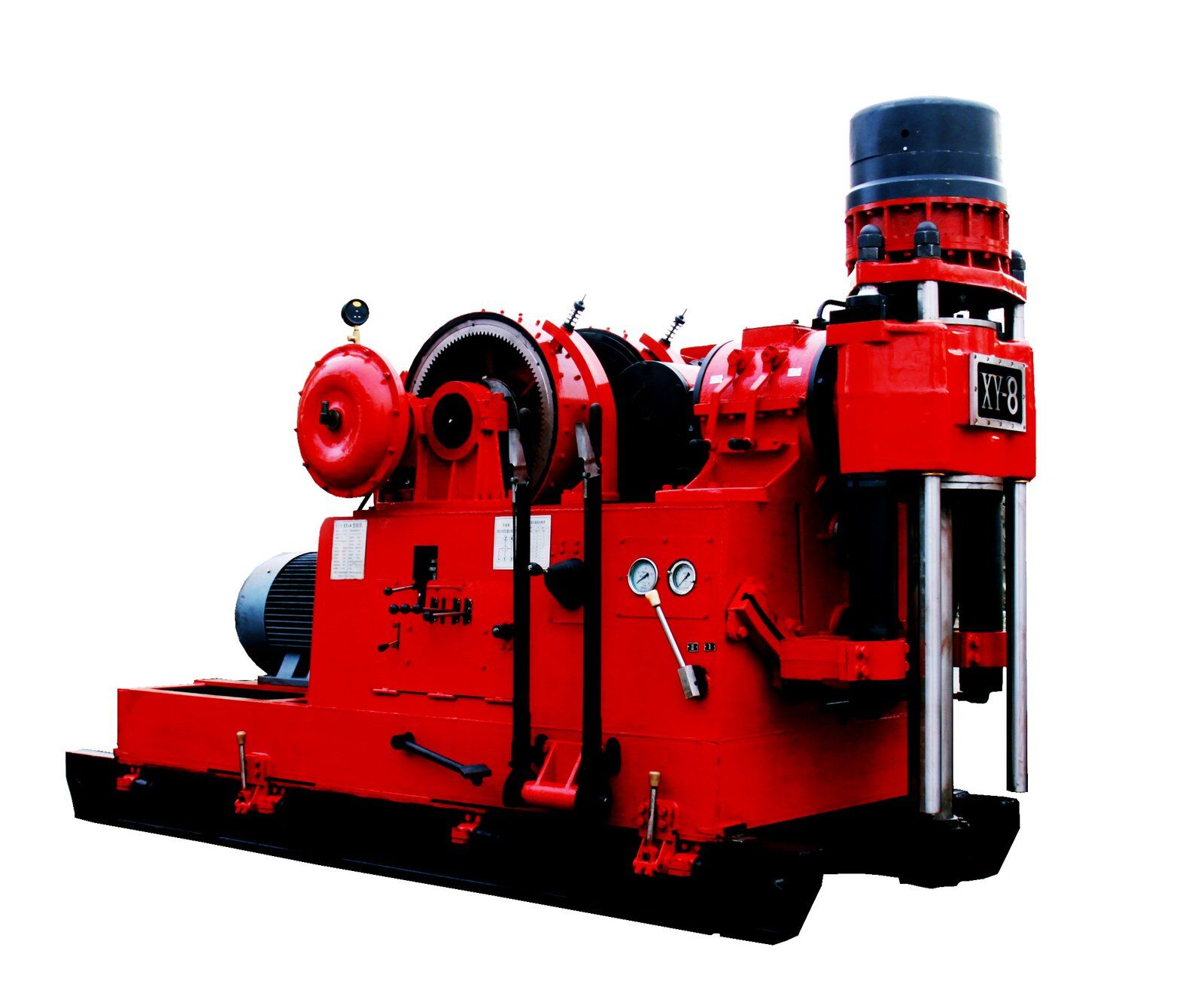

XY-8B Multi-function Core Drilling Rig XY-8B Multi-function Core Drilling Rig
It is mainly used for exploration of metal and non-metal solid deposits, shallow oil and natural gas exploitation, geothermal well exploration, mine tunnel ventilation and drainage, and large-hole foundation pile construction. It can also be used for small-diameter diamond drilling and large-diameter alloy drilling. It can drill vertical holes and inclined holes. It can also be used for hydrology, oil and gas field exploration and engineering drilling.
It is a core drilling equipment mainly using diamond and carbide drilling, which is widely used in geology, metallurgy, coal, hydrology, water wells, engineering and other industries.
Technical features Performance parameters Supporting equipment
Parameter
| Drilling depth (m) | 1000-3000 |
| Drill pipe diameter under machine (mm) | Φ50.5 Φ60 Φ73 Φ89 Φ114 |
| Vertical spindle drilling speed | Forward 75 136 212 380 220 379 589 1058 Reverse 51 142 |
| Feed cylinder top force (KN) | 300 |
| Feed force of feed cylinder (KN) | 142 |
| Feed cylinder stroke (mm) | 1000 |
| Maximum lifting force of winch single rope (KN) | 130 |
| Winch lifting speed (m/min) | 0.57 1.09 1.693 2.90 1.761 3.034 4.713 7.58 |
| Wire rope diameter (mm) | φ21.5 |
| Rope capacity (m) | 160 |
| Moving cylinder stroke (mm) | 690 |
| Motor power | 90KW Y2280M-4 |
| Diesel engine power | 134KW YC6B180D |
| Main engine weight (t) | 7.8 |
| Dimensions (L×W×H) (mm) | 4049×1754×2593 |
