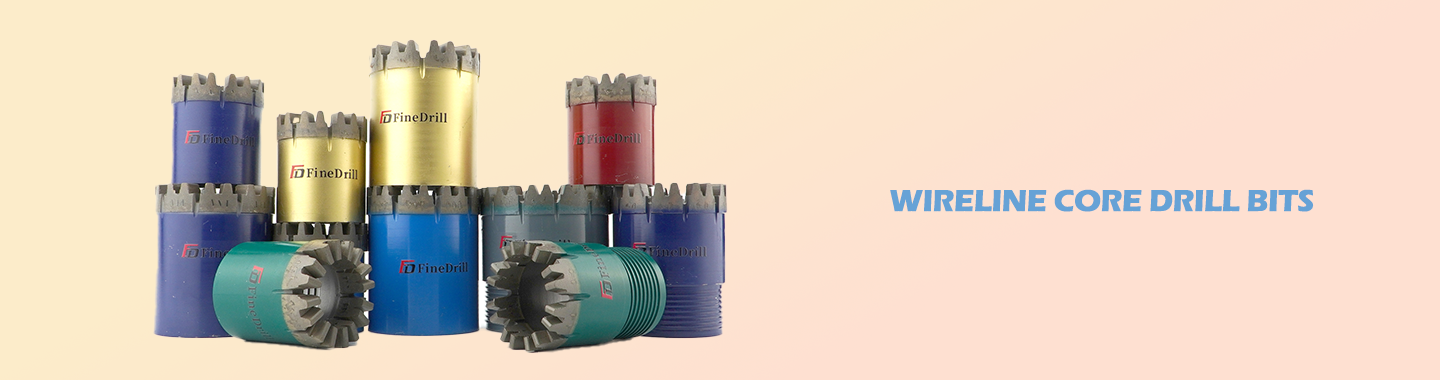

Wireline Core Drill Bits Wireline Core Drill Bits
Home / Wireline Core Drill Bits

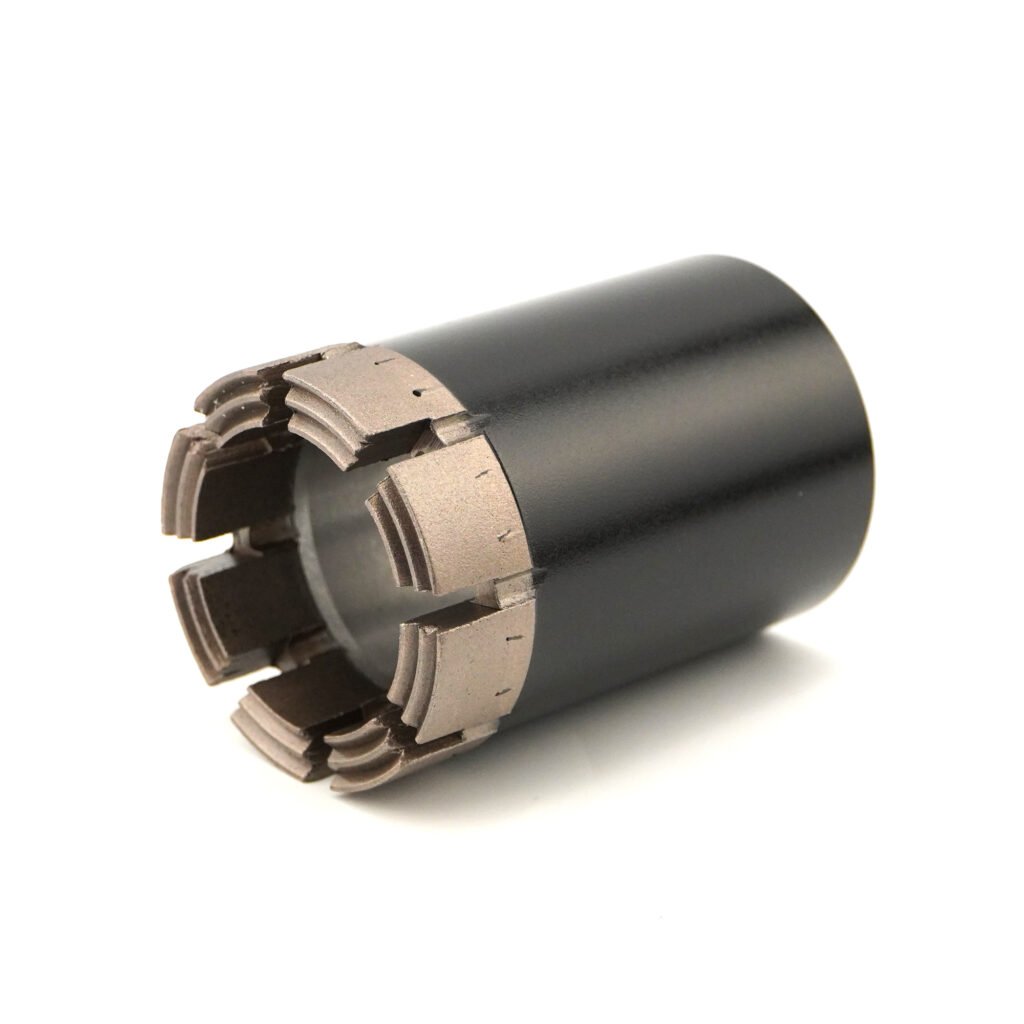

DSC01820 Wireline Core Drill Bits
Information Sheet
model NQ NQ+1 NQ+2 HQ PQ NTW NTW+1 NTW+2 HTW
Outer diameter (mm) 75 76 77 95 122 75 76 77 95
Inner diameter (mm) 47.5 47.5 47.5 63.5 85 56 56 56 71
Blade height (mm) 15 15 15 15 15 15 15 15 15
Net weight(KG) 0.9 0.95 0.95 2 2.7 0.75 0.8 0.9 1.4
Tooth bottom (mm) 67.5 67.5 67.5 85.5 112 71 71 71 89
Tooth surface (mm) 66 66 66 84 109 69.5 69.5 69.5 887
Pitch (mm) 6.35 6.35 6.35 6.35 6.35 6.35 6.35 6.35 6.35
finedrill

Drill Faster. Break Harder. Conquer Tougher

FineDrill offers high-performance drill bits and rigs designed to deliver exceptional speed and power. Engineered to penetrate the hardest formations and slippery terrains with ease, our tools ensure efficiency, durability, and reliability for your toughest drilling challenges.
